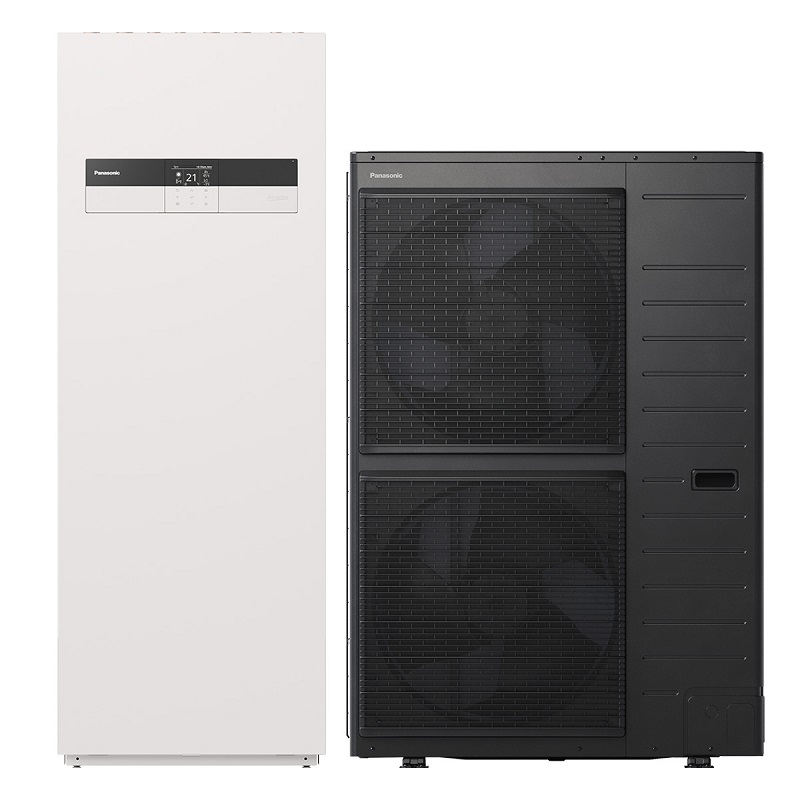

Pompe à chaleur Panasonic KIT-ADC12K6E5

Panasonic Heat Pump KIT-ADC12K6E5

Ideal for ensuring continuous heating performance even at very low temperatures. This series can maintain the heating performance of the heat pump even at an outdoor temperature of −20 °C (at a flow temperature of 35 °C) without additional electric heating.

Energy efficiency: A+++ in heating at 35 °C and A+ in DHW / Variable speed "A" water pump / Stainless steel DHW tank with U-Vacua™ insulation panel / Integrated flow meter.
Flexibility: 598 x 600 floor plan / Integrated magnetic water filter.
Comfort: Constant capacity down to -20 °C / operating range down to -28 °C / 60 °C hot water even at an outdoor temperature of -10 °C.
Control: Optimized user interface and improved functions (2-zone control, bivalent control).
Connectivity: Aquarea Smart and optional Cloud Service and integration into BMS projects.
The new generation Aquarea K
A revolution in design, efficiency, connectivity and sustainability.

Heat pump type
Aquarea High Performance
Heat pump system
Number of phases Single phase
Heating and cooling
Refrigerant R32
Heating capacity / COP (air +7 °C, water 35 °C) 12.10 / 4.78 kW / COP
Heating capacity / COP (air +7 °C, water 55 °C) 12.00 / 2.96 kW / COP
Heating capacity / COP (air +2 °C, water 35 °C) 11.50 / 3.44 kW / COP
Heating capacity / COP (air +2 °C, water 55 °C) 9.20 / 2.25 kW / COP
Heating capacity / COP (air −7 °C, water 35 °C) 10.10 / 2.74 kW / COP
Power Heating capacity / COP (air −7 °C, water 55 °C) 8.40 / 1.97 kW / COP
Cooling capacity / EER (air 35 °C, water 7 °C) 10.70 / 2.68 kW / EER
Cooling capacity / EER (air 35 °C, water 18 °C) 10.70 / 3.92 kW / EER TC Water 35 °C / Water 55 °C
Average climate: Seasonal energy efficiency 4.58 / 3.33 (180 / 130) SCOP (η,s %)
Average climate: Energy efficiency class A+++/A++
Warm climate: Seasonal energy efficiency 6.47 / 4.34 (256 / 171) SCOP (η,s %)
Warm climate: Energy efficiency class A+++ / A+++
Cool climate: seasonal energy efficiency 4.31 / 3.26 (169 / 127) SCOP (η,s %)
Cool climate: energy efficiency class A++/A++

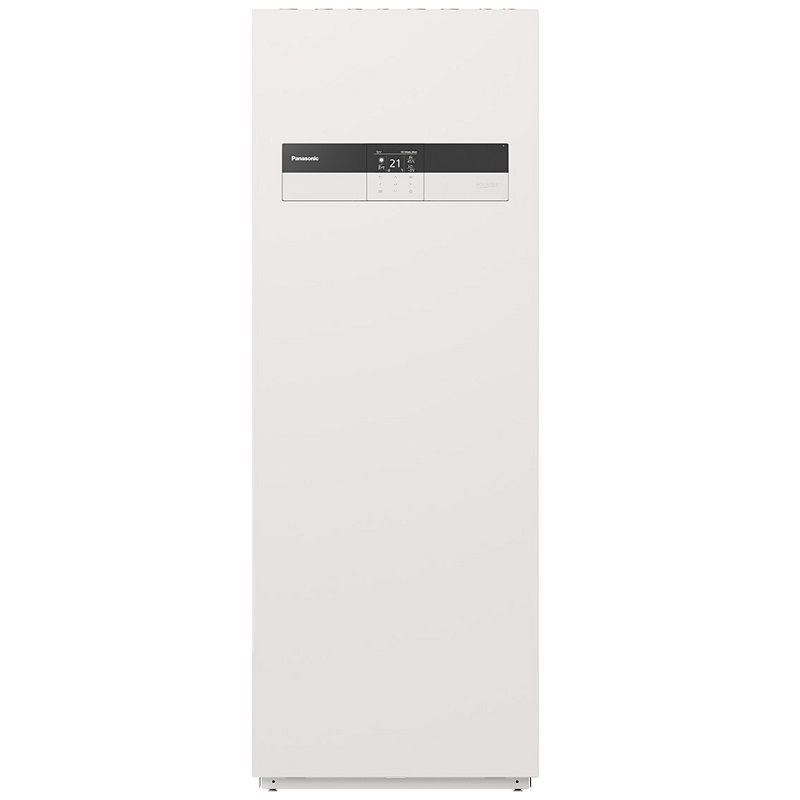

Indoor unit
Sound pressure (heating/cooling) 33 / 33 dB(A)
Indoor unit dimensions (H x W x D) 1642x599x602
Indoor unit net weight 101 kg
Connector for water pipe connection R 1¼ inch
Class A pump: Number of revolutions
Variable speed
Class A pump: Power consumption (min. / max.) 145 W
Heating water flow rate (∆T = 5 K, 35 °C) 34.4 l/min
Water volume 185 litres
Maximum hot water temperature 65 °C
Interior material Stainless steel
TV storage efficiency (ErP) average/warm/cool environment A+ / A / A
TV storage – average climate according to ErP, η / TV COP 100 / 2.50 ηwh %/TV COP
TV storage – warm climate according to ErP, η / TV COP 116 / 2.90 ηwh %/TV COP
TV storage – cold climate according to ErP, η / TV COP 80 / 2.00 ηwh %/TV COP

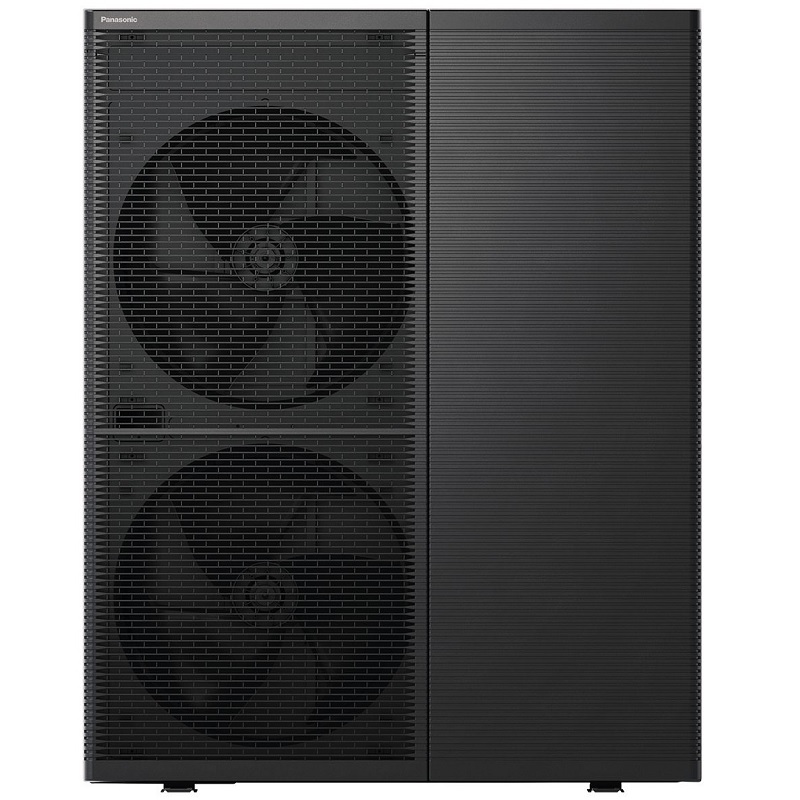

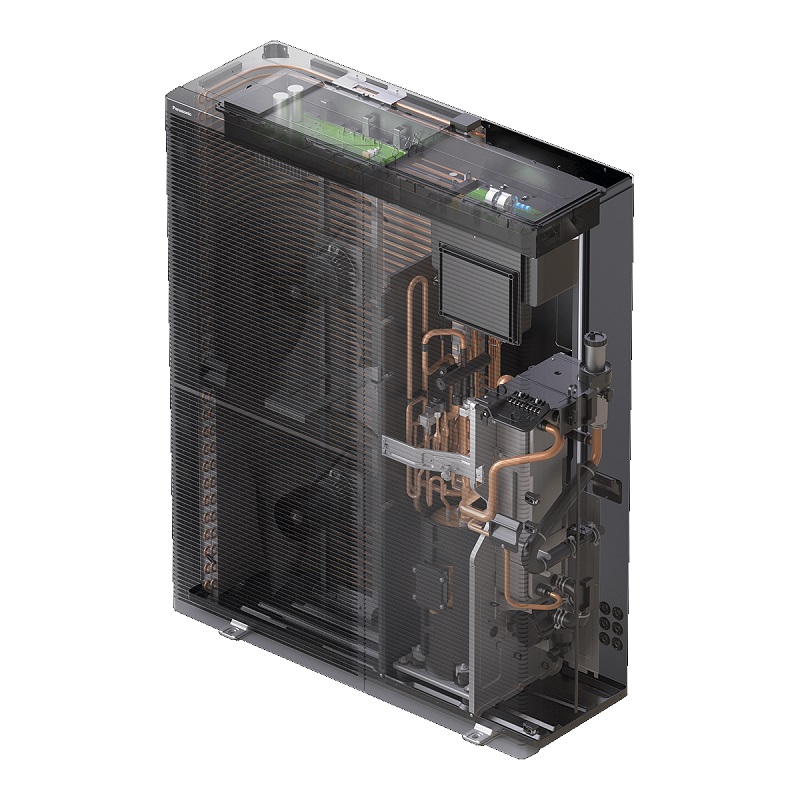

Outdoor unit
Acoustic performance: Heating 65 dB(A)
Outdoor unit dimensions (H x W x H) (L x W) 1340 x 900 x 320
Net weight of outdoor unit 88 kg
Refrigerant (R32) / CO₂ equivalent 1.6 / 1.080 kg/t
Pipe length range - standard / maximum 3~30m
Pipe diameter (Liquid / Gas) 1/4 (6.35) / 1/2 (12.7) inch [mm]
Pipe length with pre-charged refrigerant 10 m
Additional volume of gaseous refrigerant 30 m
Height difference (indoor j. / outdoor j.) 20 m
Operating range - outdoor environment: Heating -25 ~ +35 °C
Operating range - outdoor environment: Cooling +10 ~ +43 °C
Water outlet (heating / cooling) 20 ~ 60 / 5 ~ 20 °C
Data electric
Electric auxiliary heater 6 kW
Recommended current protector, 1/2 30 / 30 A supply
Recommended minimum cable cross-section, 1/2 connection 3 x 4.0 / 3 x 4.0 mm²
