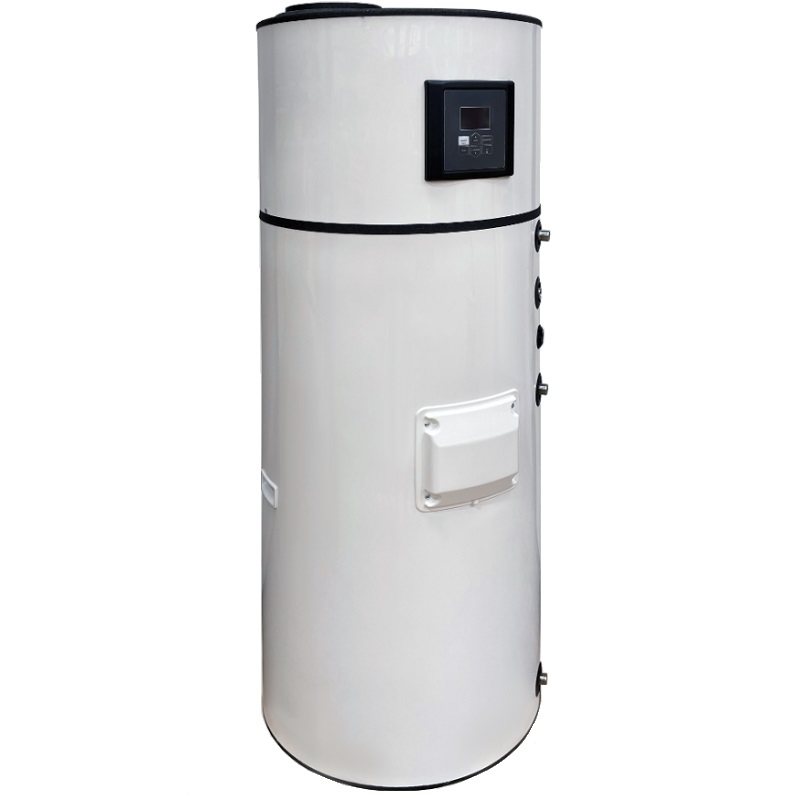

Mitsubishi ATW-ACS-DV160PROD Heat Pump
160-liter capacity
Duplex 2205 stainless steel
Maintenance-free
ModBus management
More robust
Touchscreen controller
Integrated into the 60x60 module
Quiet
Different operating modes
Hot water up to 65°C in BC mode
Polymer construction
Equipment type: Air/water heat pump for ACS
ACS capacity: 160 liters
Dimensions Ø/h 530/1531
Material - DX2205 stainless steel
Insulation - 50 mm high-density polyurethane
Maximum temperature: 80°C
Maximum pressure: 7 bar
kWh/24h 0.98
Protection: IPX1
Power supply: 220-240 VAC / single-phase / 50 Hz
Power consumption (average/max): 254/450 W
Electric heater power input: 1500 W
Average thermal output (BW): 835 W
Maximum current: 2.3+6.8 A (with electric support heater)
Maximum DHW temperature (BW): 65 °C
Maximum DHW temperature (Resist.): 75 °C
Operating conditions (heat source): °C Min - 5°C / Max 40°C
Refrigerant: -/kg R290 / 0.15
Consumption profile: L
Preheating time: 1 h:min 07:15
COP1 - 3.63
Energy efficiency class: 1 - A++
Energy efficiency: 1% 150
Annual energy consumption: 679
COP - 3.2
Energy efficiency class: 2 - A+
Energy efficiency: 2%
Annual energy consumption: 2 kWh
Energy efficiency class: 3
Energy efficiency: 3%
Annual energy consumption: 3 kWh
Airflow: 195 m3/h
Dimensions: H.1531 × D.550
Weight: 53 kg
