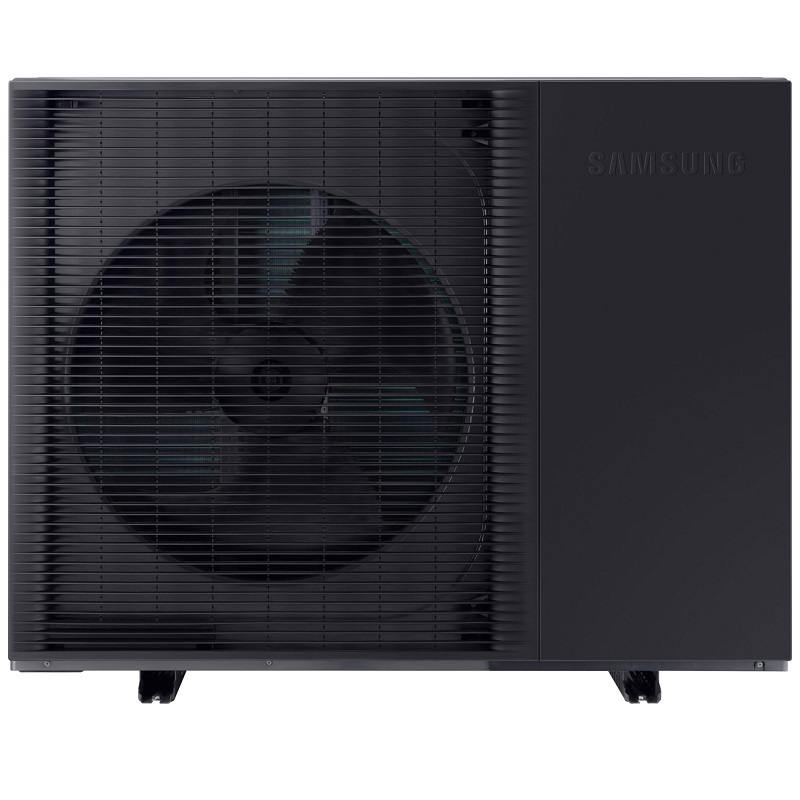

Samsung AE160CXYBEK/EU 16.0 kW Air Source Heat Pump

Samsung AE160CXYBEK/EU 16.0 kW Air Source Heat Pump

Thanks to a combination of innovative noise reduction technologies, the EHS Monobloc HT Quiet heat pump operates quietly with noise levels as low as 35 dBA, using a 4-stage quiet mode.

The outdoor unit of this heat pump features a double-layer sound insulation system equipped with the patented Groove Grid Felt design, which effectively blocks and absorbs noise produced by compression parts and vibrations.

Hot Water Temperature up to 75°C
Many older homes still use radiators that require a hot water temperature of 65°C or higher to efficiently heat rooms.
The new EHS Monobloc R290 is capable of consistently providing hot water up to 75°C for home heating. It can therefore be a replacement solution for the heating system in older homes that relied on gas boilers for their heating needs.

Designed to work with R290
EHS Monobloc R290 has a much lower global warming potential (GWP) than other refrigerants, only three.

New EU regulations on fluorinated gases mean that refrigerants will not have to exceed a GWP of 150 from 2025. With EHS Monobloc R290, Samsung offers an improved and future-proof environmental solution for residential environments. Compared to other solutions using other refrigerants, the EHS Monobloc R290 uses R290 as the refrigerant instead of the R32 that is still commonly used.

Due to the use of R290 refrigerant, the unit's internal components have been adapted compared to those of a standard packaged heat pump. These adaptations justify the separation of the R290 refrigerant from the rest of the system.

Smart Connectivity

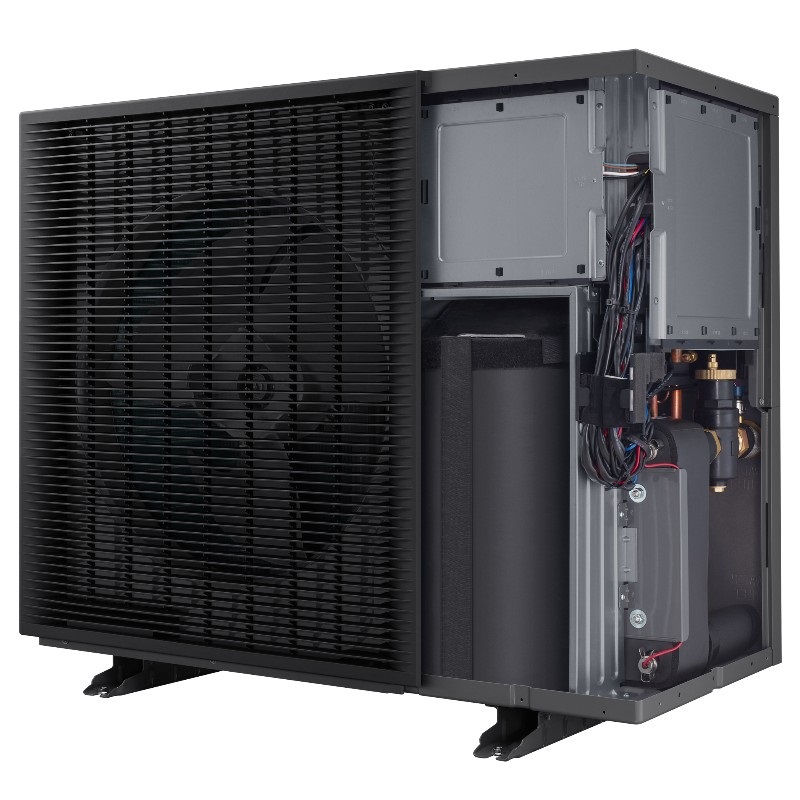

SmartThings Energy offers the best home energy management systems and delivers real energy savings by providing important information, energy-saving automation, and assistance so users can achieve net-zero home energy consumption. Once connected, users can monitor their energy consumption and potentially reduce it thanks to the economy mode, a hydraulic module integrated into the outdoor unit (expansion tank, water pump, flow meter).

Wi-Fi: Integrated
Power: 16 kW / 54,000 BTUs
Nominal Heating Power: 16 kW
Nominal Cooling Power: 14 kW
SEER / Nominal Cooling Energy Label: 5
Operating Mode: Heating and Cooling
Integrated Storage Tank: No
Gas: R290
Color: Black, Onyx Black
Voltage: Single-phase
Water Energy Class 35ºC: A+++
Water Energy Class 55ºC: A++
SCOP - Water Outlet 35ºC: 4.7
SCOP - Water Outlet 55ºC: 3.55
Min Sound Pressure dB(A): 35
Max Water Outlet Temperature: 70ºC
Heating time: 75ºC
Warranty: 3 years
DHW hydraulic connection: G1"
Back-up heater: 150 W
Outdoor unit dimensions: 1270 x 1018 x 530 (mm)
Weight: 154 kg
