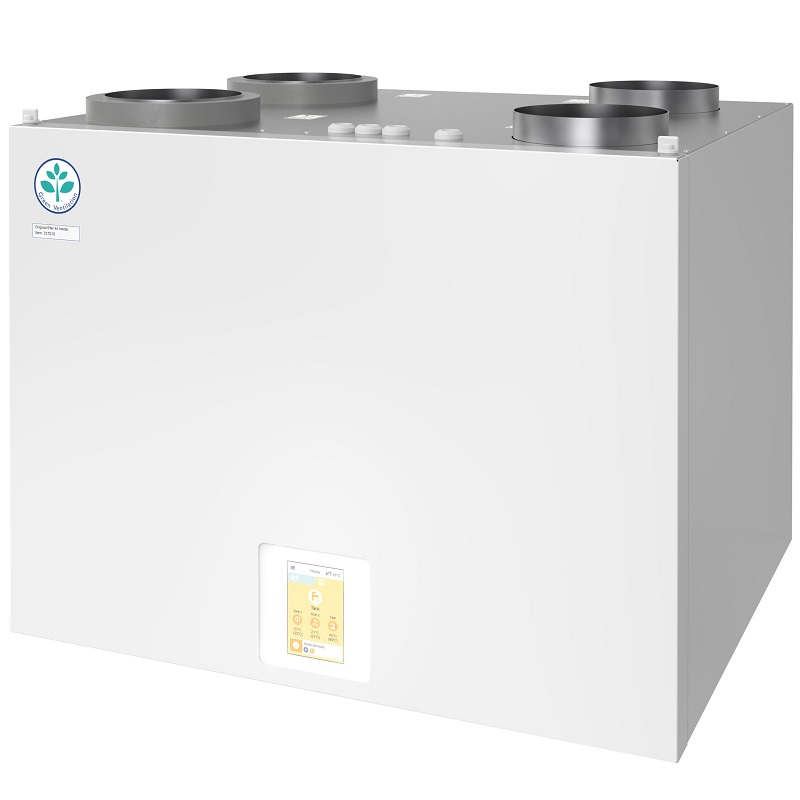

Panasonic PAW-A2W-V-R heat recovery unit
Heat recovery unit designed for ventilated areas up to approximately 140 m2
Energy-efficient rotary heat exchanger with fans with EC technology
Humidity transfer function to minimize condensation in supply air in winter
Control via touch screen and start-up wizard for easy commissioning
Modbus communication via RS-485
Possibility to control Aquarea H and J series heat pumps from the PAW-A2W-VENTA control panel if both units are connected via the Modbus interface (the PAW-AW-MBS-H and PAW-VEN-ACCPCB interfaces are necessary).
Main characteristics
Designed for surfaces up to 140 m2
High efficiency rotary heat exchanger
EC Technology Fans
Moisture transfer function to minimize condensation
Touch screen control
Modbus via RS-485
Possibility of integrating the Aquarea ASHP range
Power consumption: 176W
Maximum air volume at 100 Pa ESP: 292 m³/h
Minimum outside temperature: -20°C
Nominal air volume at 50 Pa ESP: 204 m³/h
Sound level: 40 (dB(A)
Indoor unit voltage supply: 220-240 V / 1Ph / 50Hz, N, PE
Specific Fan Performance: 1.24 (SFP) at 204 m³/h
Heat recovery rate: 84%
Dimensions: 598x450x500 (WxHxD mm)
Weight 46 kg
