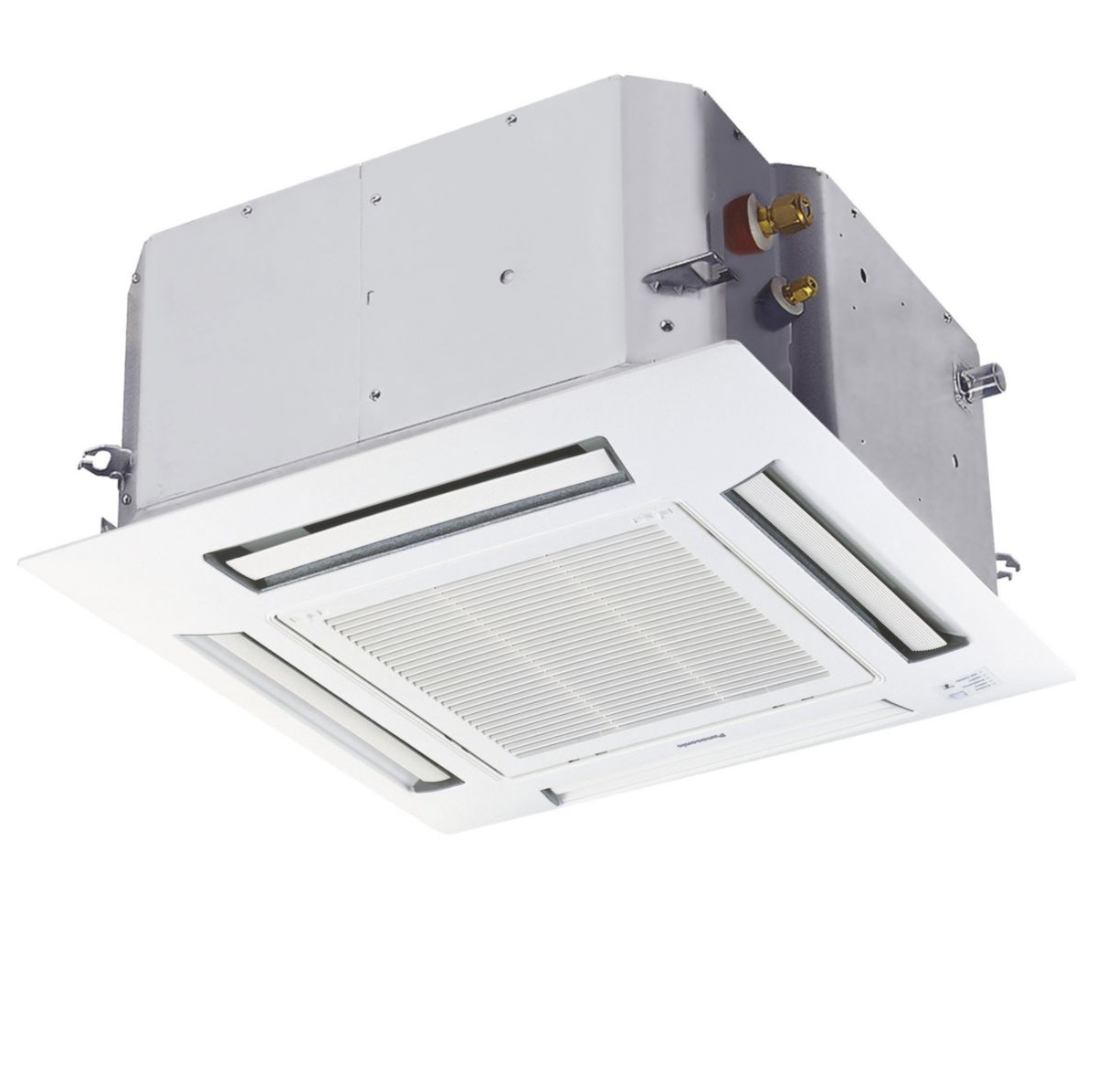

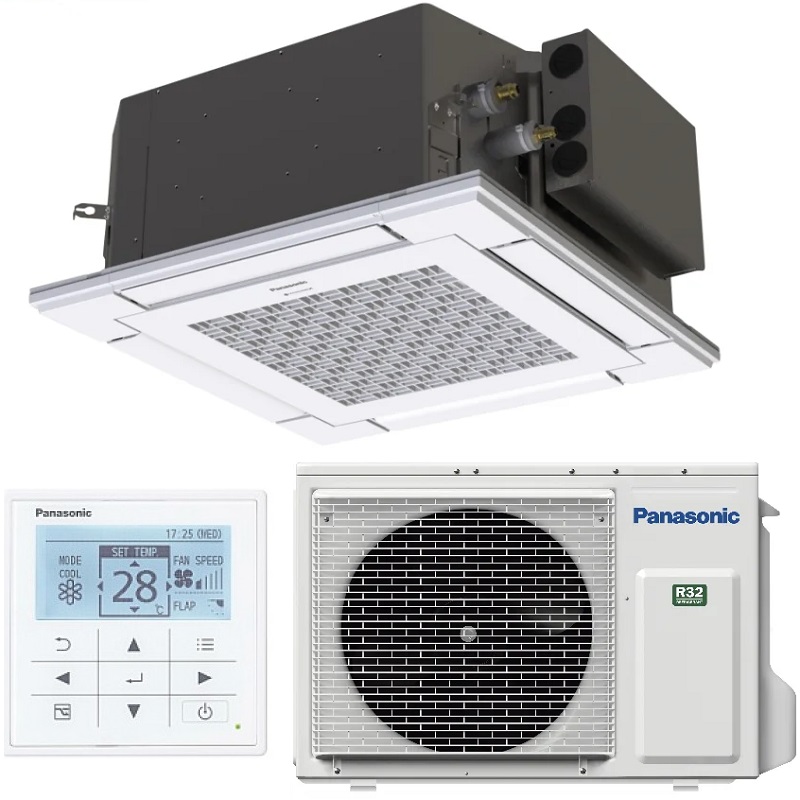

Panasonic KIT-35PY3Z5 Cassette Air Conditioner
Panasonic KIT-35PY3Z5 3.5kW small (60x60) cassette air conditioner, the ideal solution for commercial spaces, the new Panasonic PY3 60x60 cassette model has been redesigned for a lighter and more compact profile, with a subtle flat decorative panel for seamless integration into a variety of interiors, improved functionality, compact and elegant, ideal for ceiling spaces of only 250mm depth and a 30mm visible panel. The PY3 cassette model is equipped with an integrated suction pump and float switch for greater efficiency and noise reduction.
Optimal air distribution, the PY3 cassette model offers advanced airflow control with 4 motors, resulting in perfect air distribution without direct airflow, reducing the feeling of cold drafts.
Anti-allergy filtration
Performance in cooling mode
Nominal power (min-max) 3.4 ( 0.9 - 4.8 ) kW
Energy label cooling A+
Power consumption 0.89 kW
Operating range -10 / 43 °C
Performance in heating mode
Nominal power (min-max) [kw] 4.5 ( 0.90 - 6.20 )
Energy label heating A
Power consumption 1.42 kW
Coefficient of performance COP / SCOP 3.17 / 3.8
Operating range -10 / 24 °C
Indoor unit characteristics
Acoustic P at 1 m PV/MV/GV 23 / 26 / 34 dB(A)
Dimensions LxHxD 260 x 575 x 575 + (51 x 700 x 700)
Net weight 18 + 2.5 kg front

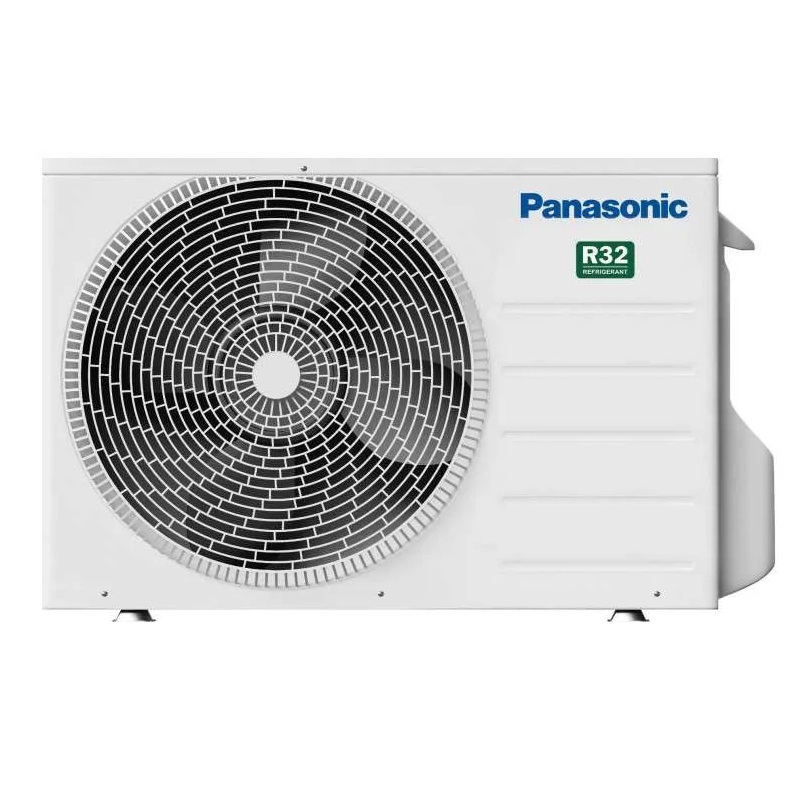

Outdoor unit characteristics
Acoustic P at 1 m 45 dB(A)
Liquid diameter 1/4 inch
Gas diameter 1/2 Inch
Precharged length 10
Maximum length / height difference 20/15 m
Outdoor unit cable 3 x 2.5 mm²
Indoor, outdoor connection cable 4 x 1.5 to 2.5 mm²
Electrical protection 16 A
R32 refrigerant
Dimensions LxHxD 875 x 695 x 320
Net weight 48 kg
