Panasonic JET AIR ST. KIT-140MC5ZH8 Ducted Air Conditioner
Panasonic Big PACi ducted air conditioning systems with R32 refrigerant have been developed to meet the demand for easy rebuilding options thanks to the 3-wire connection, they also allow integration into an IoT solution.
Key Features
Big PACi piping unit offers high static pressure and 20.0-25.0 kW output

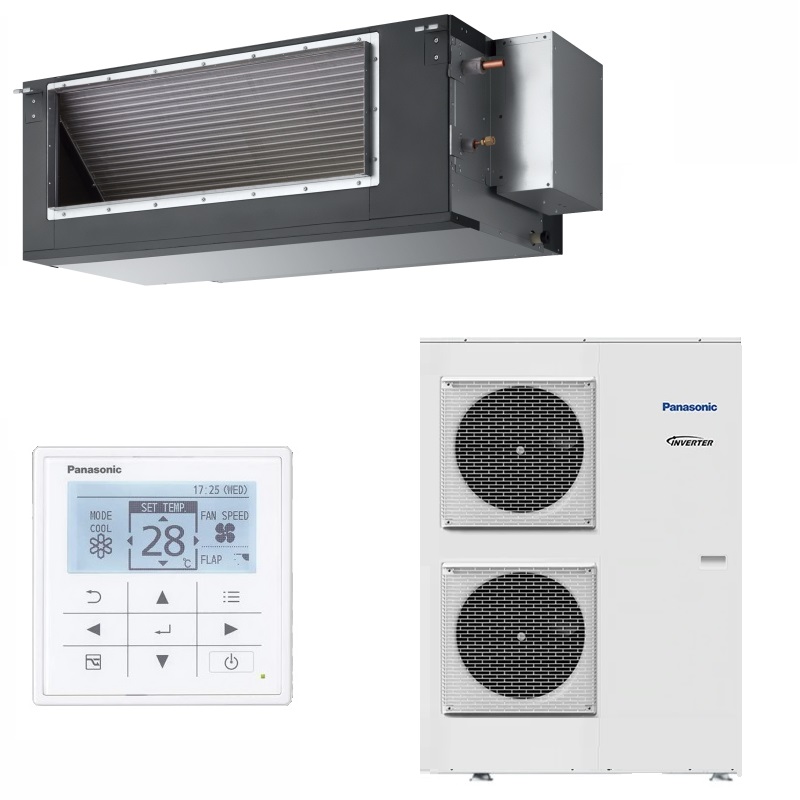

Indoor and outdoor unit

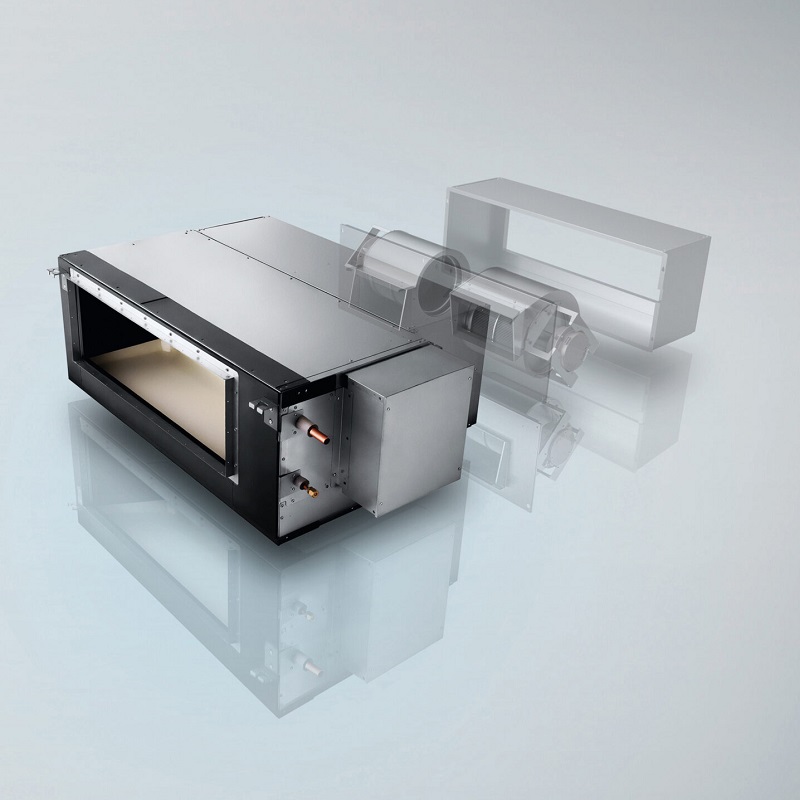

Simple piping connection with split construction piping unit
High external static pressure, maximum setting 200 Pa
R32 refrigerant
Panasonic brand
Cooling: 14.0 (3.3 – 16.0) kW
Heating: 16.0 (3.3 – 18.0) kW
Air flow (l/sec) H/M/L: 1002/835/701

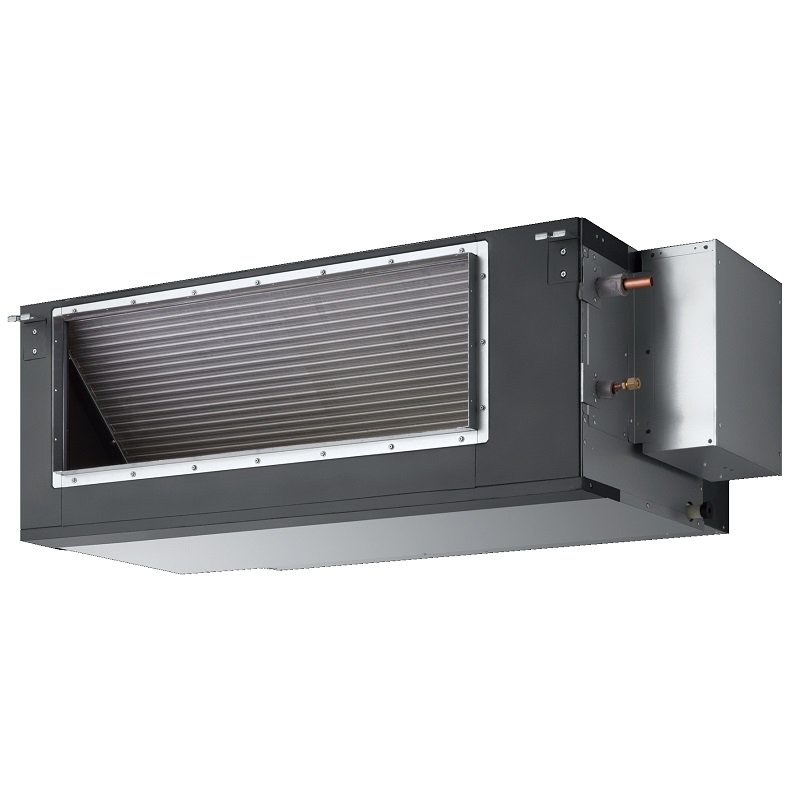

Internal dimensions H x W x D: 360 x 1200 x 700 mm

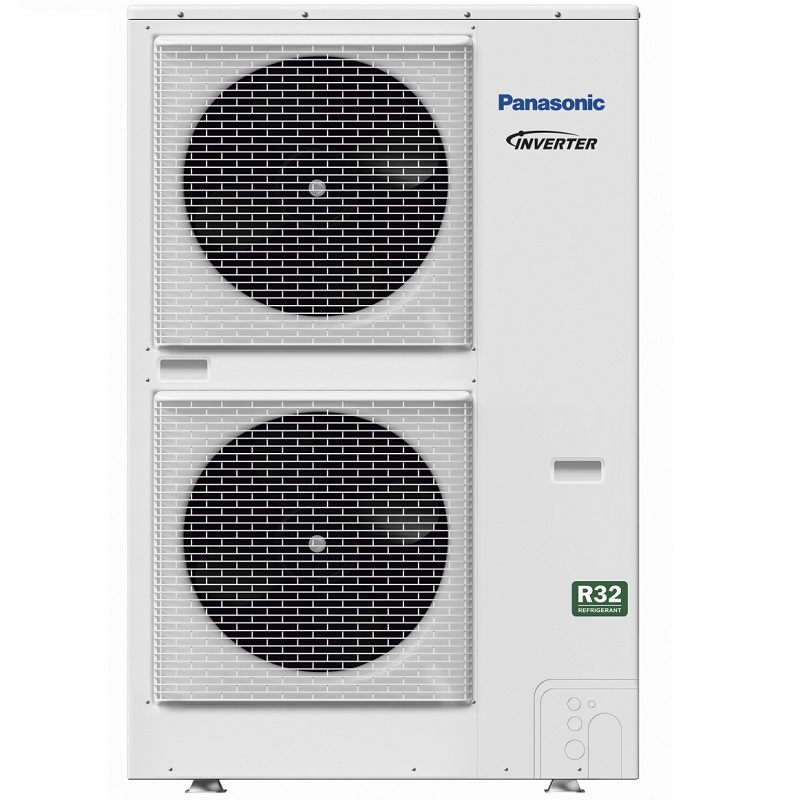

External dimensions H x W x D: 1416 x 940 x 340 mm
Power supply: 240/1/50 (V/Ph.Hz)
Power Supply Connection: Outdoor
Max. Outdoor Amperage: 32.7
Refrigeration Type: R32
Piping Dimensions (Liquid/Gas): 9.52/15.88 mm
Min./Max. Pipe Length: 5/85 (m)
Pre-Charged Pipe Length: 30 (m)
Additional Reference Charge): 45 m g/m
Max. Elevation – OR above / below IU (m): 30 / 15
Supply Air Connection H x W: 336 x 1024 mm
Return Air Connection H x W: 336 x 1024 mm
Weight Indoor / Outdoor: 41 / 99 kg
