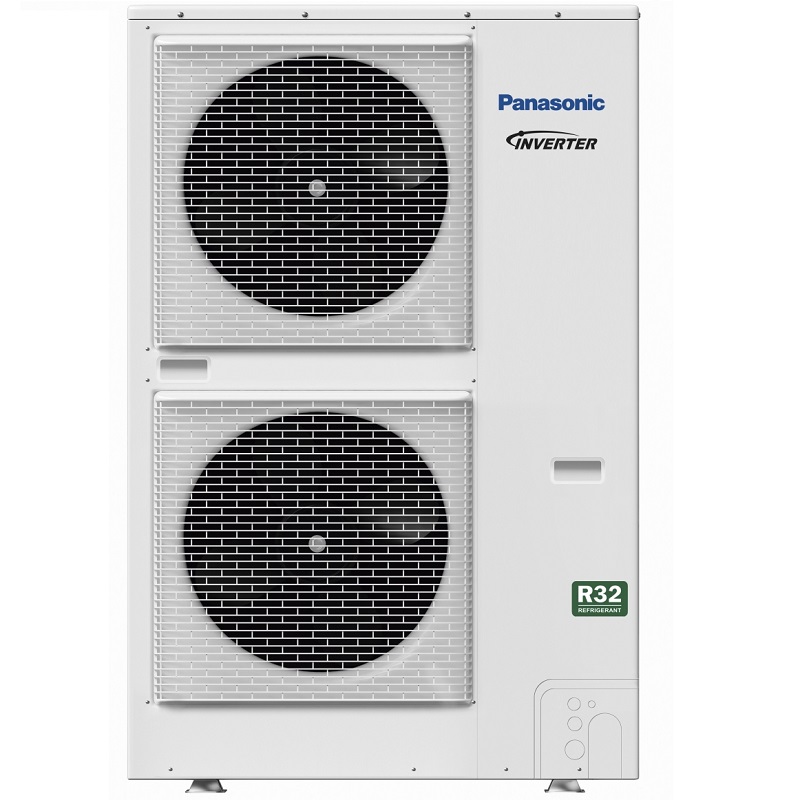

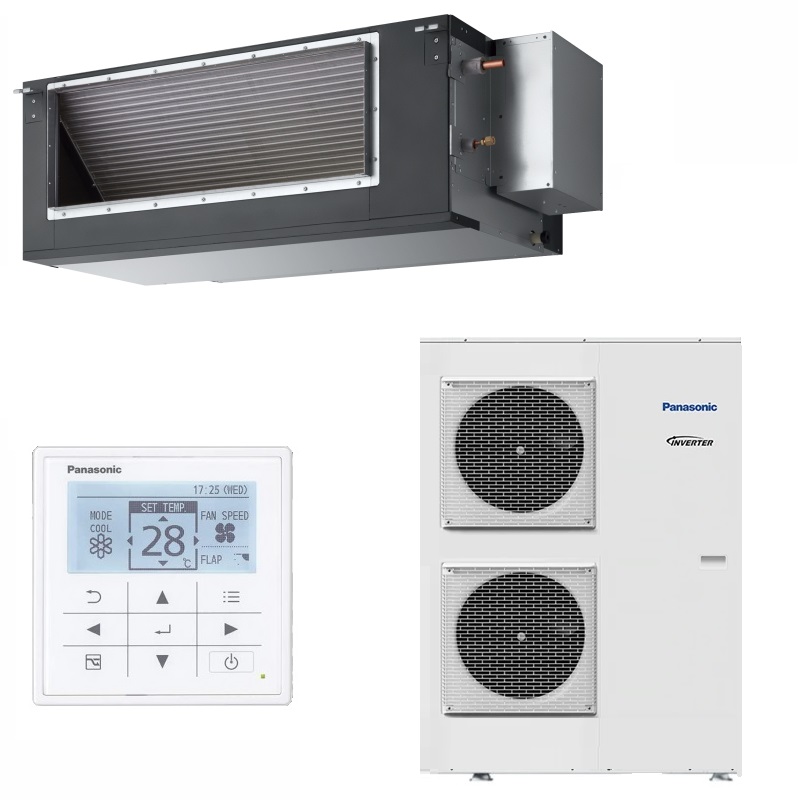

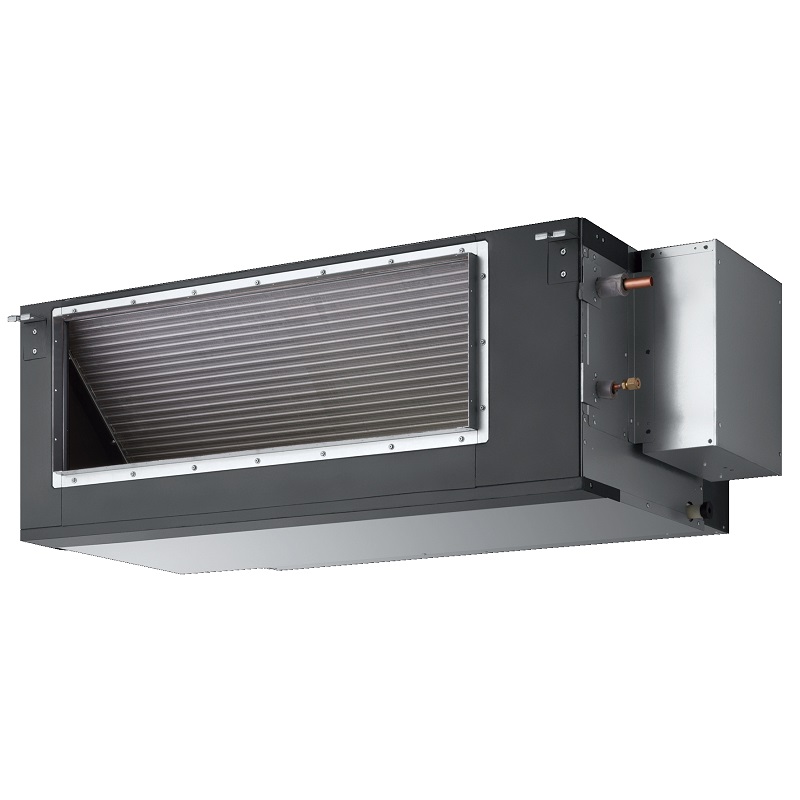

Panasonic JET AIR ST. KIT-140MC5ZH8 Ducted Air Conditioner
Panasonic Big PACi ducted air conditioners with R32 refrigerant have been developed to meet the demand for easy rebuild options with 3-wire connection, and also allow integration into an IoT solution.
High ESP (External Static Pressure) up to 150 Pa
Auto-learning function for required static pressure on site during commissioning (standard wired remote control is required)
DC fan for better efficiency and control
Built-in drain pump
Simple Datanavi support app with remote control (CZ-RTC5B)
Twin Split Options

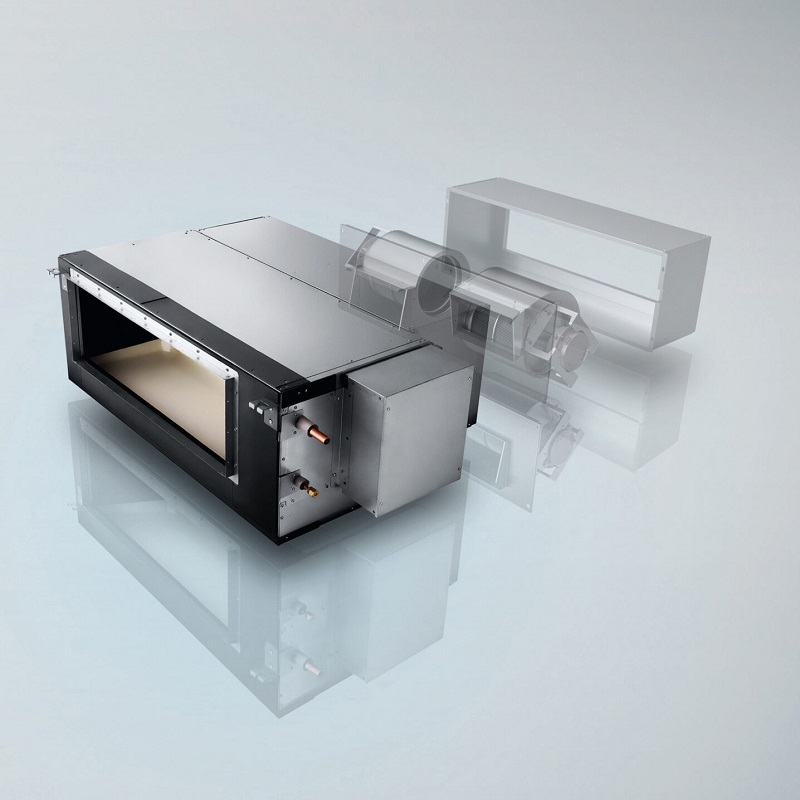

Easy connection and control of external fan or ERV using PAW-FDC connector on indoor unit PCB. The external device can be controlled by the remote control of the Panasonic indoor unit
PAC Elite High Static 14.0 kW
EER (Nominal) (1) 3.32 W/W
COP (Nominal) (1) 3.60 W/W
Refrigerant (R32) / CO2 Eq. kg
EER (Nominal) (1) 3.32 W/W
COP (Nominal) (1) 3.60 W/W
External static pressure (Nominal) (4) Pa 100
External static pressure (Min) (4) Pa 10
External static pressure (Max) (4) Pa 150
Indoor sound pressure (Hi) (5) dB(A) 40
Indoor sound pressure (Med) (5) dB(A) 36
Indoor sound pressure (Lo) (5) dB(A) 33
Elevation difference (int/ext) 3.30 meters
