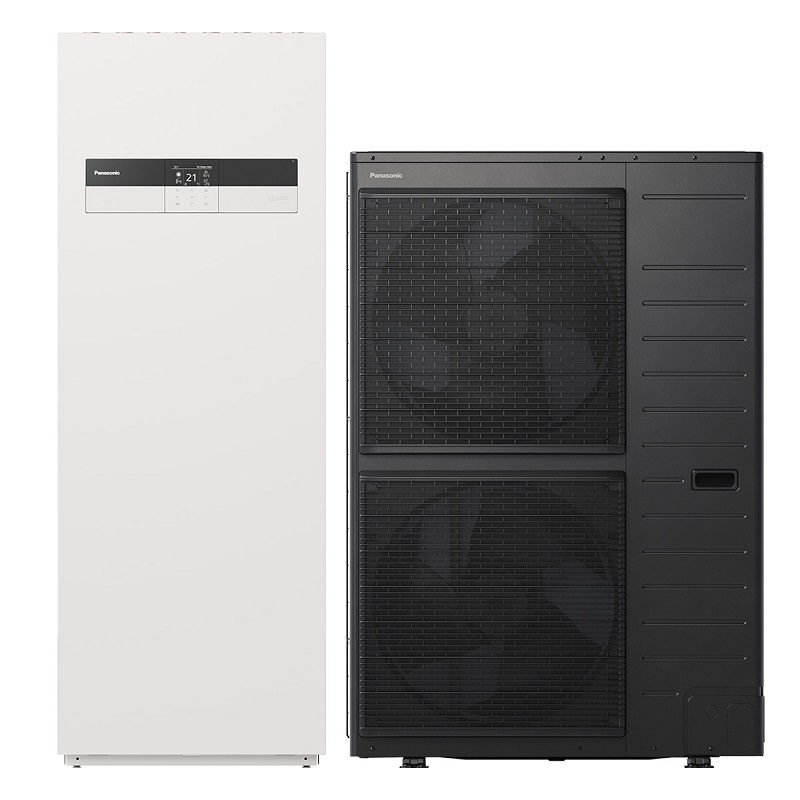

Panasonic Heat Pump KIT-AXC16K9E8

Panasonic Heat Pump KIT-AXC16K9E8

Ideal for ensuring continuous heating performance even at very low temperatures. This series can maintain the heating performance of the heat pump even at an outdoor temperature of −20 °C (at a flow temperature of 35 °C) without additional electric heating.

Energy efficiency: A+++ in heating at 35 °C and A+ in DHW / Variable speed "A" water pump / Stainless steel DHW tank with U-Vacua™ insulation panel / Integrated flow meter.
Flexibility: 598 x 600 floor plan / Integrated magnetic water filter.
Comfort: Constant capacity down to -20 °C / operating range down to -28 °C / 60 °C hot water even at an outdoor temperature of -10 °C.
Control: Optimized user interface and improved functions (2-zone control, bivalent control).
Connectivity: Aquarea Smart and optional Cloud Service and integration into BMS projects.
The new generation Aquarea K
A revolution in design, efficiency, connectivity and sustainability.

Aquarea generation K is a revolutionary low-energy system for heating, cooling and hot water preparation, which is characterized by optimal performance. This model is ideal for new installations and well-insulated homes.

Harmony between technology and home
In everyday life, technology adapts to you and the environment around you without overemphasizing the importance of devices or interfaces. Just as the air is always around you, even when you are not paying attention to it, Panasonic technology is also adapted to your environment and your life.

Less frequent maintenance thanks to the factory-installed magnetic filter
Easy access to hydraulic parts
Operation without additional heating at −25 °C 3)
The possibility of supplying hot water at a temperature of 60 °C even at an outdoor temperature of −10 °C
Protection of the heat exchanger of the outdoor unit with Bluefin coating for adverse environmental conditions

Heat pump system
Number of phases Three-phase
Refrigerant R32
Heating capacity / COP (air +7 °C, water 35 °C) 16.00 / 4.38 kW / COP
Heating capacity / COP (air +7 °C, water 55 °C) 16.00 / 2.72 kW / COP
Heating capacity / COP (air +2 °C, water 35 °C) 16.00 / 3.10 kW / COP
Power Heating capacity / COP (air +2 °C, water 55 °C) 16.00 / 2.07 kW / COP
Heating capacity / COP (air −7 °C, water 35 °C) 16.00 / 2.39 kW / COP
Heating capacity / COP (air −7 °C, water 55 °C) 16.00 / 1.71 kW / COP
Cooling capacity / EER (air 35 °C, water 7 °C) 13.40 / 2.64 kW / EER
Cooling capacity / EER (air 35 °C, water 18 °C) 13.40 / 2.64 kW / EER TC Water 35 °C / Water 55 °C
Average climate: seasonal energy efficiency 4.46 / 3.31 (176 / 129) SCOP (η,s %)
Average climate: Energy efficiency class +++/A++
Warm climate: Seasonal energy efficiency 5.88 / 4.09 (232 / 160) SCOP (η,s %)
Warm climate: Energy efficiency class A+++ / A+++
Cool climate: Seasonal energy efficiency 3.83 / 3.20 (150 / 125) SCOP (η,s %)
Cool climate: Energy efficiency class A++/A++

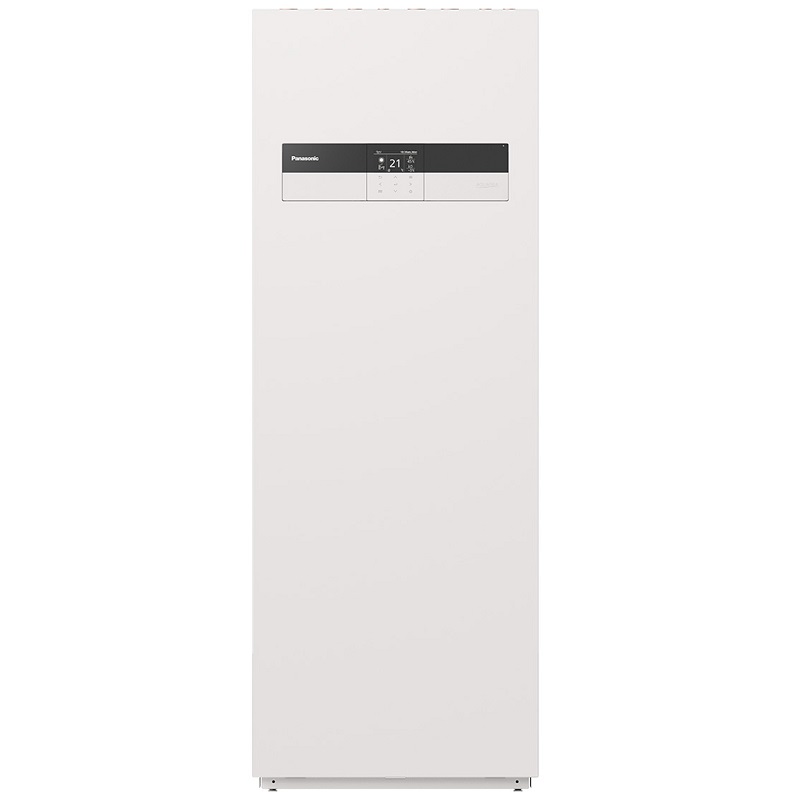

Indoor unit
Sound pressure (heating/cooling) 33 / 33 dB(A)
Indoor unit dimensions (H x W x D) 1642x599x602
Indoor unit net weight 103 kg
Connector for water pipe connection R 1¼ inch
Class A pump: Number of revolutions
Class A pump: Power consumption (min. / max.) 173 W
Heating water flow rate (∆T = 5 K, 35 °C) 45.9 l/min
Water volume 185 litres
Maximum hot water temperature 65 °C
TV storage efficiency (ErP) average/warm/cool environment A / A+ / A
TV storage – average climate according to ErP, η / TV COP 107 / 2.68 ηwh %/TV COP
TV storage – warm climate according to ErP, η / TV COP 128 / 3.20 ηwh %/TV COP
TV storage – cold climate according to ErP, η / TV COP 84 / 2.10 ηwh %/TV COP

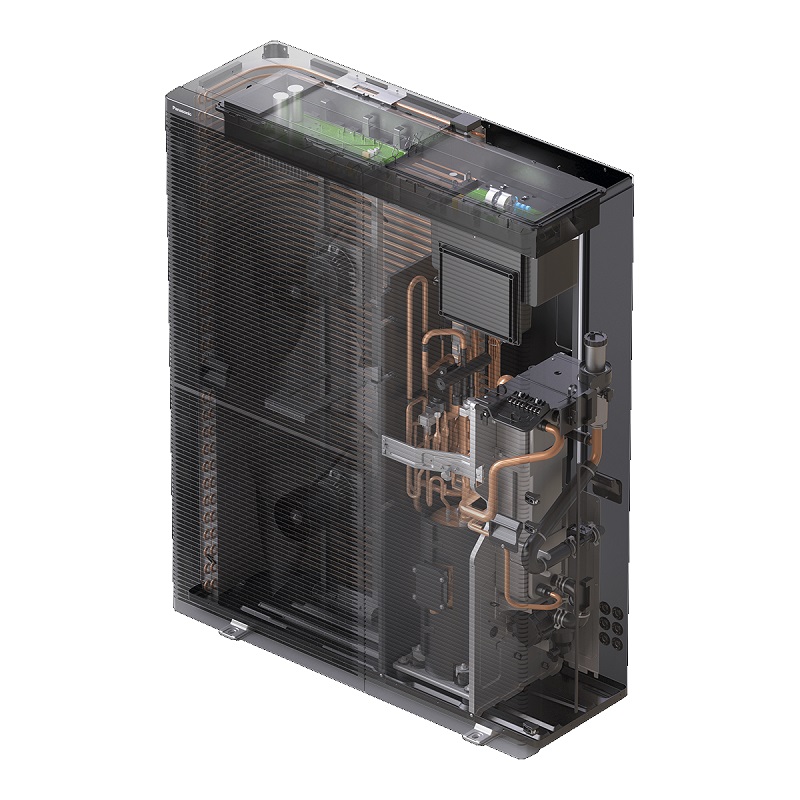

Outdoor unit
Acoustic performance: Heating 65 dB(A)
Outdoor unit dimensions (H x W x D) 1340 x 900 x 320
Net weight of outdoor unit 103 kg
Refrigerant (R32) / CO₂ equivalent 1.83 / 1.235 kg/t
Pipe length range - standard / maximum 3~30m
Pipe diameter (Liquid / Gas) 1/4 (6.35) / 1/2 (12.70) inch [mm]
Pipe length with pre-charged refrigerant 10 m
Additional volume of gaseous refrigerant 30 m
Height difference (indoor j. / outdoor j.) 20 m
Operating range - outdoor environment: Heating -28 ~ +35 °C
Operating range - outdoor environment: Cooling +10 ~ +43 °C
Water outlet (heating / cooling) 20 ~ 60 / 5 ~ 20 °C
Electrical data
Electric backup heater 9 kW
Recommended current protector, 1/2 20/20 A supply
Recommended minimum cable cross-section, 1/2 connection 5 x 1.5 / 5 x 1.5 mm²
