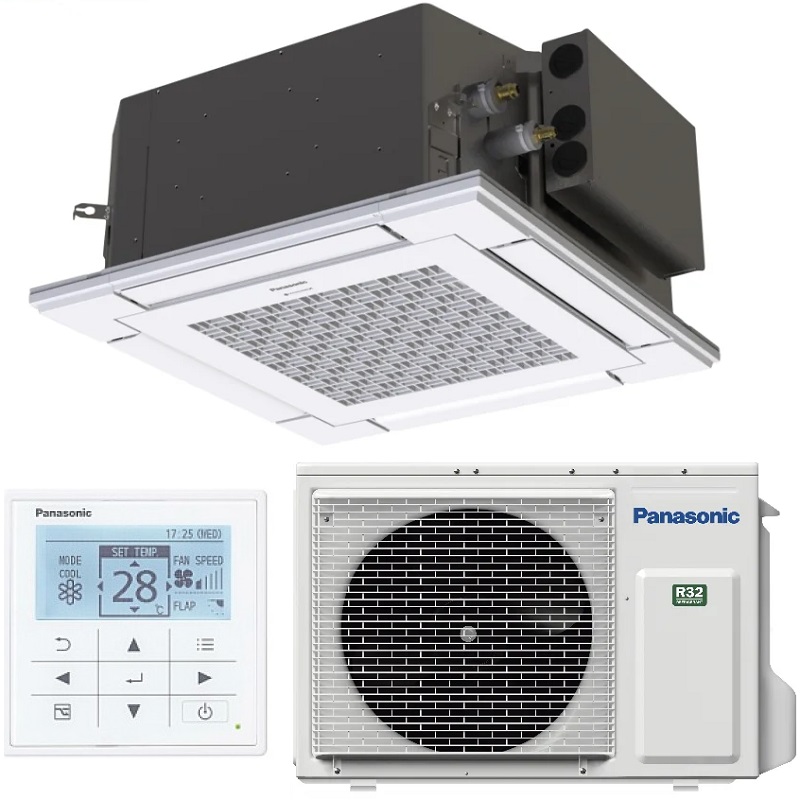

Panasonic Cassette Air Conditioner 60PY3Z5
Panasonic 4-way cassette indoor unit 60x60 with Inverter technology and nanoex air purification system, R32 gas,

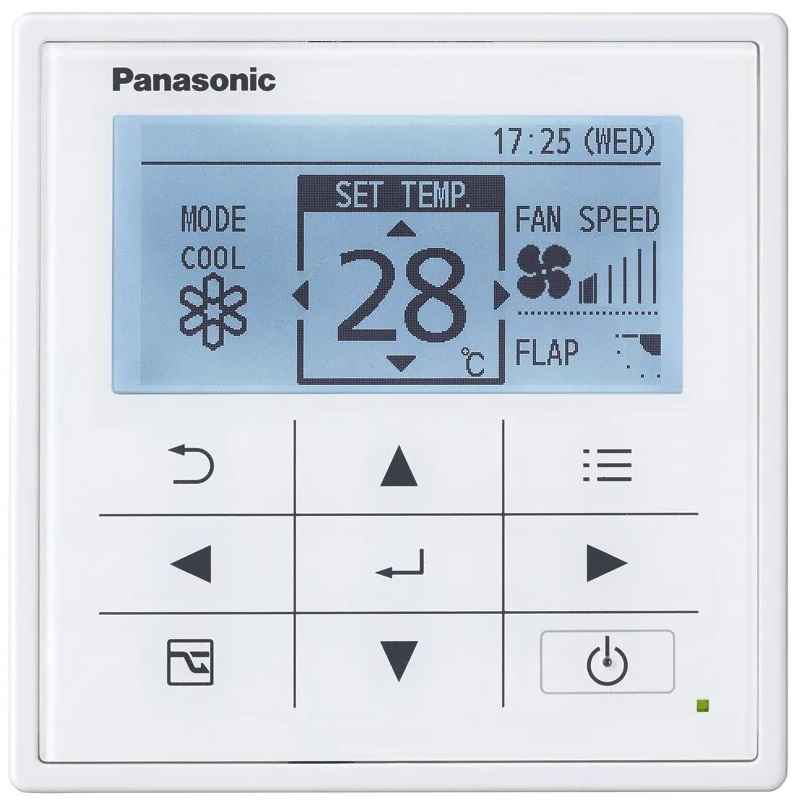

the white CZ-KPY4 panel is included, the CZ-RTC5B wall remote control with weekly programming
Model

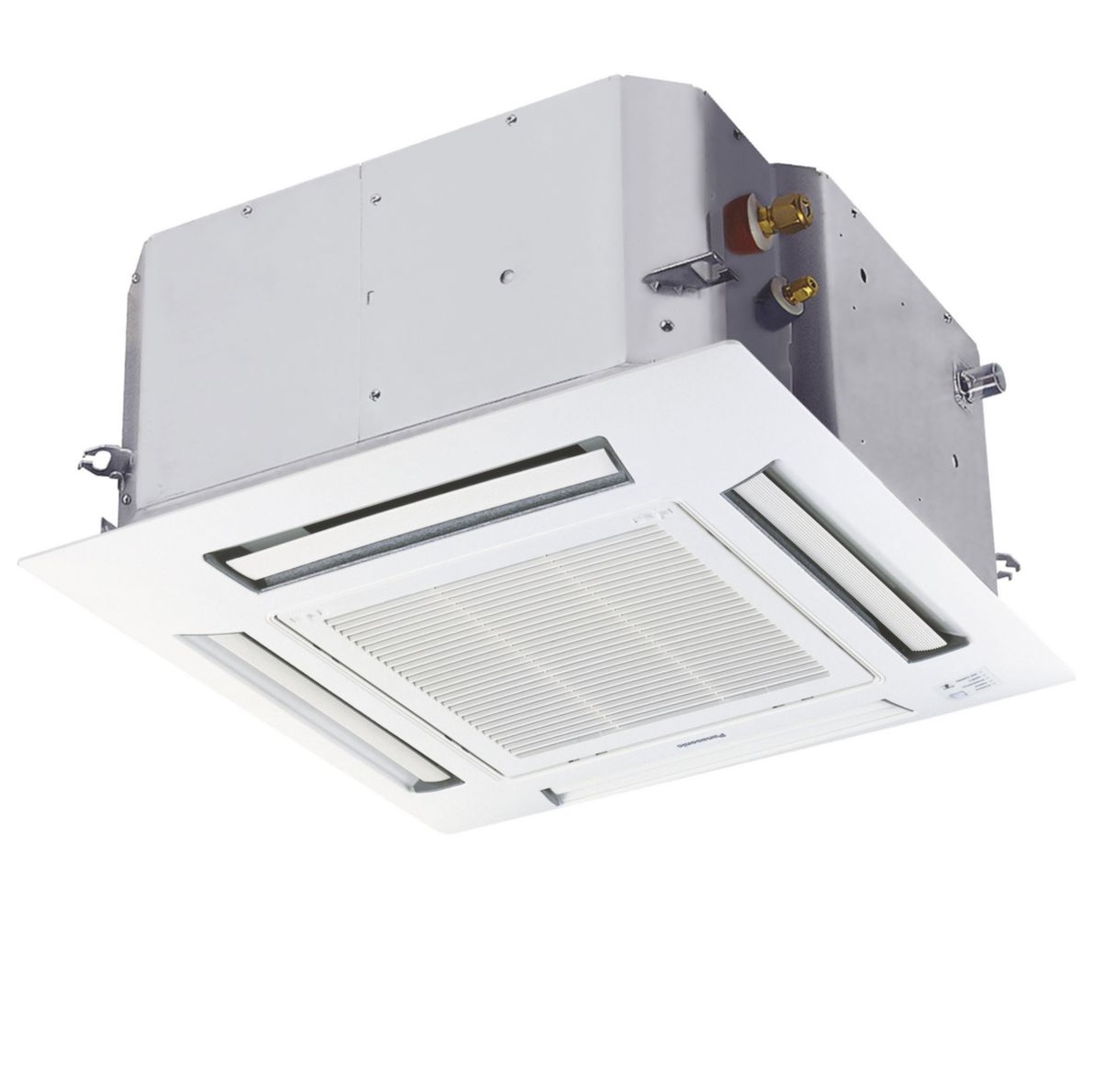

Indoor unit: S-50PY3E

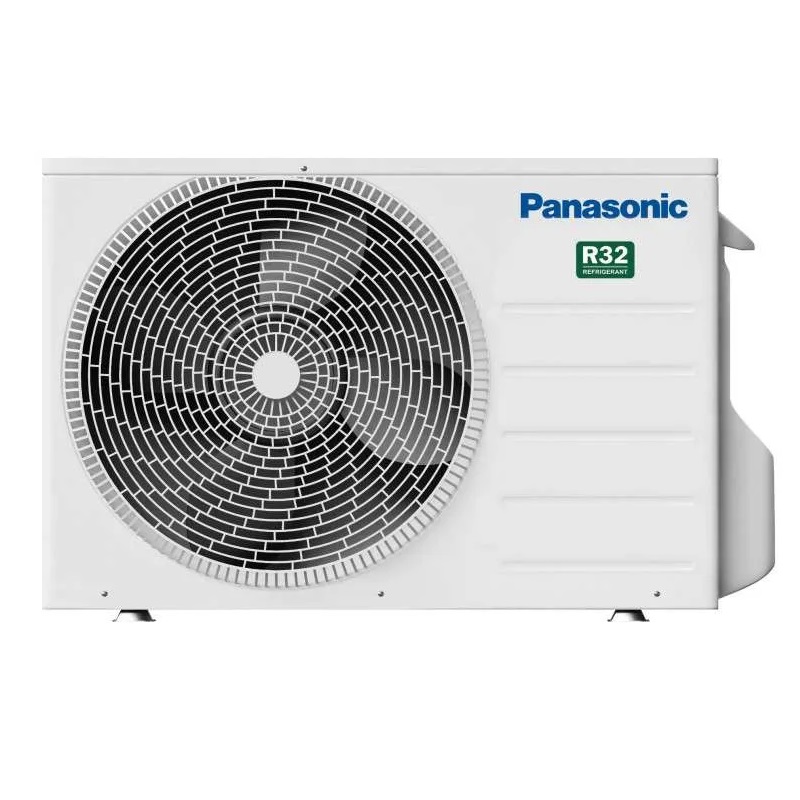

Outdoor unit: U-50PZ3E5
Power: 18000 BTU
Energy efficiency
SEER/SCOP: 7.3/4.4 W/W
Energy efficiency class (cooling): A++
Energy efficiency class (heating): A+
Average annual consumption in cooling: 238 kWh/year
Average annual consumption in heating: 1264 kWh/year
Performance
Nominal cooling capacity: 5.0 (1.5-5.6) kW
Nominal heating capacity: 5.0 (1.5-6.4) kW
Indoor unit sound pressure level: 39/34/27 dB-A
Outdoor unit sound pressure level: 46/48 dB-A
Power supply: 230 V
Features
Refrigerant: R32
Operating range
Cooling: -10 ~ +43 C°
Heating: -15 ~ +24 C°
Dimensions
Indoor unit HxWxD (mm): 243 x 575 x 575
Weight 15 kg
Panel HxWxD (mm): 30 x 625 x 625 mm
Weight 2.8 kg
Outdoor unit HxWxD: 619 x 824 x 299 mm
Weight 35 kg
