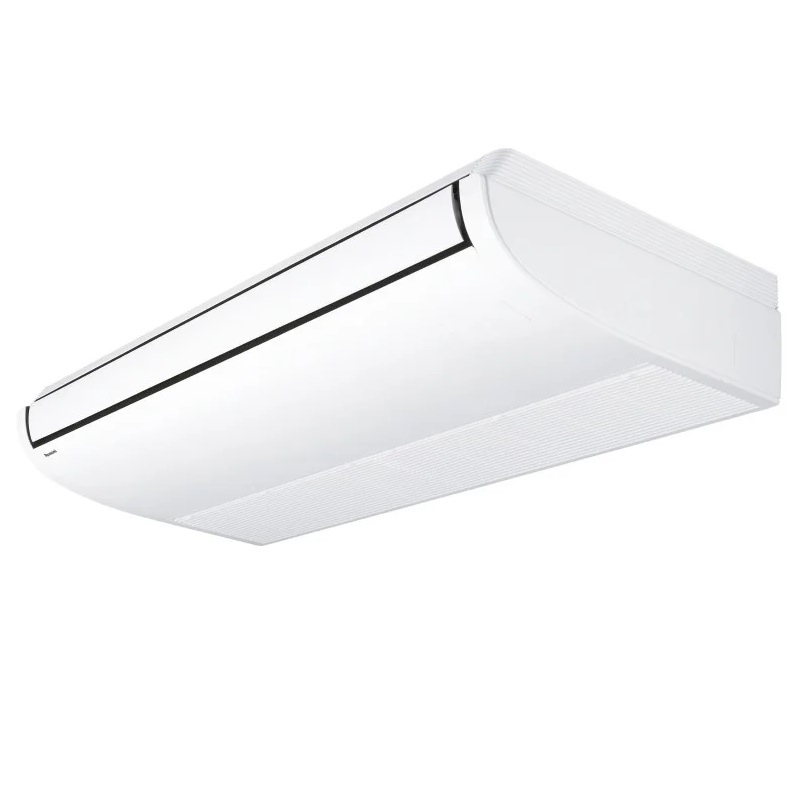

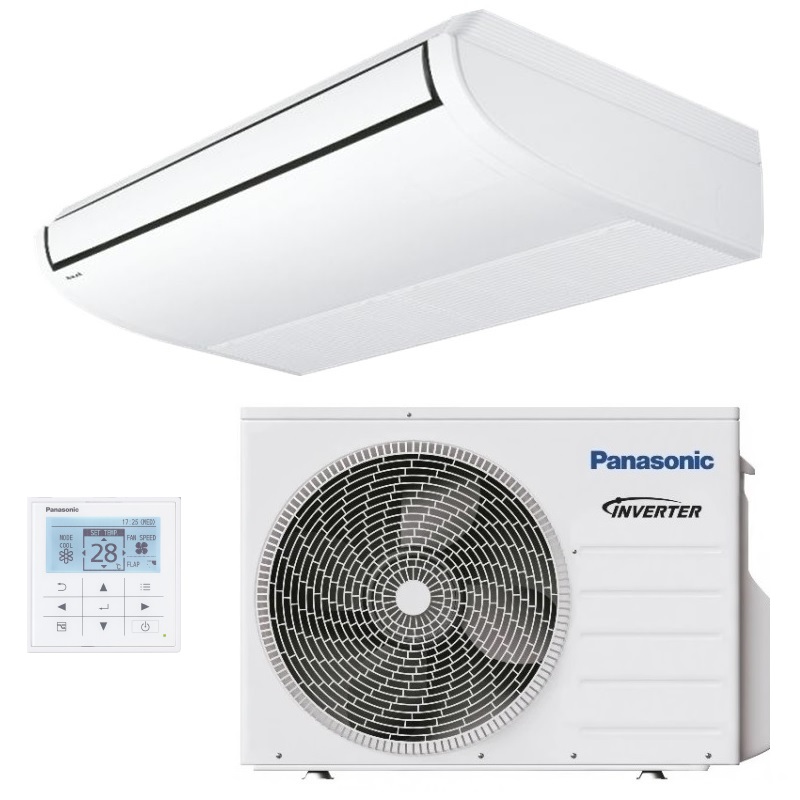

Panasonic 50PT3Z5 ceiling air conditioner, 5 kW
Wide air distribution for large spaces, optimizes air distribution with a wide blowing angle.
Horizontal airflow up to 9.5 m: uniform air distribution over large distances.
Nanoe™ X Mark 2: Inhibits contaminants, viruses and bacteria, improves air quality and eliminates odors.
Fresh air connection available: Possibility of connection to an outside air supply.
Compact design (height 235 mm): suitable for tight spaces with limited height.
Quiet Operation: Minimizes noise levels for a quiet environment.
Simple Datanavi Support Application: Includes a control panel (CZ-RTC5B) for easy operation.
Various split options: Twin, Triple, Double-Twin split options for flexible installation.
Easy connection and management of external fan or ERV: via the PAW-FDC connector on the indoor unit electronic board, controlled by the control panel.
Capacity 5 kW
Wi-Fi optional
Cooling energy class A++
SEER 7.4
Heating energy class A++
SCOP 4.8
Voltage 220-240 V
Slow fuse rating 16 A
Refrigerant R32
Filling 1.13 kg
Outdoor unit
Sound pressure level 67 dB(A) (maximum)
Height695mm
Width 875 mm
Depth 320mm
Weight 42 kg
Indoor unit
Sound pressure level 28 dB(A) (minimum)
Height 235mm
Width 960 mm
Depth 690 mm
Weight 26 kg
