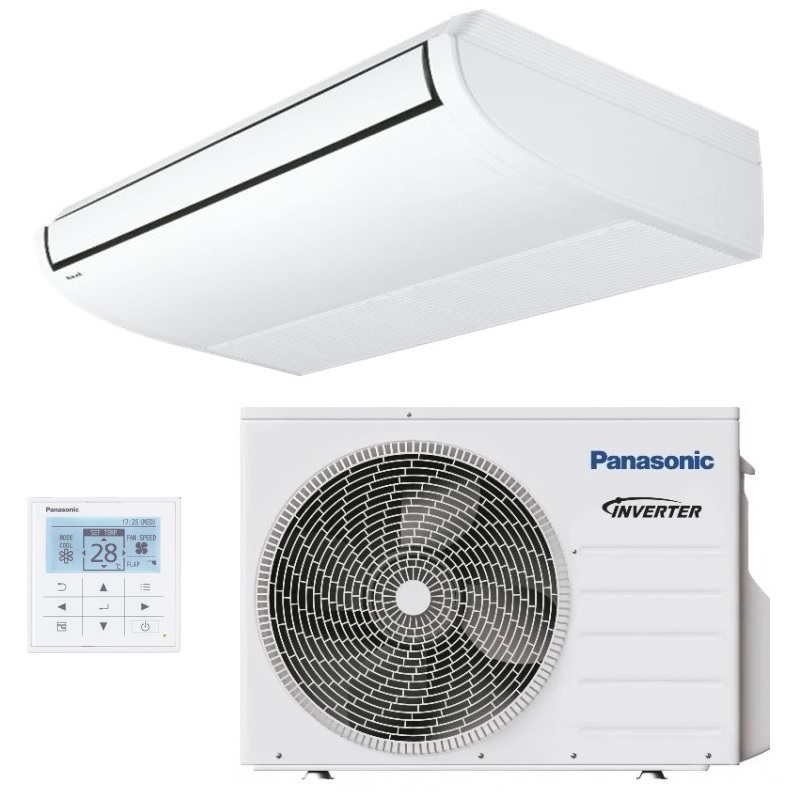

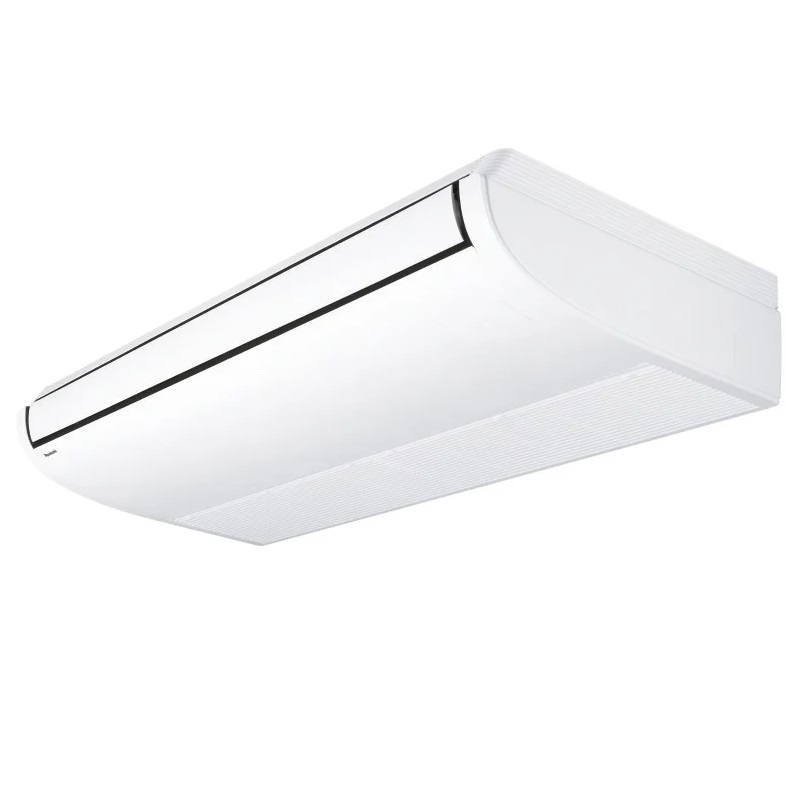

Panasonic 140PT2Z5 14.0 kW ceiling-mounted air conditioner
Wide Air Distribution for Large Spaces: Optimizes air distribution with a wide blowing angle.
Horizontal airflow up to 9.5 m: uniform air distribution over large distances.
Nanoe™ X Mark 2: Inhibits contaminants, viruses and bacteria, improves air quality and eliminates odors.
Fresh air connection available: Possibility of connection to an outside air supply.
Compact design (height 235 mm): suitable for tight spaces with limited height.
Quiet Operation: Minimizes noise levels for a quiet environment.
Simple Datanavi Support Application: Includes a control panel (CZ-RTC5B) for easy operation.
Various split options: Twin, Triple, Double-Twin split options for flexible installation.
Easy connection and management of external fan or ERV: via PAW-FDC connector on indoor unit electronic board, controlled by control panel
Wide air distribution for large spaces
Horizontal airflow reaches a maximum of 9.5m
Fresh air connection available on the unit
Its slim design with 235 m height fits into narrow spaces
nanoe™ Quiet Operation
CZ-RTC6BL wired remote control for easy system setup via Bluetooth®
Single and double options
External fan or energy recovery fan easily connected and controlled using the PAW-FDC connector on the indoor unit PCB. The outdoor unit can be controlled by the Panasonic indoor unit remote control
Kit KIT-140PT2Z5
Remote control CZ-RTC5B
Cooling capacity (nominal) 14.0 kW
Cooling capacity (Min) 3.3 kW
Cooling Capacity (Max) 15.0 kW
Refrigerant (R32) / Equip. CO2 kg / T 2.98 / 2.0115
Pdesign (cooling) kW 14.0
External sound pressure 56 dB(A)
External sound pressure 56 dB(A)
External sound power 74 dB(A)
External sound power 74 dB(A)
Pipe Diameter (Liquid) Inch 3/8 (9.52) mm
Pipe Diameter (Gas) Inch 5/8 (15.88) mm

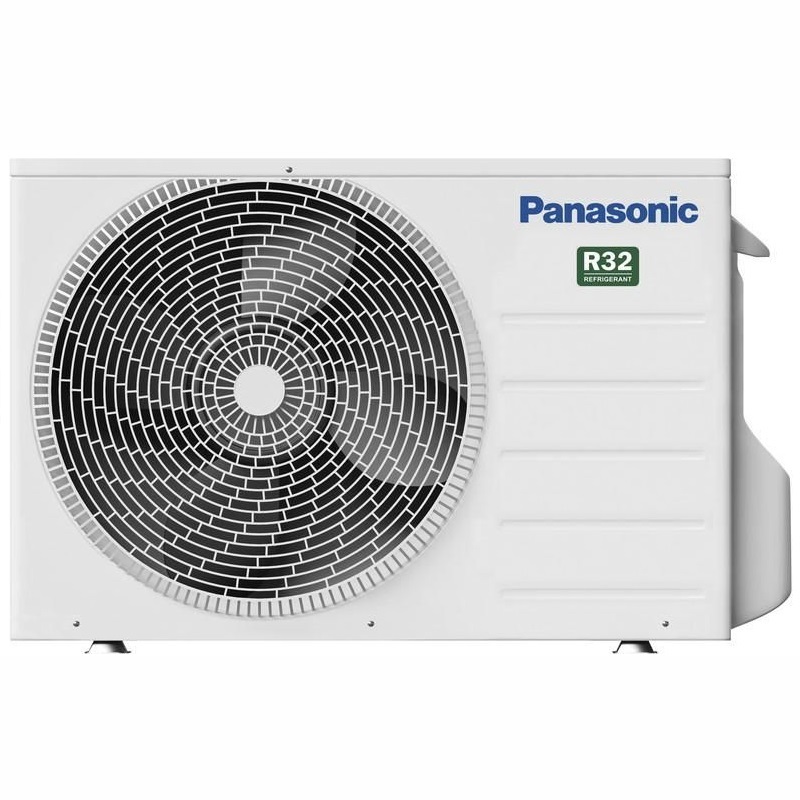

External dimension (Height) 996 mm
External dimension (Width) 980 mm
External dimension (Depth) 370 mm
Exterior weight 94 kg
