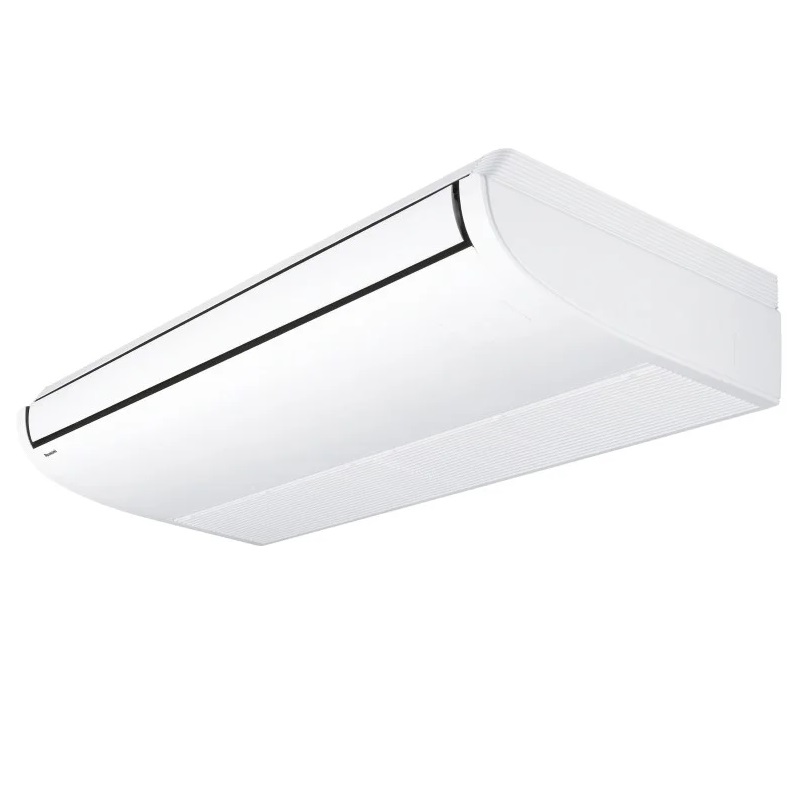

Panasonic 125PT3Z8 12.5 kW ceiling-mounted air conditioner

Panasonic 125PT3Z8 12.5 kW ceiling-mounted air conditioner

Wide Air Distribution for Large Spaces: Optimizes air distribution with a wide blowing angle.
Horizontal airflow up to 9.5 m: uniform air distribution over large distances.
Nanoe™ X Mark 2: Inhibits contaminants, viruses and bacteria, improves air quality and eliminates odors.
Fresh air connection available: Possibility of connection to an outside air supply.

Compact design (height 235 mm): suitable for tight spaces with limited height.
Quiet Operation: Minimizes noise levels for a quiet environment.

Simple Datanavi Support Application: Includes a control panel (CZ-RTC5B) for easy operation.
Various split options: Twin, Triple, Double-Twin split options for flexible installation.
Easy connection and management of external fan or ERV: via PAW-FDC connector on indoor unit electronic board, controlled by control panel

Wide air distribution for large spaces
Horizontal airflow reaches a maximum of 9.5m
Fresh air connection available on the unit
Its slim design with 235 m height fits into narrow spaces
Quiet operation
nanoe™
CZ-RTC6BL wired remote control for easy system setup via Bluetooth®
Single and double options
External fan or energy recovery fan easily connected and controlled using the PAW-FDC connector on the indoor unit PCB. The outdoor unit can be controlled by the Panasonic indoor unit remote control

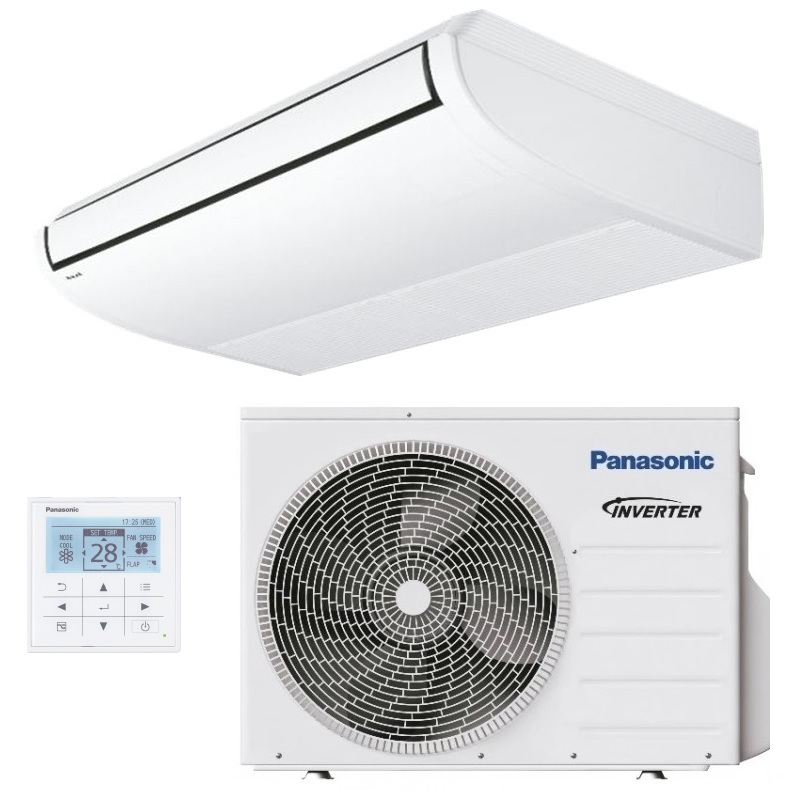

Pack NX standard inverter + ceiling R32 series 12.5 kW
Kit KIT-125PT3Z8
Remote control CZ-RTC5B
Cooling capacity (nominal) 12.5 kW
Cooling capacity (min.) 3.2 kW
Cooling capacity (max.) 13.5 kW
EER (nominal) (1) 3.32 W/W
SEER/ηsc (2) 240.9%
Refrigerant (R32) / CO2 2.80 / 1.89 kg

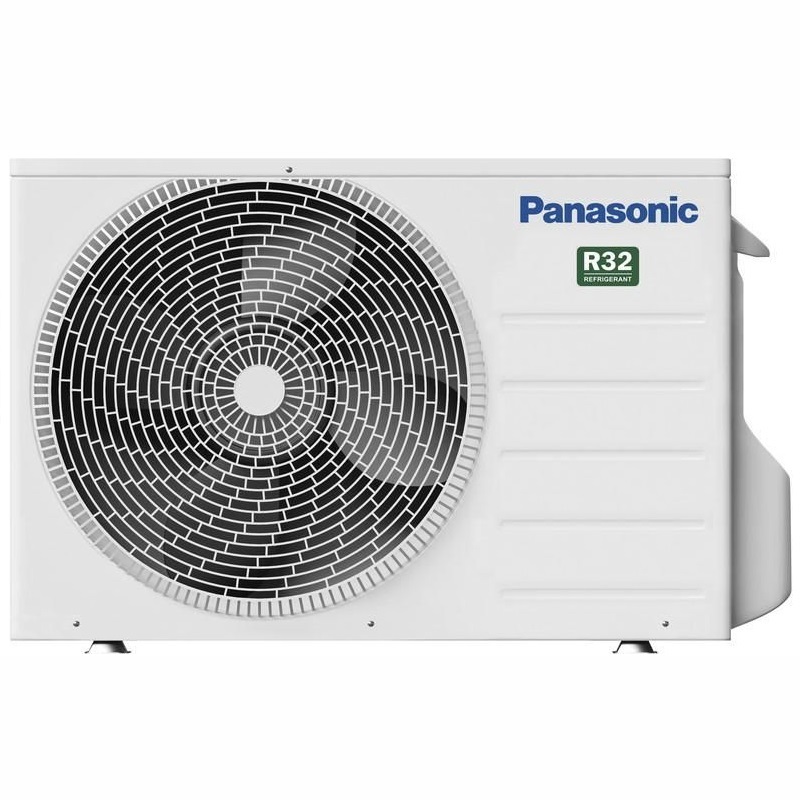

External dimensions (height) 996 mm
External dimensions (width) 980 mm
External dimensions (depth) 370 mm
Net weight of outdoor unit 87 kg
