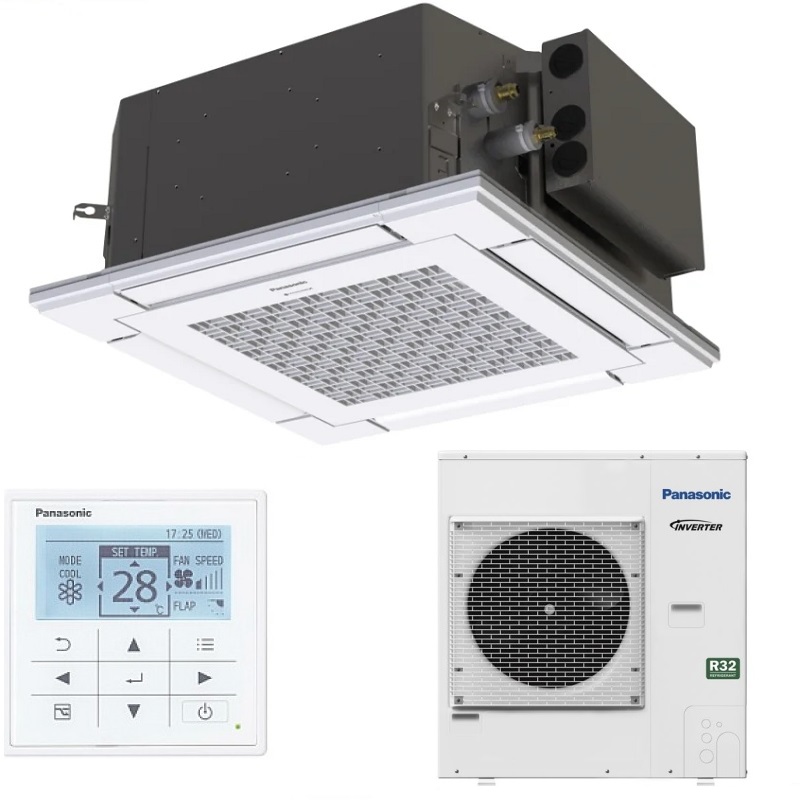

Panasonic 100PU3Z5 Cassette Air Conditioner
Always pure and clean air with nanoe™ X and internal cleaning mode, modern flat screen design to fit into any space, maximum comfort and energy savings thanks to the Econavi sensor, panasonic takes care of indoor air quality
Humidity sensor, the air inlet section now integrates a humidity sensor that allows energy savings and comfort based on temperature and humidity.
Nanoé MC, group control, circulation function and circulation operation are activated when no one is present to evenly distribute the air and minimize thermal stratification during heating and cooling.
Panasonic KIT-100PU3Z5-6W
Nominal cooling capacity: 10 kW - 8,600 frigories/h
Nominal heat capacity: 10 kW - 8,600 kcal/h
Pipe connections
Liquid/gas pipe: 3/8 - 5/8"
Pipe length range: 5 ~ 50 m
Elevation difference (internal/external): 15/30 m
Refrigerant: R32
Operating range (min. - max. cooling): -10 ~ +43 ºC
Operating range (min. - max. heating): -15 ~ +24 ºC
Indoor unit S-1014PU3E
Air flow rate (Al / Med / Ba): 36 / 26 / 18 m³/min
Moisture removal volume: 2.7 l/h
Sound pressure (Med / Ba): 38 / 32 dB(A)
Sound power (High / Medium / Ba): 60 / 53 / 47 dB(A)
Internal dimensions (Height x Width x Depth): 319 x 840 x 840 mm
Panel dimensions (Height x Width x Depth): 335 x 950 x 950 mm
Indoor unit / Panel net weight: 20 / 5 Kg
Nanoe X generator: Brand 1

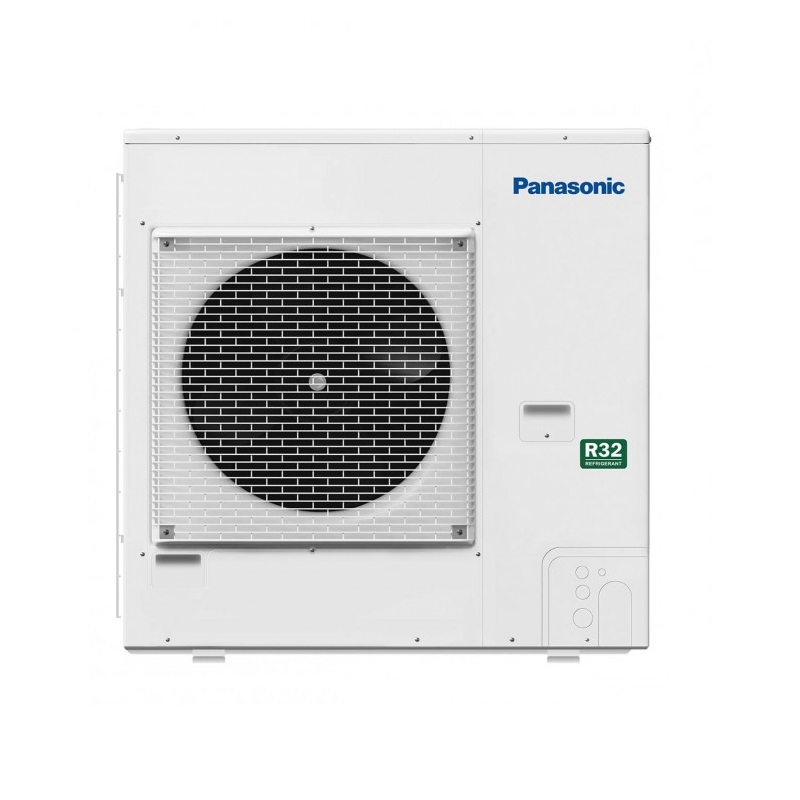

Outdoor unit U-100PZ3E5
Power supply: 220 - 230 - 240 V
Sound pressure (Cooling / Heating): 52 / 52 dB(A)
Sound power (Cooling / Heating): 70 / 70 dB
Dimensions (Height x Width x Depth): 996 x 980 x 370 mm
Weight: 50 kg
