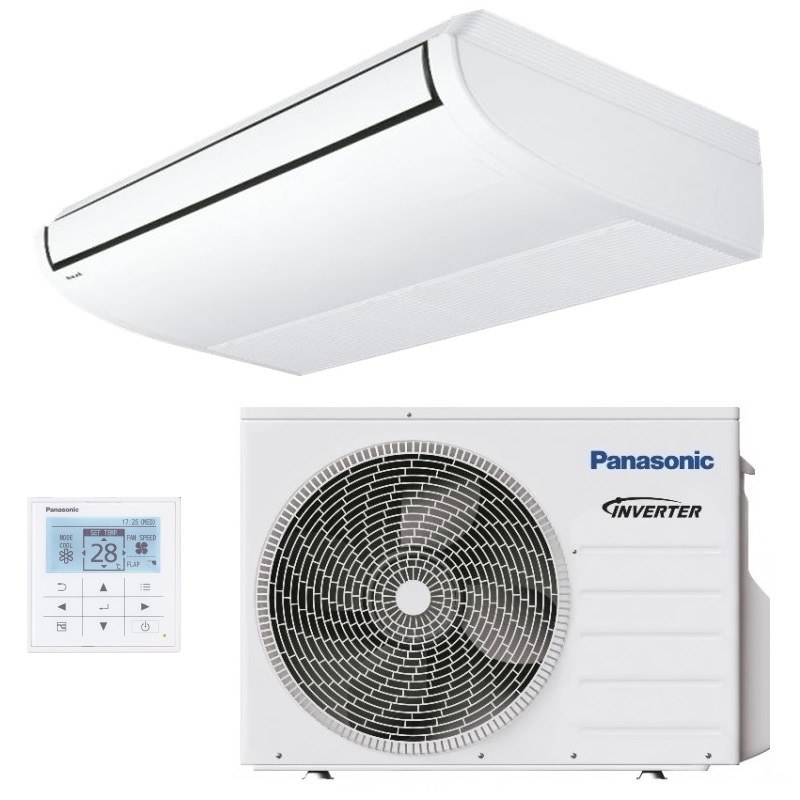

Panasonic 100PT3Z5 10.0 kW ceiling-mounted air conditioner

Panasonic 100PT3Z5 10.0 kW ceiling-mounted air conditioner

Wide Air Distribution for Large Spaces: Optimizes air distribution with a wide blowing angle.
Horizontal airflow up to 9.5 m: uniform air distribution over large distances.
Nanoe™ X Mark 2: Inhibits contaminants, viruses and bacteria, improves air quality and eliminates odors.
Fresh air connection available: Possibility of connection to an outside air supply.

Compact design (height 235 mm): suitable for tight spaces with limited height.
Quiet Operation: Minimizes noise levels for a quiet environment.

Simple Datanavi Support Application: Includes a control panel (CZ-RTC5B) for easy operation.
Various split options: Twin, Triple, Double-Twin split options for flexible installation.
Easy connection and management of external fan or ERV: via PAW-FDC connector on indoor unit electronic board, controlled by control panel

Cooling capacity: 8,600 Kcal/h (10.0 kW)
Heating capacity: 8,600 Kcal/h (10.0 kW)
Energy rating: A++
Refrigerant: R-32
Recommended surface area 80 - 90 m²
Heat pump Yes
Nominal consumption Heating/Cooling 2.75 kW / 2.36 kW
Minimum sound level (indoor) 34 dBA
Energy rating (Cold) A++
Energy rating (heat) A+
SEER and SCOP 6.6/4.2

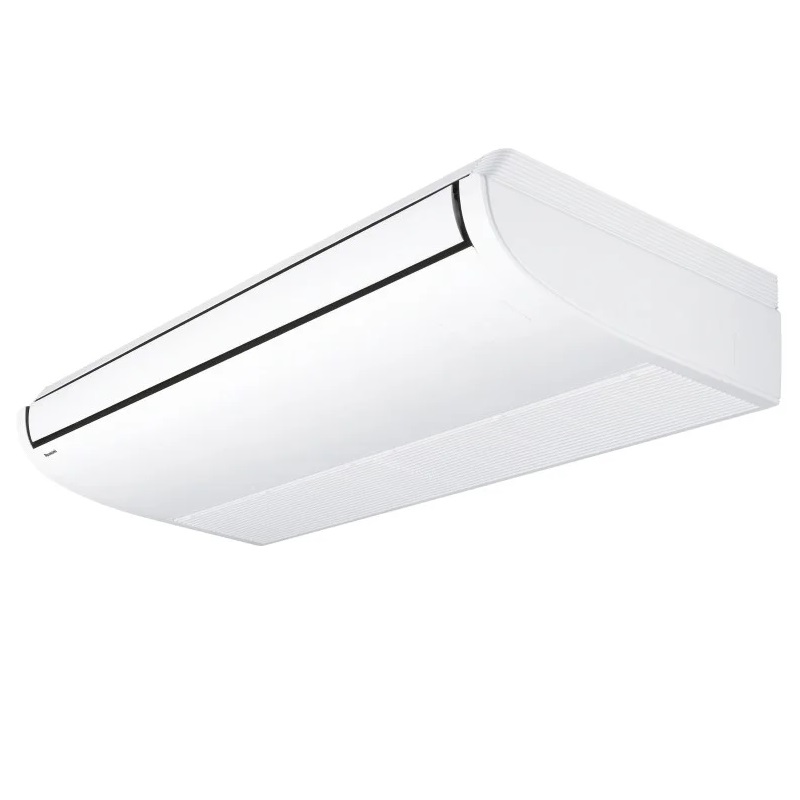

Dimensions of the indoor unit L.1590 x D.690 x H.235

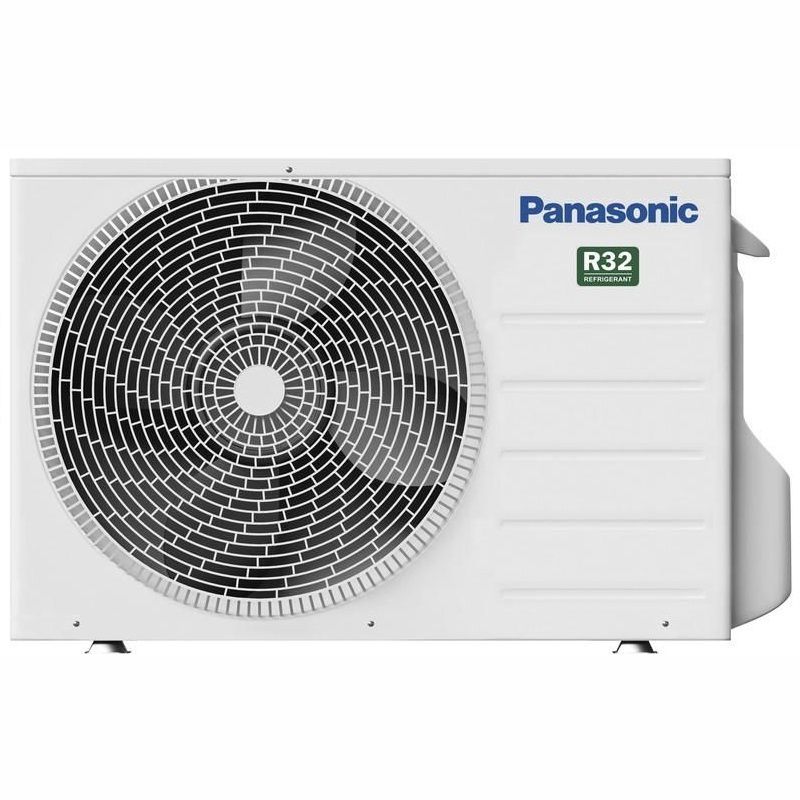

Dimensions of the outdoor unit L.980 x D.370 x H.996
Weight 123 kg
