Orkli underfloor heating manifold complete in stainless steel

 Orkli underfloor heating manifold complete in stainless steel

Stainless steel distribution equipment with flow regulators to regulate and distribute water to underfloor heating circuits.

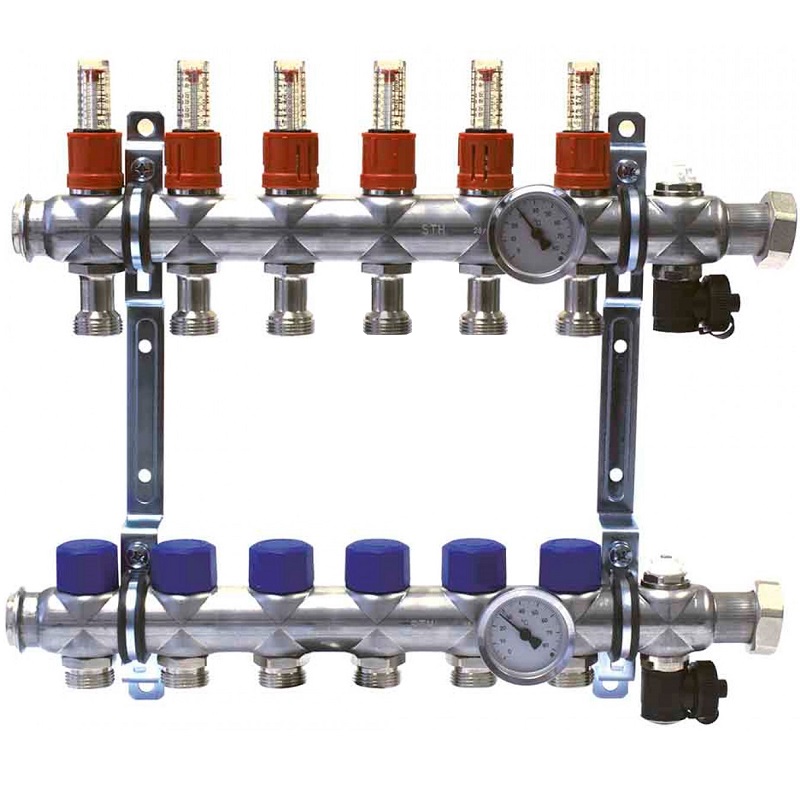

The distribution teams are made up of:
DN32 stainless steel collectors (1).
Shut-off valves with ¾” connection (2).
Thermostatic valves in the return circuit (3).
Flow meters in the flow circuit (4).
Thermometers (5), filling/draining tap (6) and manual draining on both branches 7
Metal brackets 8

Adjustable flow meter
Thanks to the flow meters integrated into the flow branch, the flow rate passing through each circuit can be measured and regulated in a range of 1 to 5 l/min. In this way, precise balancing of the entire installation can be done.

The flow meters can be locked in this position so that they do not experience any variation in regulation, if necessary it is possible to close the route.

Thermostatic valve
The function of the thermostatic valve is to close or open each channel of the circuit depending on demand. This valve is made up of a plastic handle which facilitates manual operation.
in every way. Thermoelectric heads can be integrated to carry out channel switching via an external signal (thermostats).

DN32 stainless steel collectors.
With shut-off valves (3/4" connection).
They integrate thermostatic valves in the return circuit and flow meters in the flow circuit.
It includes a thermometer, a fill/drain valve and manual draining on both branches.
Rail thread: 3/4" Eurocone.
Distance between tracks 50 mm
Incorporates metal collector supports.
Distance between branches: 200 mm

Reference 2-way heated floor sensor, EAN code SM1002S 8426562014507
Made from 1.4301 stainless steel

Includes support
Thermometers: one on the way out and one on the way back
Thermostatic valves: Integrated, one at the outlet and one at the return
Purge valve and aerator
Regulation: 0.5 - 5 liters/min
Distance between circuit axes: 55 mm
Remote regulation: YES (requires heads)
Inlet connection: 1" female thread for gas
Outlet connection: 3/4 Eurocone male gas thread
Connection to thermostatic valve: M30x1.5
Fully pre-assembled
Rated working temperature 50Cº
Maximum temperature: 70Cº
Maximum operating pressure: 10 BAR
Test pressure: 10 bars at 20 Cº
