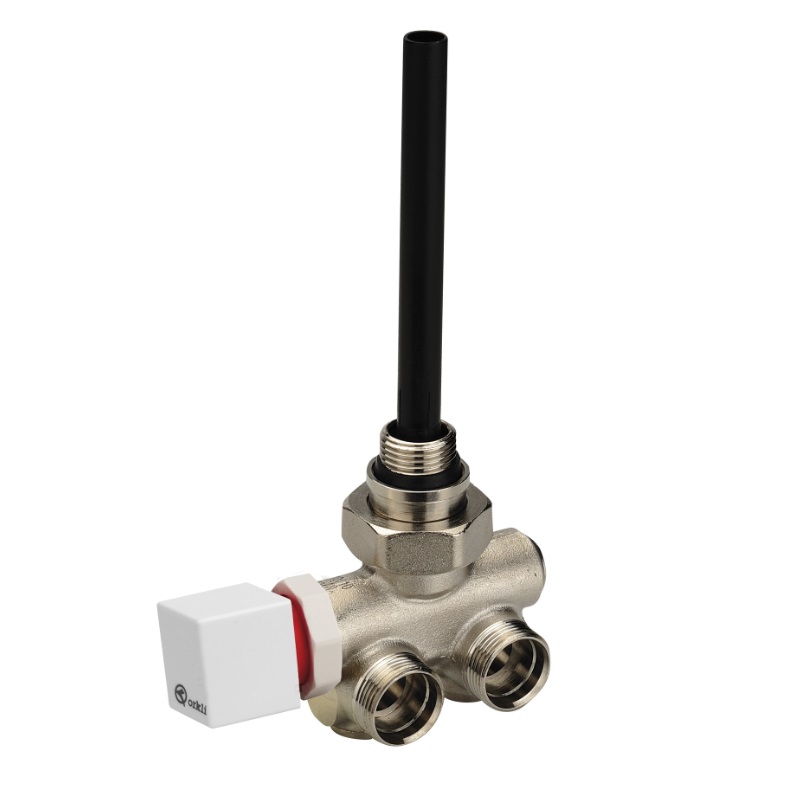

Orkli single-tube thermostatic valve (left) connection 1/2 /M24x1.5 /M28x1
By opening or closing the valve, this function can be carried out manually or automatically by regulating one of our thermostatic heads, from this function can be carried out the temperature is automatically carried out at a pre-established value in the room where the valve is installed , in addition to offering energy savings.
For correct operation of the system, it will be necessary to ensure that it is only inserted inside the radiator for 2/3 of its total length.
Model: Wall
Type: Straight head.
Size: 1/2"
Pipe connection: M24x1.5
Main connection: M28x1
Radiator connection: 1/2" M
Brass body EN 12165 CW617
Stainless steel front door
Brass Tank Closure EN 12165 CW617
EPDM hydraulic seals
PA66 probe holder
PA66 probe or pipette
All valves are nickel plated
Performance:
Medium water, glycol solutions
Glycol maximum version 30%
Maximum different pressure 1 bar
Maximum pressure. operating pressure 6 bars
