Adjustable flow meter
Thanks to the flow meters integrated into the flow branch, it can be measured and regulated in a manner
range from 1 to 5 l/min the flow rate passing through each circuit. This way it can be done
precise balancing of the entire installation. Once the flow defined by the project is defined, the
The flow meters can be locked in this position so that they do not experience any variation in the
regulation. If necessary, it is possible to close the road.

Thermostatic valve
The thermostatic valve has the function of closing or opening each channel of the circuit depending on
request, this valve consists of a plastic handle which facilitates manual maneuvers
on each side, thermoelectric heads can be integrated in order to carry out the switching
channels through an external signal (thermostats)

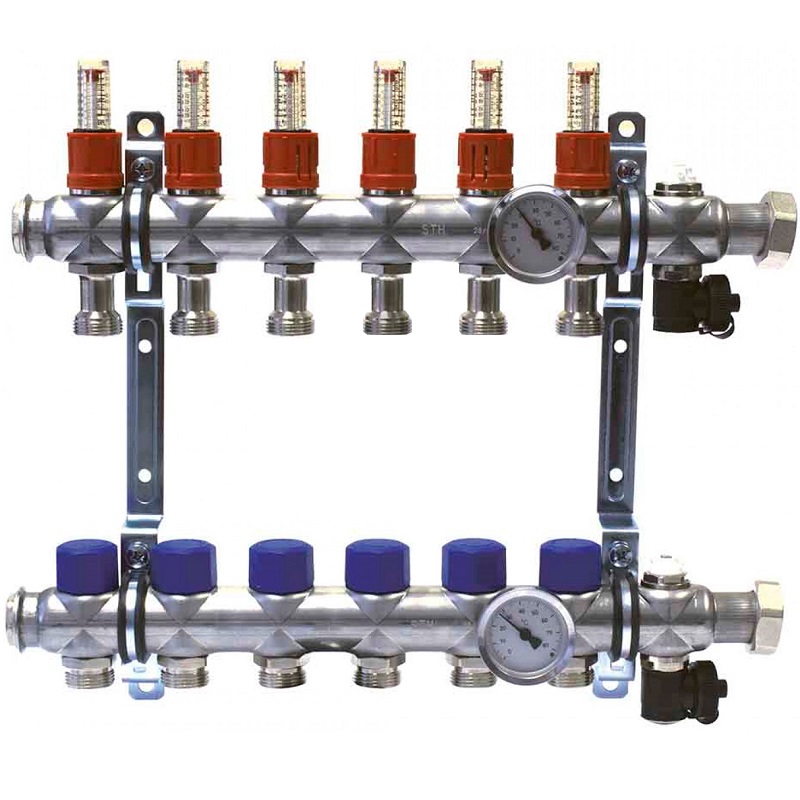

Stainless steel distribution equipment with flow regulators to regulate and distribute water to underfloor heating circuits,

The distribution teams are made up of:
DN32 stainless steel collectors (1).
Shut-off valves with ¾” connection (2).
Thermostatic valves in the return circuit (3).
Flow meters in the flow circuit (4).
Thermometers (5), filling/draining tap (6) and manual draining on both branches (7).
Metal supports (8)
Maximum operating pressure: 4 bars
Operating temperature: 0-70ºC
Rail output connection: ¾” Eurocono
Flow pressure: 0-5 l/min
KV (Flow meter): 1.1 m3 /h
KV (thermostat vane): 2.56 m3/h
Thermostatic connection: M30X1.5
