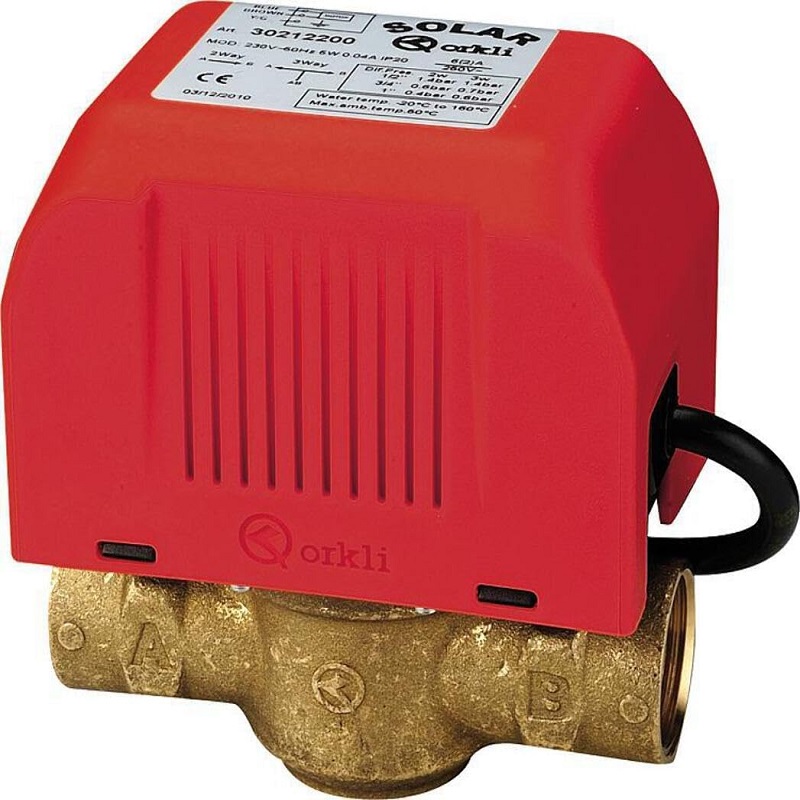

Orkli 2-way zone valve H-H 3/4 with micro
On/off function, for use in heating and solar heating circuits, for switching off or switching. No-current closing (2 ways), AB-B open (3 ways)
They can be operated manually using an integrated lever for filling, rinsing, venting or emptying the installation. Technical data :
Max. working pressure : 10 bar
Max differential pressure :
DN 15 (1/2). = 1.4 bar.
DN 20 (3/4). = 0.7 bar.
DN 25 (1) = 0.6 bar.
Operating temperature: -20 to +160°C.
Supply voltage: 230 V / AC
Power consumption: 6 W.
Opening and closing time: approx.: <12 sec/6 sec.
Medium: water with up to 50% glycol.
Valve body material: brass.
Paddle material: EPDM.
Cable length: 0.6 m
