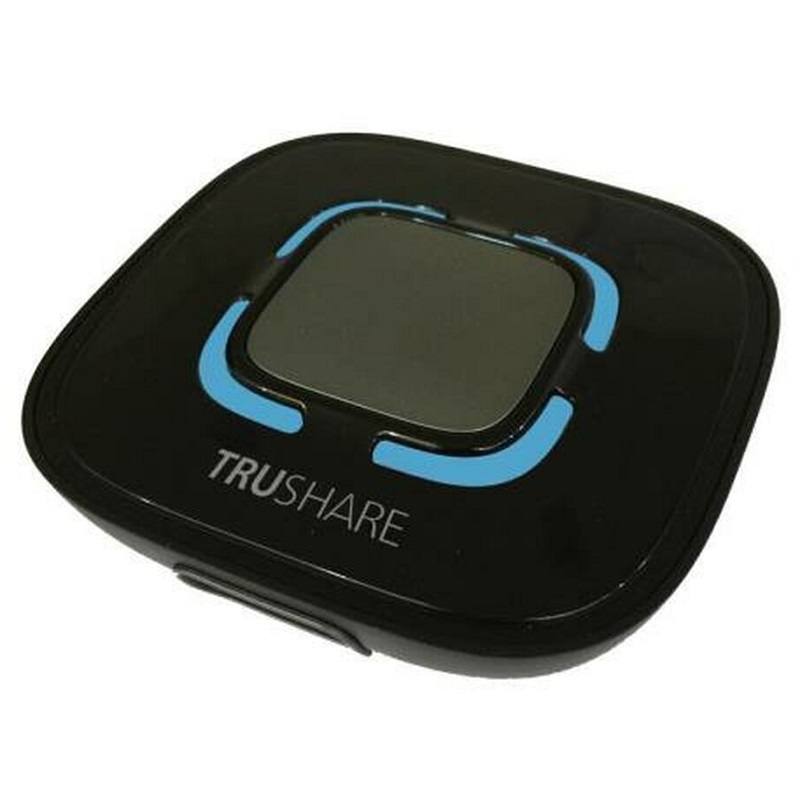

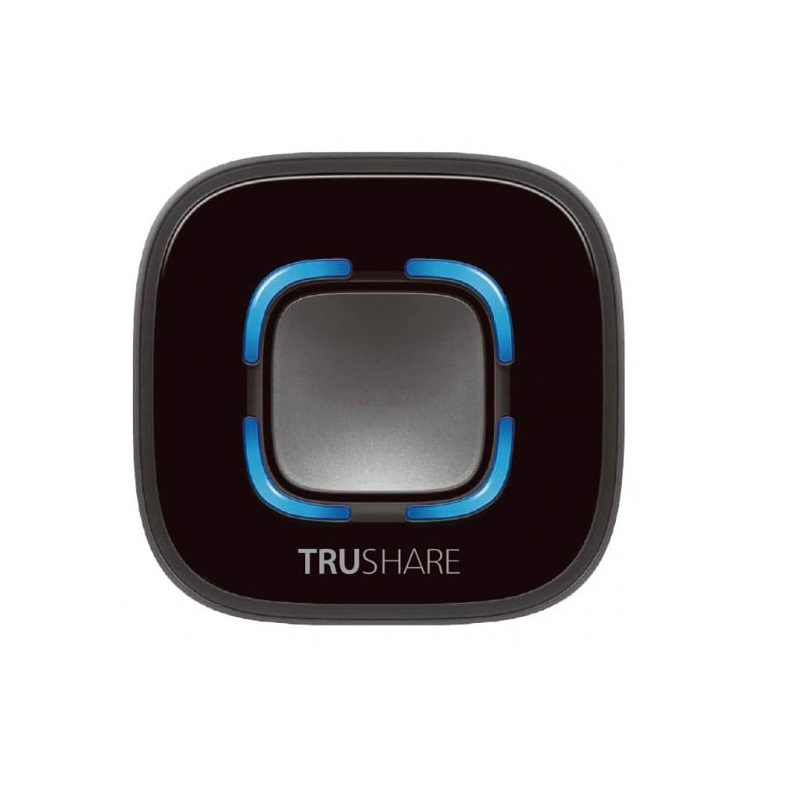

Newline Interactive EPR5A31848-000 Black Access Point
Enables Seamless Collaboration in Meetings and Classrooms
The TRUSHARE NewLine EPR5A31848-000 is a unique pairing solution to wirelessly connect an HDMI source to a TRUCAST device, enabling seamless collaboration in meetings and classrooms.
Connecting an HDMI cable to the TRUSHARE allows full mirroring of audio and video from supported HDMI sources to a display or projector, with no software installation or other configuration required.
Additionally, you can use advanced TRUCAST device features such as 4-in-1 projection, annotation, web slides, and conference control for enhanced collaboration in the meeting room or classroom.
Newline Interactive Access Point
Color: Black
TRUSHARE Wireless Projection Device Description
Standards IEEE 802.11a/b/g/n 5G/2.4GHz
IEEE 802.3 (10BASE-T)/IEEE 802.3u (100BASE-TX)
Wireless Data Rate: Up to 300Mbps
HDMI Receiver HDMI V1.4 (Does not support HDCP)
Security IEEE WEP 64/128-bit standard
WPA/WPA2-PSK
HDMI Resolution Supported HDMI: 1280 x 720 (720P),
1920 x 1080 (1080i/1080p)
Power Supply External Power Adapter Input DC 5V 1.2A
Interface Front: HDMI Port (Input)
Rear: Micro-USB Port x1 (for device pairing)
LAN RJ-45 port x1, reset button
Connection status LED, playback status
Supported models TRUCAST1/ TRUCAST2/ TRUCAST3
Certificate FCC/CE
Dimensions LxWxH 14 X 15 X 10 cm
Weight 0.50 Kg
