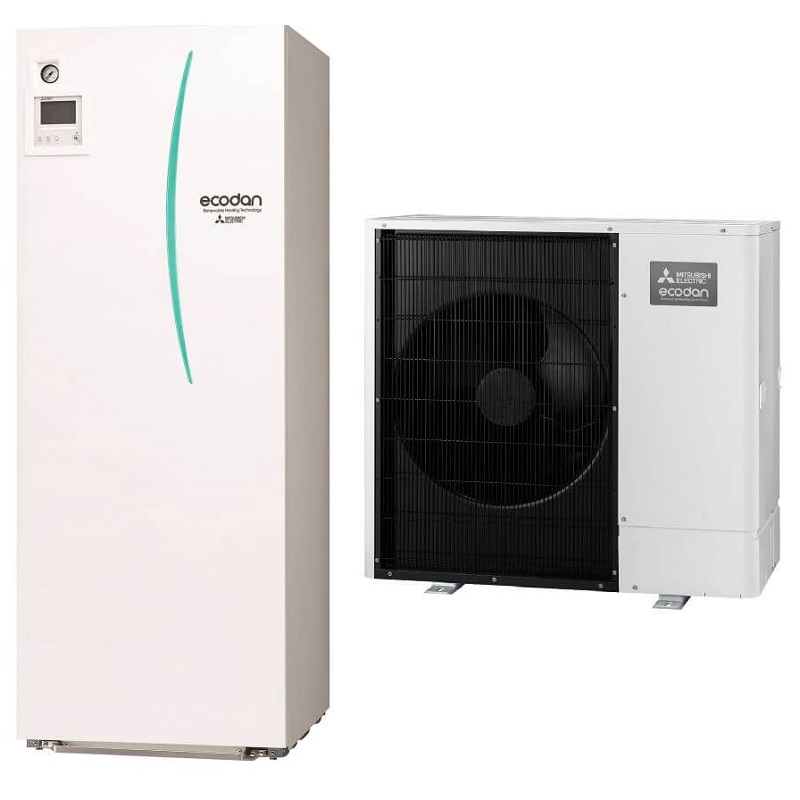

Mitsubishi SWM 100-ERSD-VM heat pump

Mitsubishi SWM 100-ERSD-VM heat pump

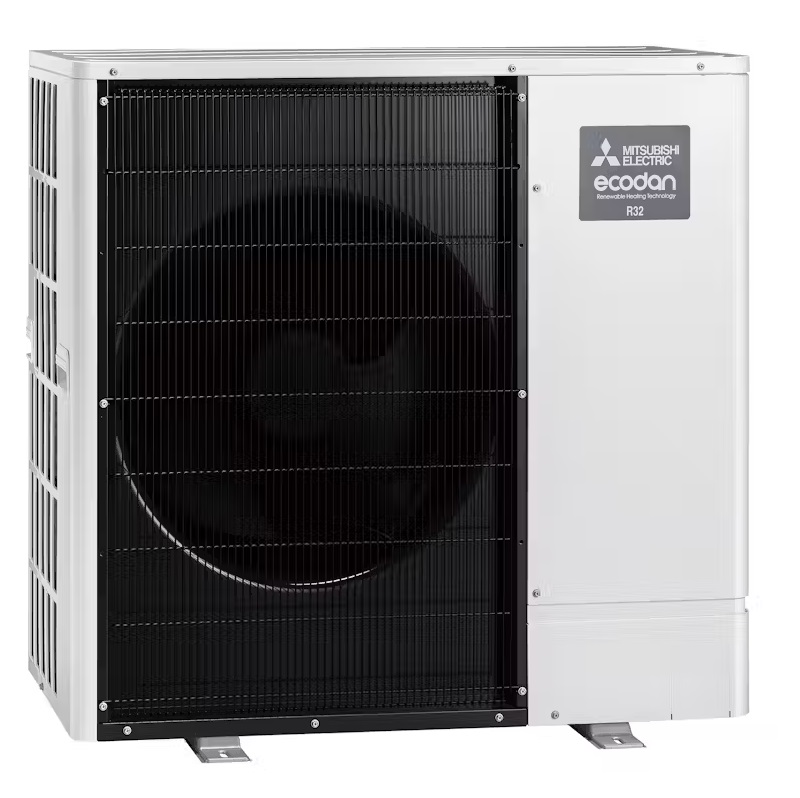

The Ecodan R32 PUZ-SWM outdoor units for heating, cooling and domestic hot water (DHW) production are characterized by being equipped with a super silent "AA chassis" thanks to the fan further away from the battery, the new arrangement of the refrigeration circuit and the new compressor installed on rubber supports, thanks to the new drainage base, on the other hand, the condensate drain is facilitated, thus avoiding the formation of ice that would limit performance, finally, the new compressor (more compact and more powerful) guarantees the achievement of high SCOP values ​​in fact, the entire series exceeds the seasonal energy efficiency class A++.

The HydroBox M ERSD-VM2D module is the hydronic module for indoor wall installation of the Ecodan series, inside are contained the heat exchanger, the hydraulic circulator, an expansion tank, an additional electrical resistance and all the safety components, thanks to their compact dimensions, these units can be installed in kitchens and closets and guarantee heating and the production of domestic hot water (optional), these units, equipped with the new FTC6 control system, have been the subject of the utmost attention to the smallest details such as the simple and modern design, the small size and easy maintenance.

Information
Power supply Voltage/Freq./Phase (V/Hz/n°) 400/50/3
Power supply Three-phase
Energy class cooling A+++
Energy class heating A++
Guaranteed operating range (cooling) 10°C ~ +52°C
Guaranteed operating range (heating) -25°C ~ +24°C
Refrigerant gas R32
Sound pressure level (dB) 44
Sound power (dB) 58
Control included (yes/no) Yes
Nominal heating capacity: 10.0 kW
Heating capacity at -15˚C: 9.0 kW
3 phases
Energy class A+++
Refrigerant R32

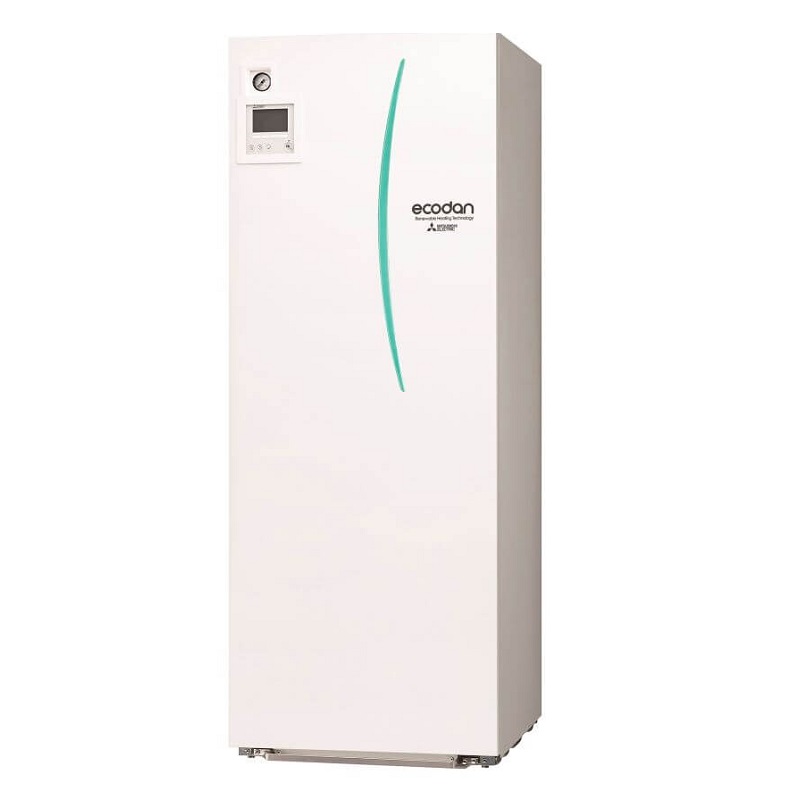

Floor-standing indoor unit
user interface in Hungarian
Built-in domestic hot water tank 200 L
Electric heating cartridge 2 kG
Dimensions Indoor unit: H. 800xW. 530xD. 360mm
External unit dimensions: H. 1020 x W. 1050xD. 480 mm
Weight 150 kg
