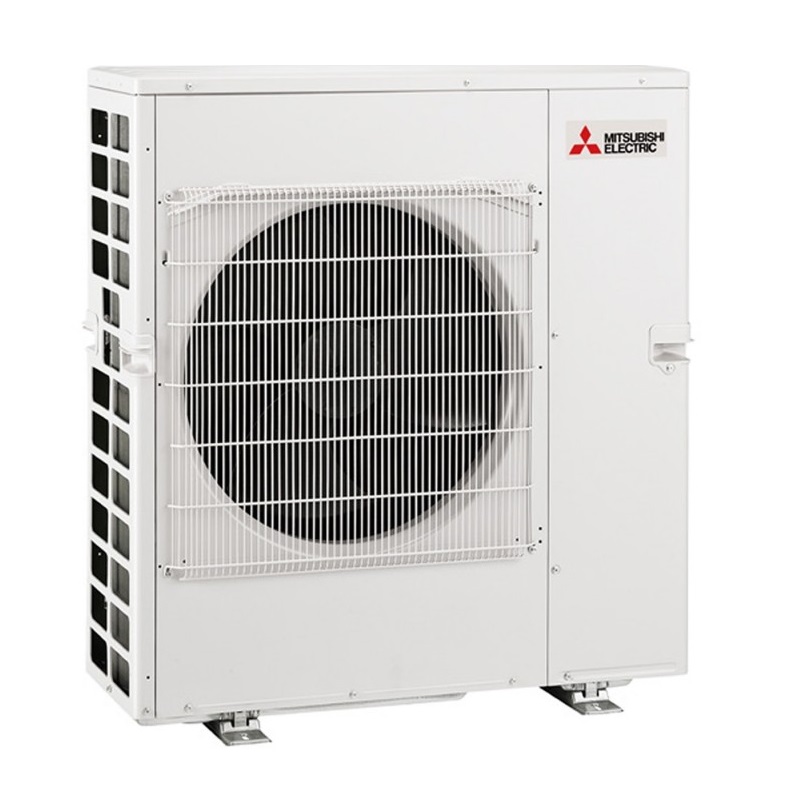

Mitsubishi MXZ-3F68VF outdoor unit

Mitsubishi MXZ-3F68VF outdoor unit

Tri-Split type
Number of outputs No. 3
Cooling power Kw 6.80
Mini / Maxi power in cooling Kw 2.90 / 8.40
Coefficient of performance in cooling: EER 3.70
Energy class in cooling: EER A
SEER 7.96
Energy class in cooling A++
Operating range in cooling at T° Ext ° -10 / +46
Heating power Kw 8.60
Mini / Maxi power in heating Kw 2.60 / 10.60
Power at -T° negative (- 7°) Kw 5.80
Coefficient of performance in heating: COP 4.50
Energy class in heating: COP A
SCOP 4.12
Energy class in heating A+
Operating range in heating at T° -15 / +24 Ext °
Maximum air flow cold / hot m³ 2526 / -
Maximum cold sound pressure dB 48
Refrigerant pipes 3 x 1/4-3/8
Refrigerant pipes 0 x 1/4-1/2
Refrigerant pipes 0 x 1/4-5/8
Refrigerant pipes 0 x 3/8-5/8
R32 refrigerant
Precharged length 40 meters
Maximum total length 60 meters
Maximum length per unit 25 meters
Single-phase power supply
Power supply cable 3 x 4 mm²
Indoor to outdoor unit connection cable 4 x 1.5 mm²
Electrical protection 25 A
Dimensions: Height x Width x Depth 710 x 840 x 330 mm
Net weight 58 kg
