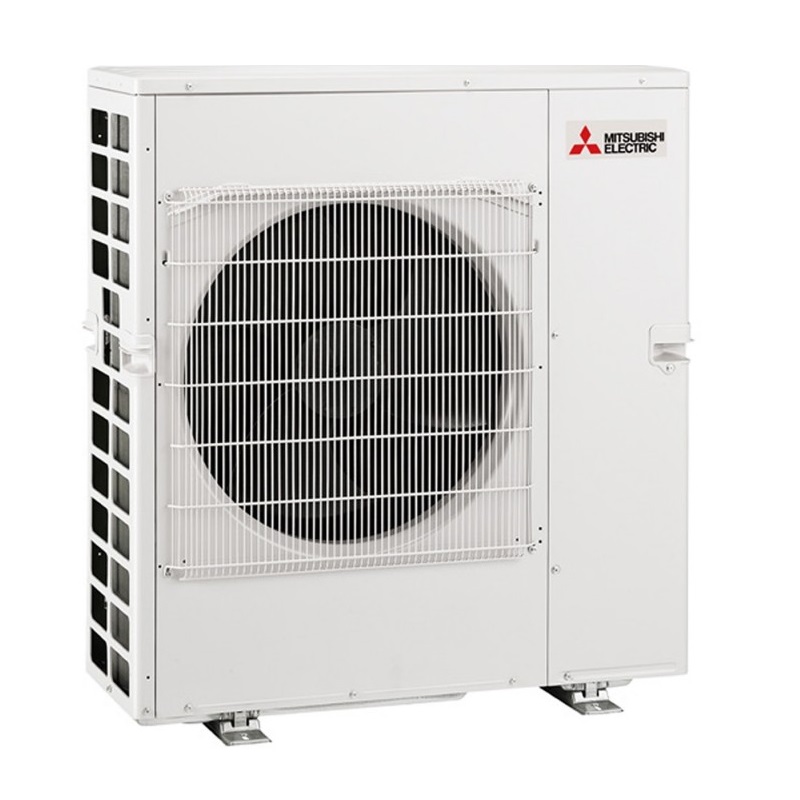

Mitsubishi MXZ-3F54VF outdoor unit
Type Tri-Split
Number of outlets Nb 3
Gas R32
Refrigerant connection 1/4-3/8
Nominal cooling capacity (min/max) 5.4 (2.9 / 6.8) kW
Total nominal power input 1,320 kW
SEER / Energy class 4.09 / A
SEER / Seasonal energy class 8.52
Operating range (dry/dry outdoor temperature) -10 / +46 °C
Nominal heating capacity (min/max) 7.0 (2.6 / 9.0) kW
Nominal heating capacity at -7°C (max) 4.7 (6.3) kW
Total nominal power input 1,400 kW
COP / Energy class 5.00 / A
SCOP** / Seasonal energy class 4.61
Operating range (ext. wet/dry temperature) -15 / +24 °C
Air flow in cooling GV 1860 m³/h
Sound pressure in cooling at 1 m 46dB(A)
Sound power in cooling GV 60 dB(A)
Maximum length 50 meters
Fluid R32
Power supply by external unit 230V (1P+N+T) V~50Hz
Cable for external unit 3 x 4 mm²
Indoor - outdoor connection cable 4 x 1.5 mm²
Electrical protection 25 Am.
Height x Width x Depth 710 x 840 x 330 mm
Net weight 57 kg
