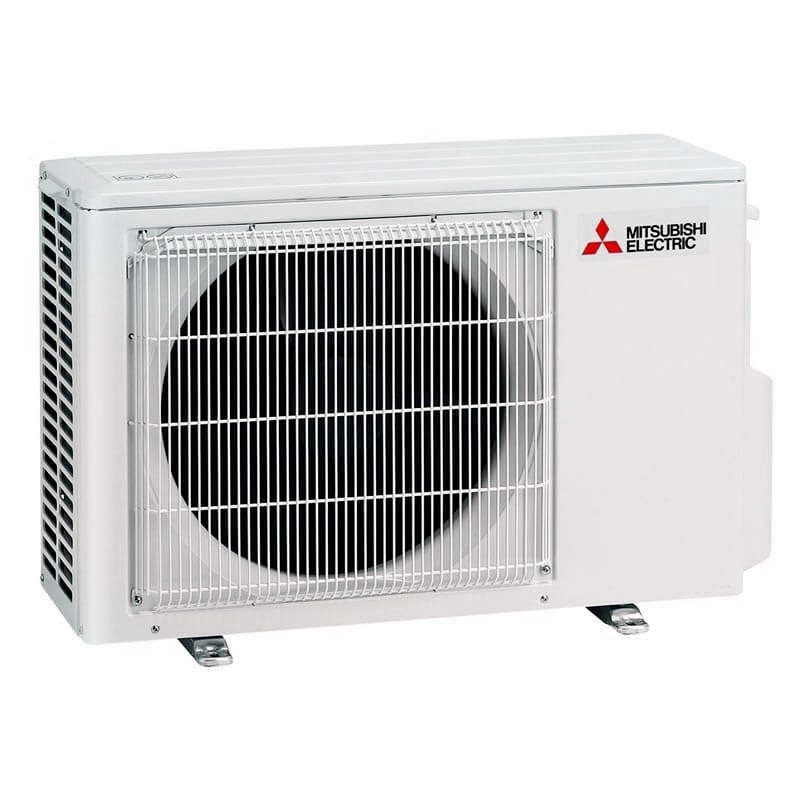

Mitsubishi MXZ-2HA40VF outdoor unit
MXZ-2HA40VF2 outdoor unit
Cooling capacity index 2 kW
Number of connectable indoor units min / max 2 / 2
Characteristics of the unit in cooling mode cooling capacity (min / max) kW 1.10 / 4.30
Power absorbed at +35°C (nominal) kW 1.05
Seasonal label A++
SEER 8.12
Annual energy consumption kWh 172
Operating range °CDB -10 to +46
Performance / Seasonal performance
Characteristics of the unit in heating mode, heating capacity at +7°C (min / nom. / max.) kW 1.00 / 4.30 / 4.70
Power restored at -7°C (min / nom. / max.) kW 1.00 / 2.90 / 3.00
Total nominal power consumption kW 0.910
COP 0.473
Seasonal label A+
SCOP °CDB 4.30
Operating range °CDB -15 to +24
Outdoor unit
Air flow in cooling GV m3/h 1704
Acoustics Sound pressure in cooling at 1 m GV dB(A) 44
Sound power in cooling GV 59
Refrigeration data fluid R-32
Precharged length 30.0 meters
Precharge 0.90 kg
Tonne equivalent CO² T 0.61
Liquid diameter " 2 x 1/4
Gas diameter " 2 x 3/8
Max length 30 meters
Max height difference 15 meters
Electrical data Power supply per outdoor unit V⁓50Hz 230V (1P+N+T)
Outdoor unit cable mm2 3G 2.5
Electrical protection A 16
Dimensions Height x Width x Depth mm 550 x 800 x 285
Weight 37 Kg
