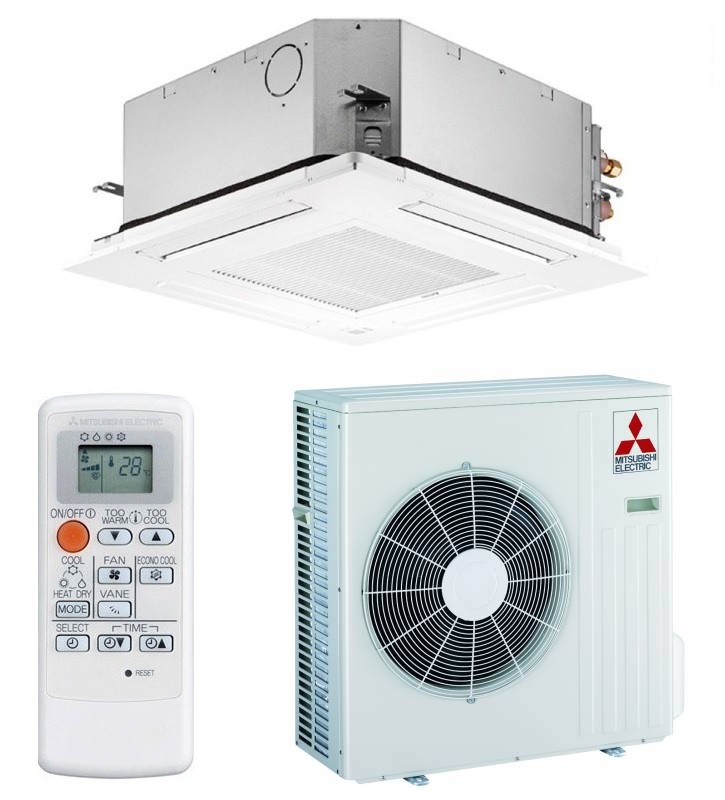

Mitsubishi MGPLZ-125YEA Cassette Air Conditioner
PLA cassettes have a series of features that allow air conditioning in a more intelligent and uniform way, creating very comfortable environments thanks to the optimization of the air temperature distribution, the "Wave Airflow" function is the most advanced technique in air oscillation, which allow an optimal movement of the horizontal and vertical air flow, reaching more points in the room

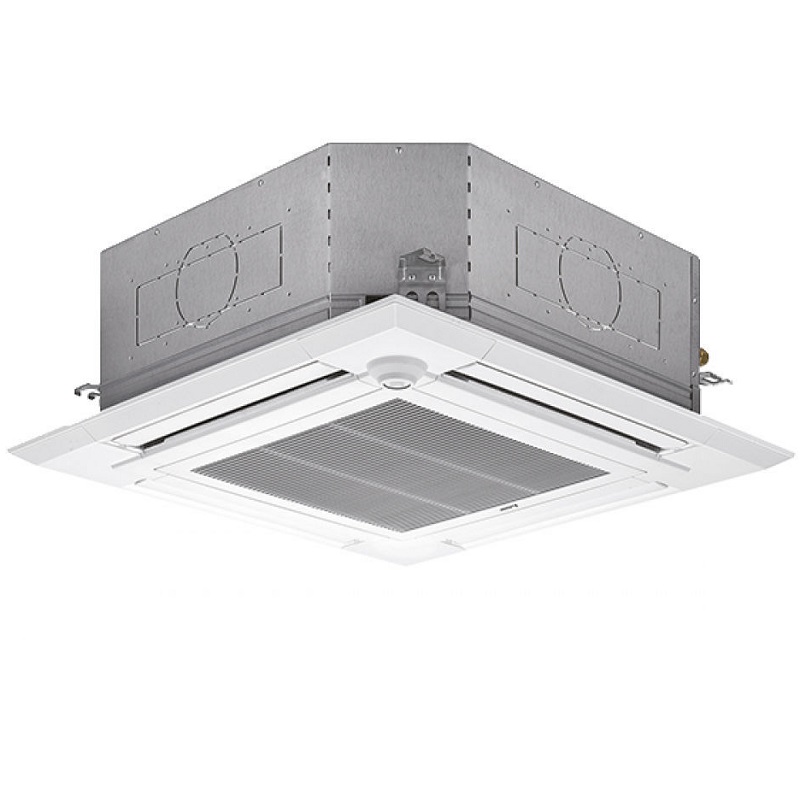

Indoor unit: PLA-SM125EA

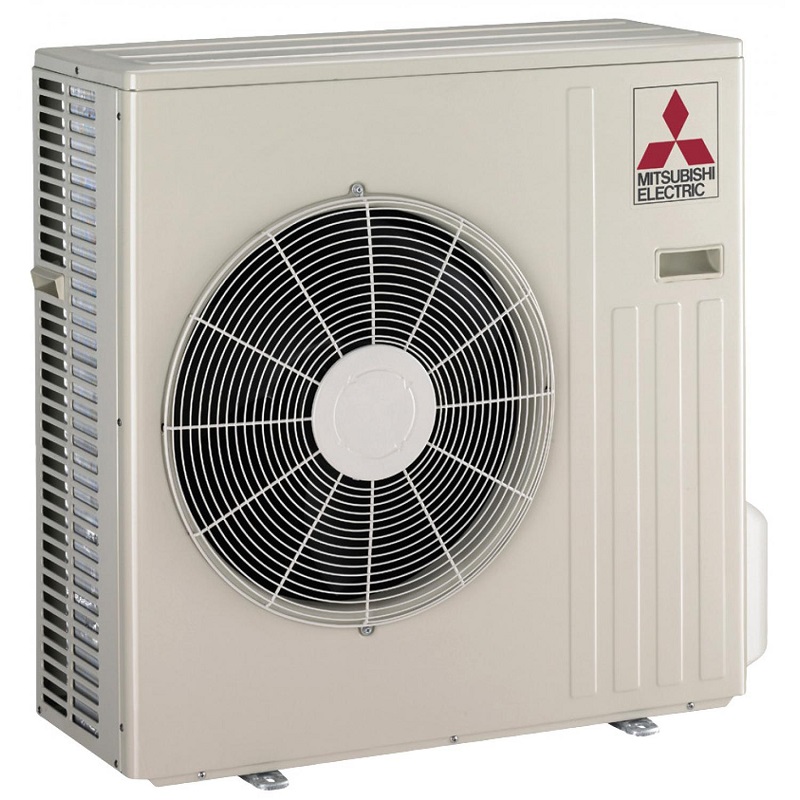

Outdoor unit: PUZ-SM125VKA
Nominal cooling capacity (min-max): 12.1 (5.8-13.0) kW
Nominal heating capacity (min-max): 13.5 (4.1-15.0) kW
Nominal consumption heating/cooling: 4.17/3.73 kW
Annual electricity consumption heating/cooling: -
EER/COP: 2.90 / 3.61, SEER: 225.2%, SCOP: 154.1%
Voltage/Phases-Current Max.: 230/1 - 20.5 A
Liquid/Gas Pipe Diameter: 9.52/15.88 mm
Max. Length. vertical pipe/total: 30/40 m
Indoor unit
Air flow (B/M2/M1/A): 21 / 25 / 28 / 31
Noise level (B/M2/M1/A): 33 / 37 / 41 / 44
Sound power: 65 dB
Outdoor unit
Air flow: 86 m3/min
Noise level: 54 dB
Sound power: 72 dB
R32 refrigerant: 1.45 kg pre-charge/675 GWP/0.98 TCO2eq
Dimensions
Indoor U (height x width x depth): 298 x 840 x 840 mm
Panel (height x width x depth): 40 x 950 x 950 mm
Outdoor U (height x width x depth): 981 x 1050 x 330 (+40)
