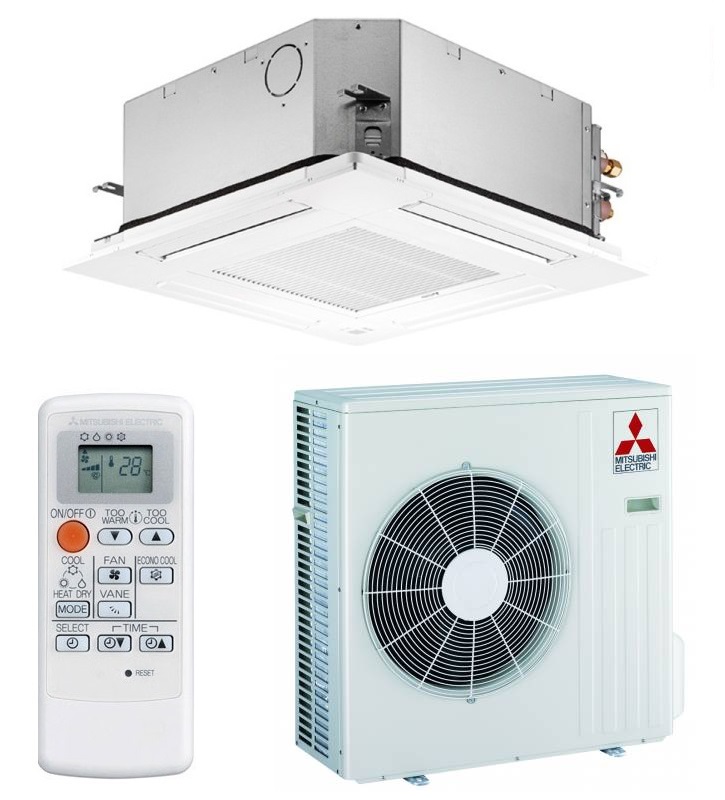

Mitsubishi MGPLZ-125VEA Cassette Air Conditioner
Presence detector, The 3D i-see sensor detects the number of people in the room and adjusts the machine's power consumption. This allows energy savings especially in spaces where the number of people changes, when the room is empty, the system switches to economy mode and even stops completely.
In addition, some people do not like the feeling of direct air, others like to be hot from head to toe. People's tastes and preferences vary, with the 3D i-see sensor, a total of eight sensors rotate 360º at 3-minute intervals to detect these imbalances and adjust the operation of the equipment. In addition, it is possible to choose between direct or indirect air mode of each slat, when the sensor detects the presence of people, it automatically adjusts the angle of the slat, allowing it to adapt to each person's preferences.
"Wave Airflow" function, PLA cassettes have a series of features that allow air conditioning in a more intelligent and uniform way, creating very comfortable environments thanks to the optimization of the air temperature distribution, the "Wave Airflow" function is the most advanced slat oscillation technique that allows an optimal movement of the horizontal and vertical air flow, thus reaching more points in the room.

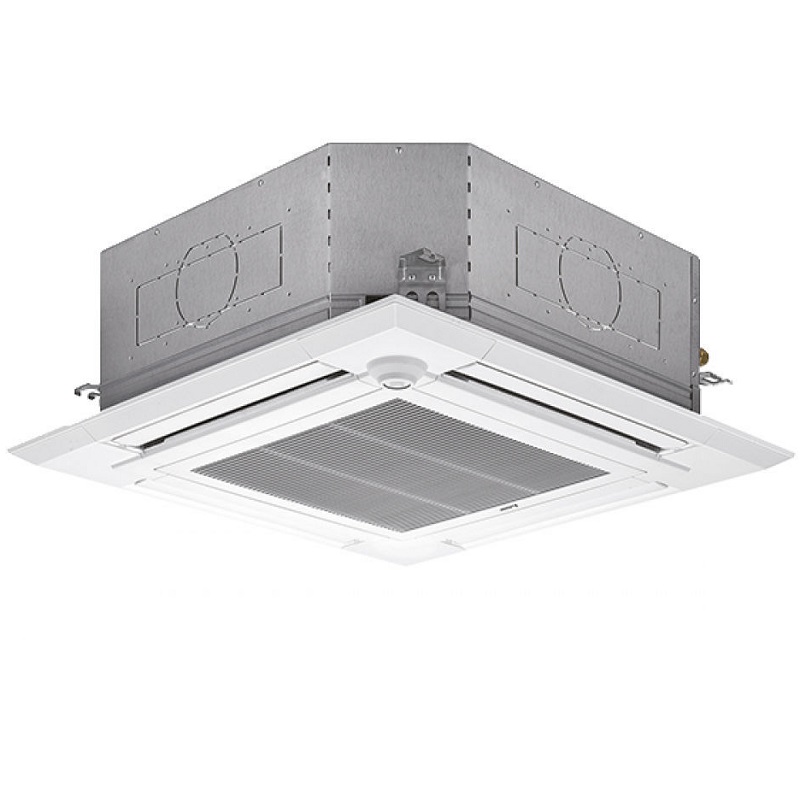

Indoor unit: PLA-SM125EA

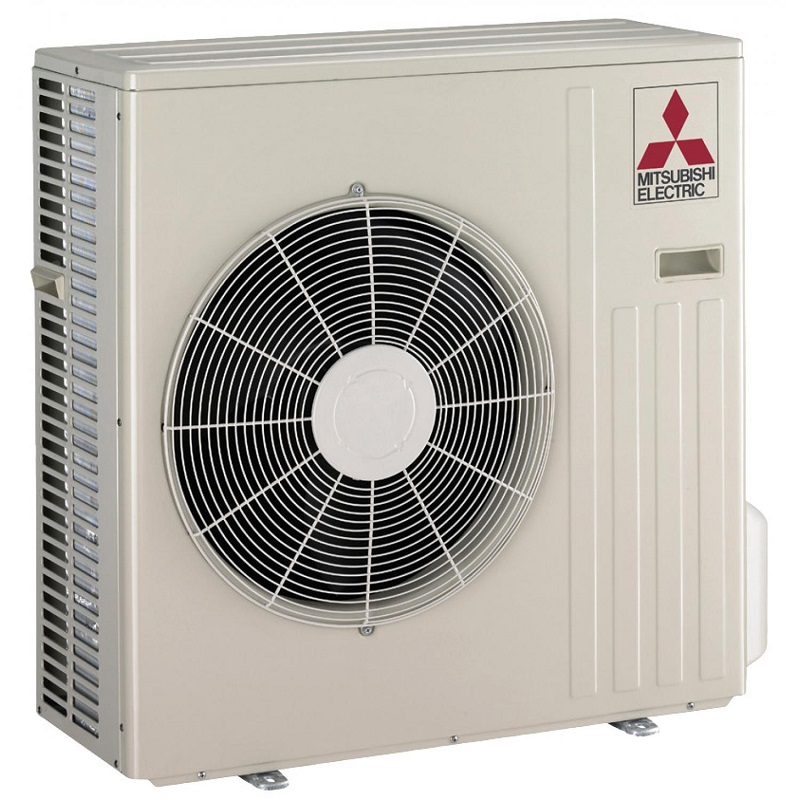

Outdoor unit: PUZ-SM125VKA
Nominal cooling capacity: 12.1 kW
Nominal heating capacity: 13.5 kW
EER/COP: 2.90 / 3.61, SEER: 5.5 (A), SCOP: 154%
Indoor unit sound power: 65 dB(A)
Outdoor unit sound power: 72 dB(A)
Refrigerant gas: R32
Maximum vertical/total pipe length: 30/40 m
Outdoor temperature operating range for cooling: -15 ~ +46 ºC
Outdoor temperature operating range for heating: -15 ~ +24
Pipe diameter (Liquid/Gas): 3/8 - 5/8"
Indoor unit dimensions (height x width x depth): 298 x 840 x 840 mm
Panel weight: 5 Kg
Panel dimensions (height x width x depth): 40 x 950 x 950 mm
Indoor unit weight: 26 Kg
Outdoor unit dimensions: 981 x 1,050 x 330 (+40) mm
Outdoor unit weight: 84 Kg
