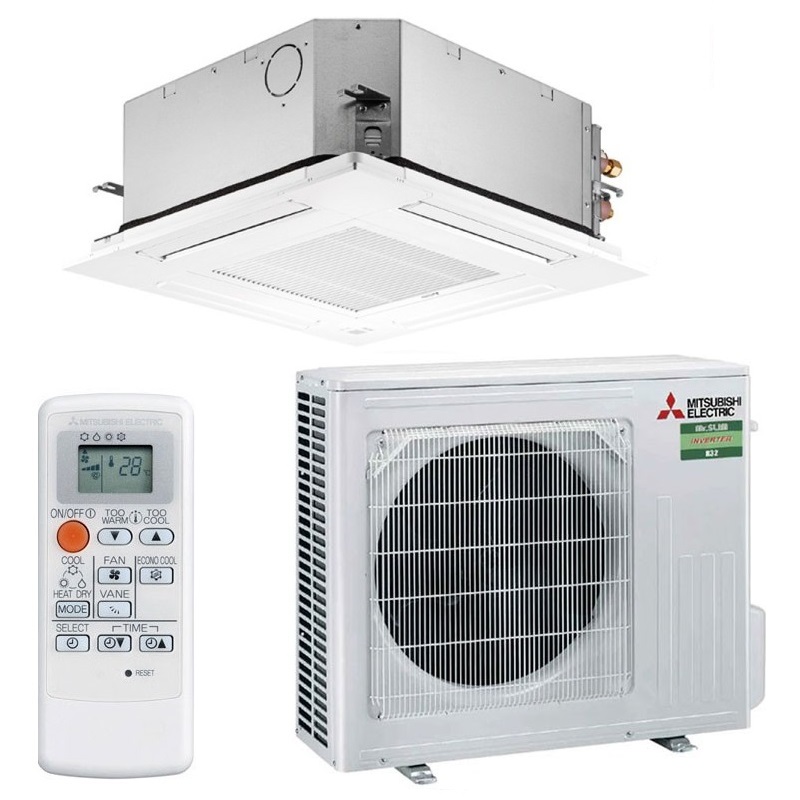

Mitsubishi MGPLZ-100YEA Cassette Air Conditioner

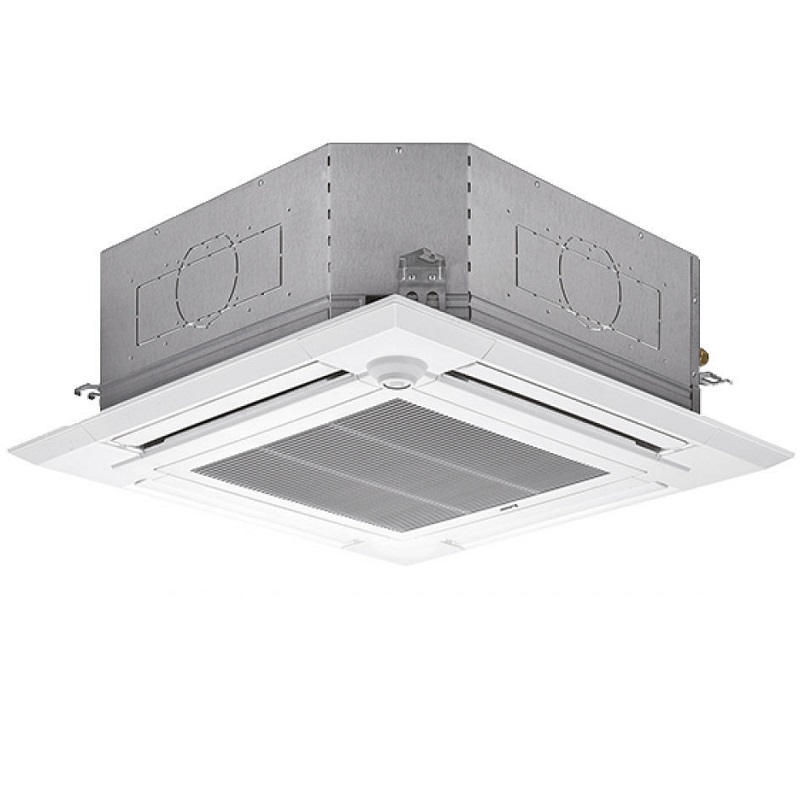

The PLA cassette series has been specially designed for commercial use and fits perfectly into any environment thanks to its attractive design, in addition, thanks to the optional 3D-I-see-Senser, it maintains the highest levels of comfort with uniform temperature distribution, the new PLA cassette features a renewed and stylized design with an improvement in energy efficiency of up to 15% both in combination with the standard Inverter and with Power Inverter and High Cop.
Manufacturer Mitsubishi Electric

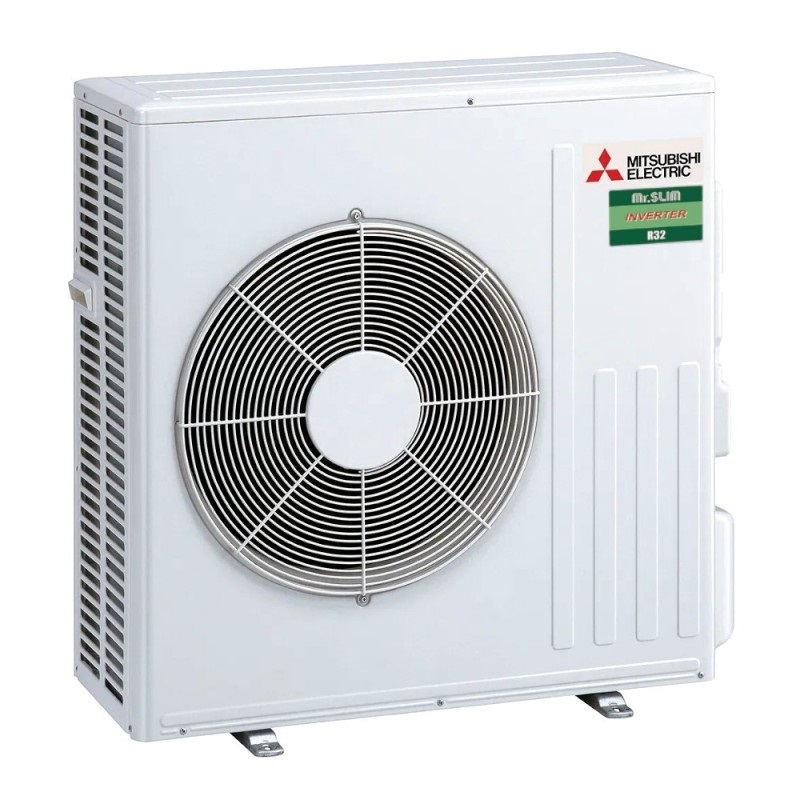

SKU Outdoor unit PUZ-SM100YKA
SKU Indoor unit PLA-SM100EA
Refrigeration 8170 (kcal/h)
Heating 9632 (kcal/h)
Seasonal cooling efficiency A+
Seasonal thermal efficiency A+
Consumption cost /h 0.27 €

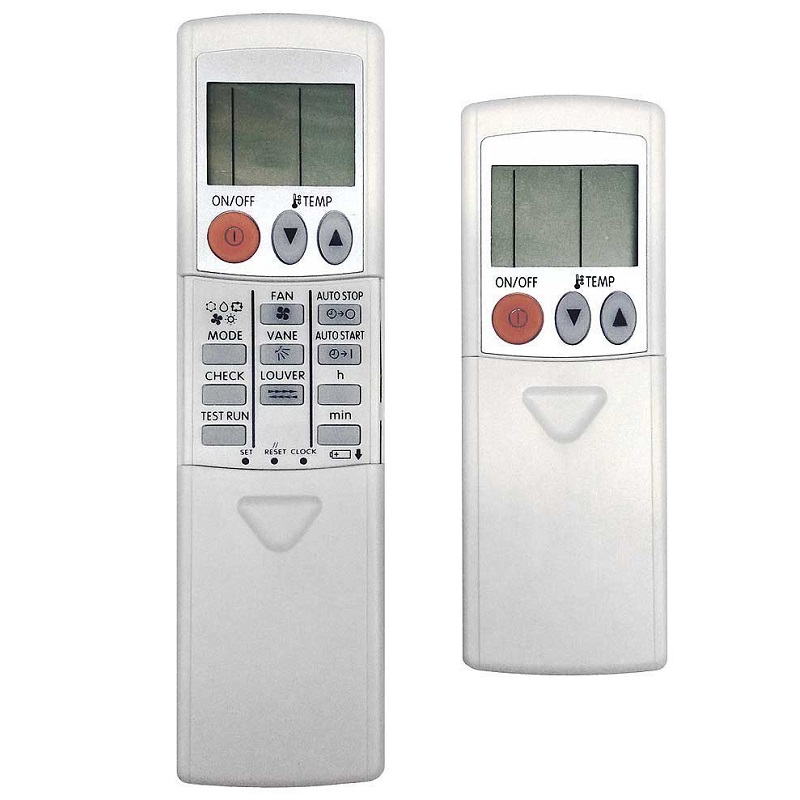

Optional Wifi control
Three-phase power supply
Cooling sound pressure 31 dB
Heating sound pressure 31 dB
Refrigerant gas R32
Refrigerant gas included charge 3.1 Kg
Liquid/gas pipe diameter 3/8" - 5/8"
Maximum total pipe length 30
Maximum vertical pipe length 30
Cold working limit ºC -15
Heat working limit ºC -15
Indoor unit height 298 mm
Width of indoor unit 840 mm
Indoor unit depth 840 mm
Outdoor unit height 981 mm
Outdoor unit width 1050 mm
Outdoor unit depth 330 mm
Compressor warranty 3 years
