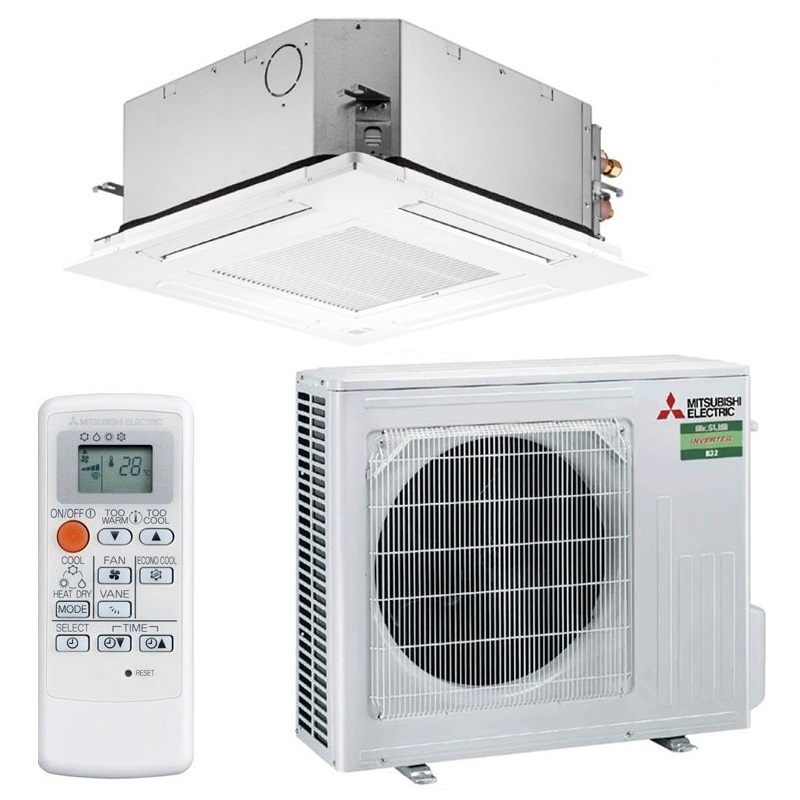

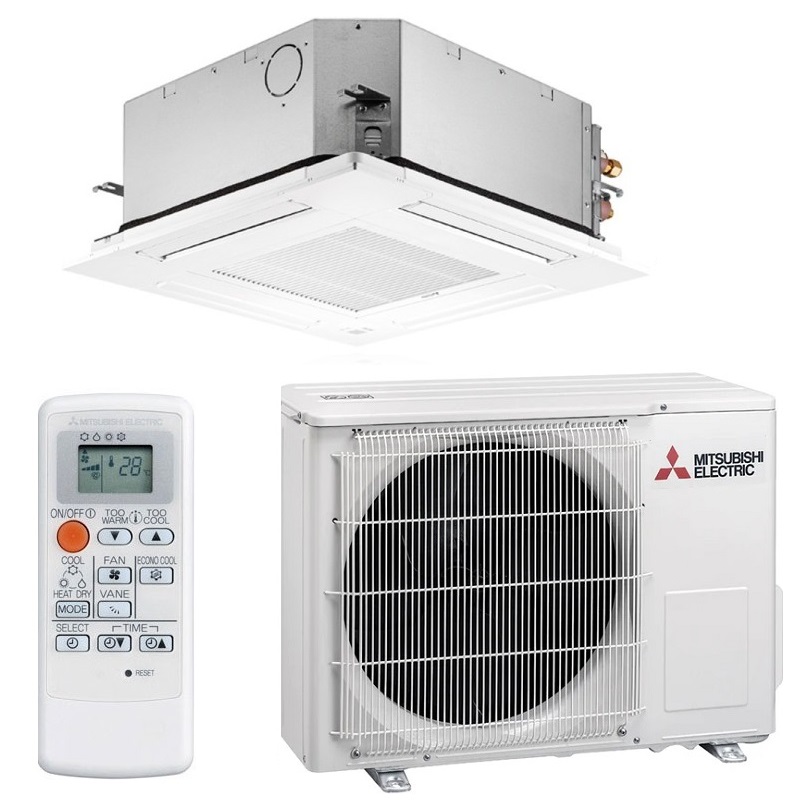

Mitsubishi MGPEZ-100 VEA Cassette Air Conditioner
The Mitsubishi Electric MGPLZ-100VEA cassette inverter air conditioner with heat pump delivers a cooling capacity of 9.4 kW and a heating capacity of 11.2 kW, recommended for cooling rooms with a maximum surface area of 75 square meters, it is of energy class A/A, with a power consumption of 3 kW, the noise levels of the indoor unit are between 32/40 dB for the indoor unit and 51 dB for the outdoor unit.
Indoor unit: PLA-SM100EA
Outdoor unit: PUZ-SM100VKA
Nominal cooling capacity (min-max): 9.5 (4.0-10.6) kW
Nominal heating capacity (min-max): 11.2 (2.8-12.5) kW
Nominal consumption heating/cooling: 2.79/3.10 kW
Annual electricity consumption heating/cooling: 554/2482 kWh/year
EER/COP: 3.40/3.61, SEER: 6.0 (A+), SCOP: 4.5 (A)
Voltage/Phases-Current Max.: 230/1 - 20.5 A
Liquid/Gas pipe diameter: 9.52/15.88 mm
Max. length. vertical pipe/total: 30/30 m

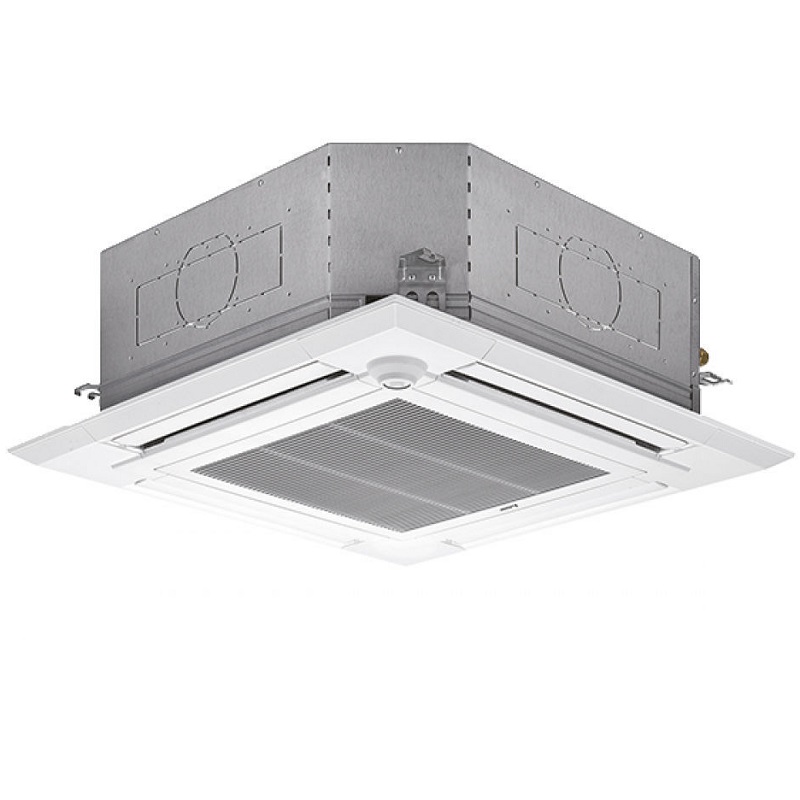

Indoor unit
Air flow (B/M2/M1/A): 19 / 23 / 26 / 29 1
Noise level (B/M2/M1/A): 31 / 34 / 37 / 40
Sound power: 61 dB

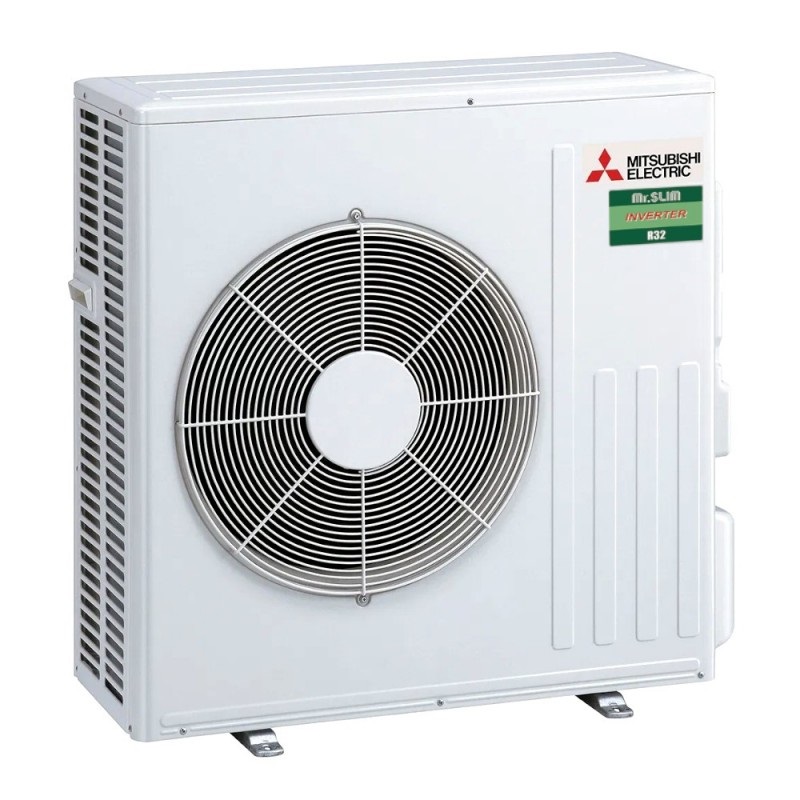

Outdoor unit
Air flow: 79 m3/min
Noise level: 51 dB
Sound power: 70 dB
Refrigerant R32
Dimensions
Indoor unit (height x width x depth): 298 x 840 x 840 mm
Panel (height x width x depth): 40 x 950 x 950 mm
Outdoor unit (height x width x depth): 981 x 1,050 x 330 (+40) mm
