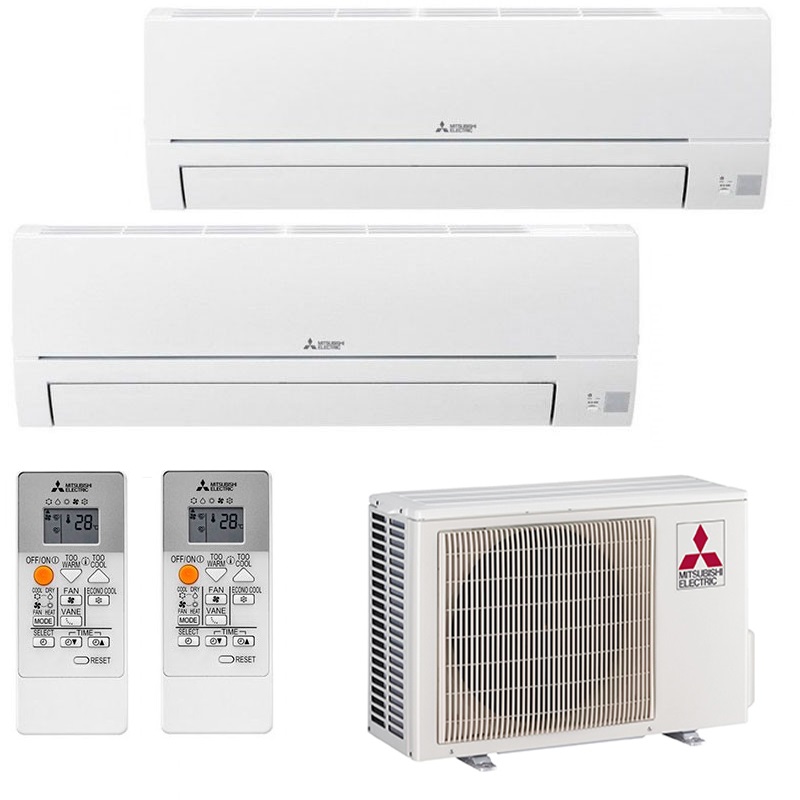

Mitsubishi bi-split air conditioner MXZ-HR2535E50VFK 2.5 + 3.5 kW. EXT. 5.0 kW

Mitsubishi bi-split air conditioner MXZ-HR2535E50VFK 2.5 + 3.5 kW. EXT. 5.0 kW

The Mitsubishi Electric MXZ series presents itself as the best solution for air conditioning multiple rooms with a single outdoor unit, offering great versatility of installation and space saving, providing, at all times, maximum comfort and maximum energy efficiency.

Model MXZ-HR2535E50VFK with R32 refrigerant and composed of an outdoor unit MXZ-2HA50VFK and two indoor units of the HR series, models MSZ-HR35VFK and MSZ-HR25VFK with energy classification A++ and a noise level of only 21 dB in the indoor units.

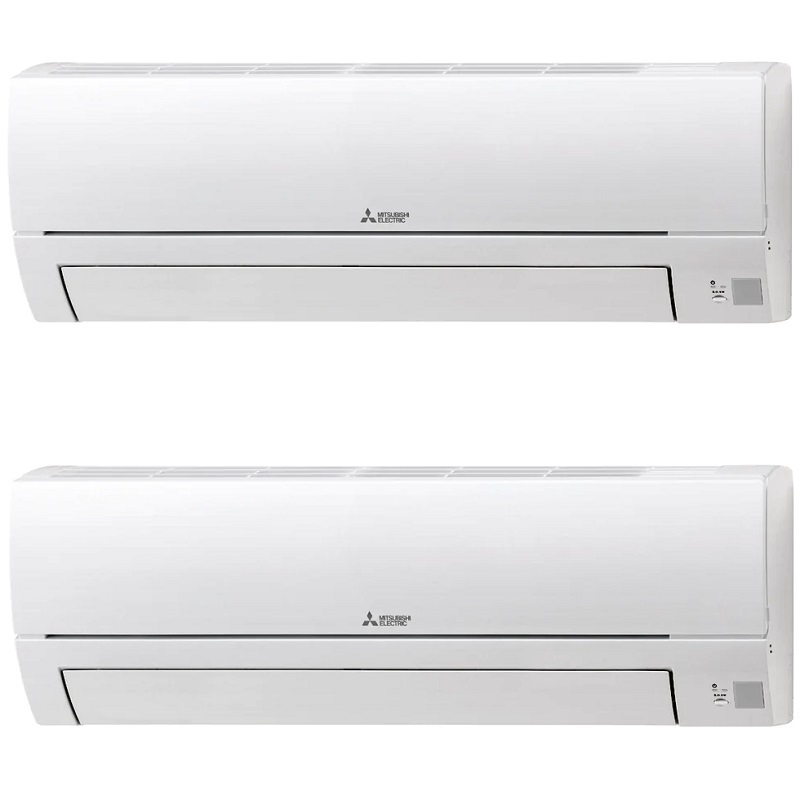

Indoor unit MSZ-HR35VFK
Nominal cooling capacity (min-max): 3.4 Kw
Nominal heating capacity (min-max): 3.6 kW
Capacity kCal/h cooling: 2,924
Capacity kCal/h heating: 3,096
Air flow (L/M/A): 3.6/5.6/7.8/11.7 m3/min
Noise level (L/M/A/M): 22/31/38/46 dB
Dimensions (H. x W. x D.): 280 x 838 x 228 mm
Weight: 8.5 kg
Indoor unit MSZ-HR25VFK
Nominal cooling capacity (min-max): 2.5 Kw
Nominal heating capacity (min-max): 3.15 kW
Capacity kCal/h cooling: 2,150
Heating capacity kCal/h: 2,709
Air flow (L/M/A): 3.6/5.4/7.2/9.7 m3/min
Noise level (L/M/A/M): 21/30/37/43 dB
Dimensions (H. x W. x D.): 280 x 838 x 228 mm
Weight: 8.5 kg

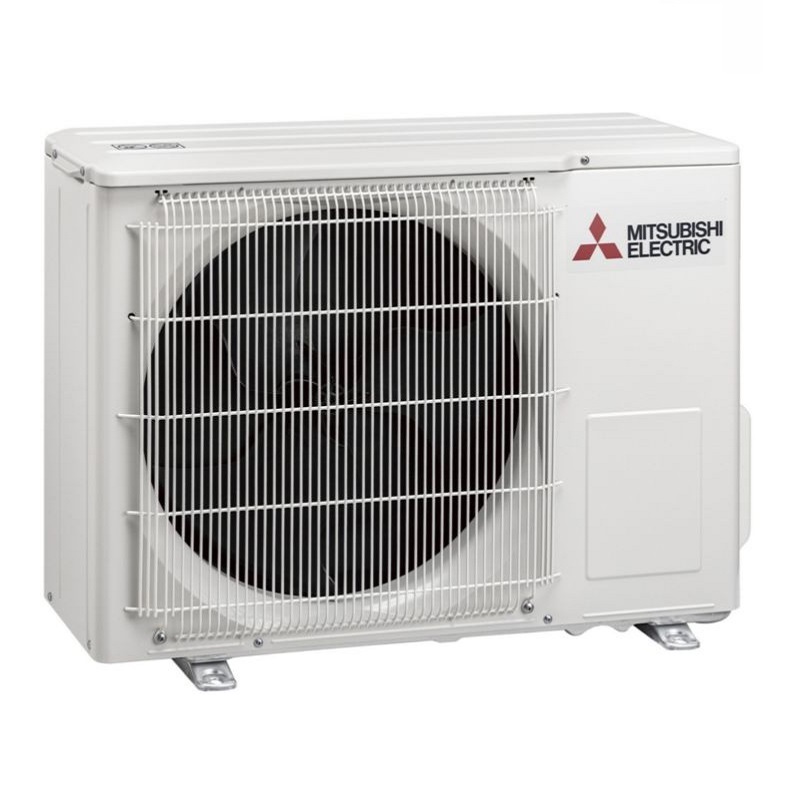

MXZ-2HA50VFK outdoor unit
Nominal cooling capacity (min-max): 5 (1.1-5.4) kW
Nominal heating capacity (min-max): 6 (1-6.4) kW
Cooling kCal/h capacity: 4,300 kCal/h
Heating kCal/h capacity: 5,160 kCal/h
Nominal cooling consumption: 1.52 kW
Nominal heating consumption: 1.54 kW
Annual electricity consumption hot/cold: 225/1,043 kWh/year
EER/COP: 3.29/3.90
SEER: 7.78 (A++)
SCOP: 4h30 (A+)
Air flow: 32.7 m3/min
Noise level: 47 dB
Sound power: 64 dB
R32 pre-charge: 0.9 kg
Voltage/Phases-Maximum current: 230 V/1F-12.2 A
Liquid/gas pipe diameter: 6.35 x2 / 9.52 x2
Maximum vertical/total pipe length: 15 (10)/30 meters
Maximum pipe length per u. interior: 20 meters
Dimensions (H. x W. x D.): 550 x 869 x 344.50 mm
Weight: 37 kg
