Hanna Instruments BL 983327-1 Mini pH Controller

Hanna Instruments BL 983327-1 Mini pH Controller

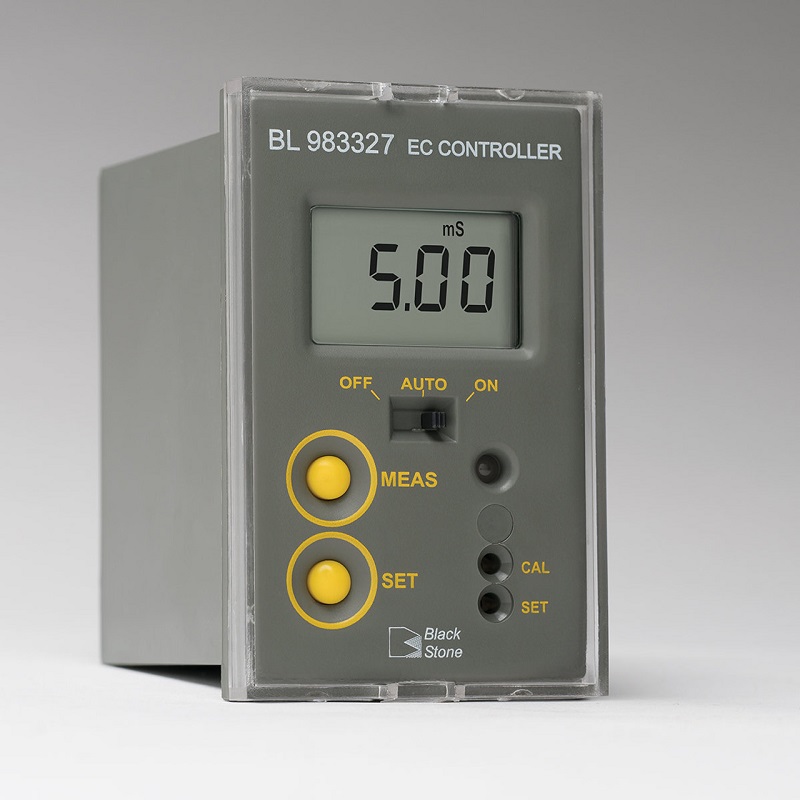

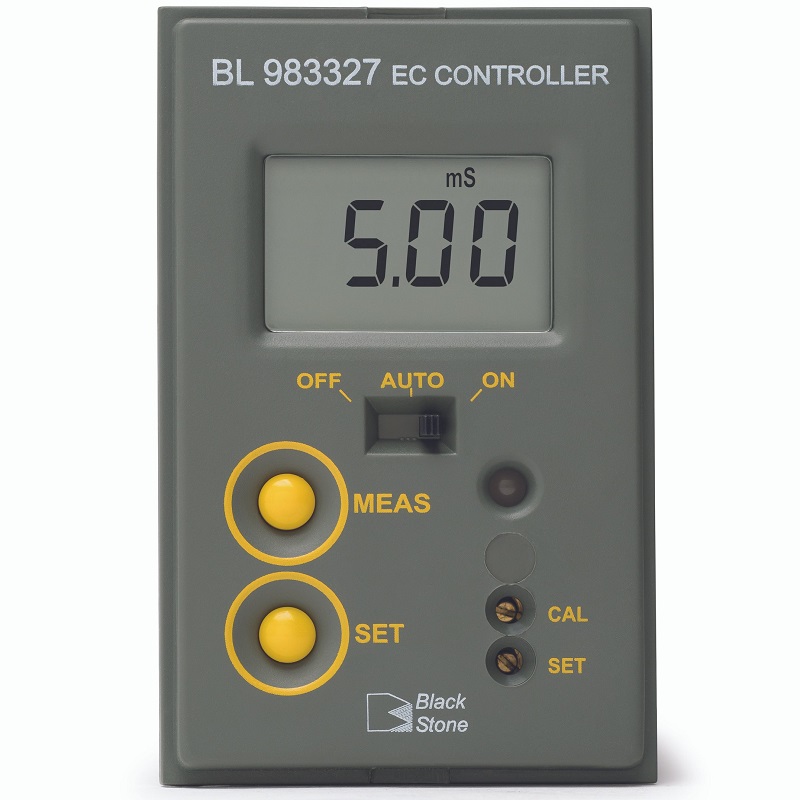

The BL983327 is a compact, panel-mounted process controller for measuring the conductivity of a process stream. It features a large LCD display with a protective cover. The user can select between automatic and manual dosing modes. In automatic mode, the dry contact relay activates when the measured value exceeds the setpoint. This relay can be used to activate a solenoid valve to open and drain a tank (e.g., to vent and feed a boiler) or to add fresh water until the desired setpoint is reached. The BL983327 is a similar product, offering the same measurement range, but with a relay that activates when the measured value falls below the setpoint. Multicolor LED indicator: the LED changes color depending on the status.

Range: 0.00 to 10.00 mS/cm
Resolution: 0.01 mS/cm
Accuracy: ± 2% of full rise (25°C/77°F)
Calibration: Manual, with CAL risk
Dosing Relay: Maximum 2A (fused), 250 VAC, 30 VDC
Dosage Selection: Relay activated (contact closed) when the medication exceeds the set point
Set Point: Adjustable from 0 to 10 mS/cm
Overdose Protection: Adjustable, typically from 5 to approximately 30 minutes
Temperature Compensation: Automatic from 5 to 50°C (41 to 122°F) with beta = 2% / ºC

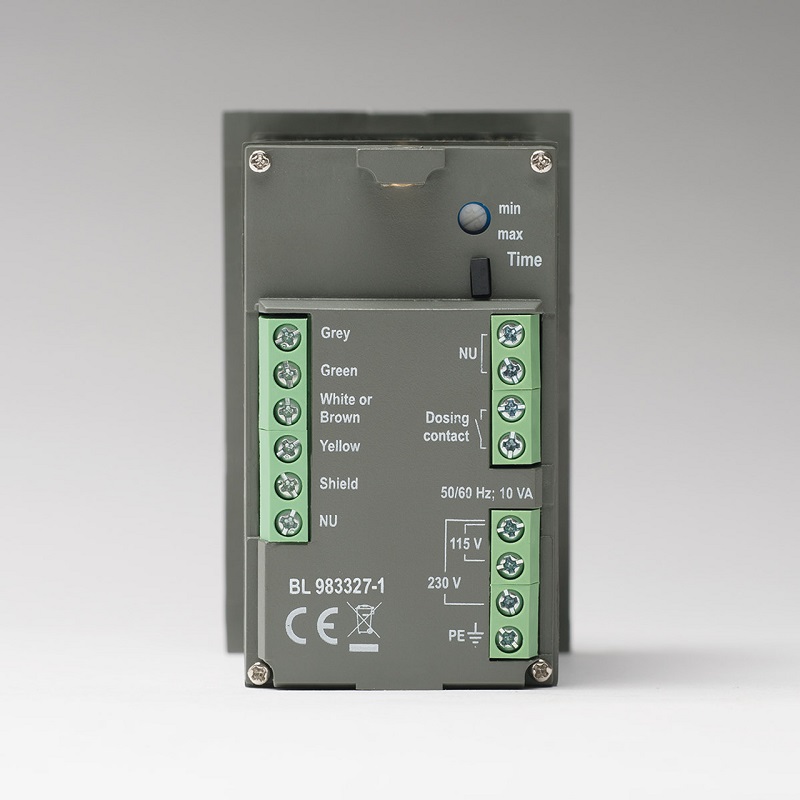

Power Source: "-0" Models: 12 VDC adapter (included)
"-1" Models: 115/230 VAC; 50/60 Hz
"-1" models: 300 g (10.6 oz)
Ordering Information: The BL983327-0 (12 VDC) and BL983327-1 (115/230 VAC) are connected to the mounting brackets.
Transparent cover and instruction manual.
Dimensions: 83 x 53 x 99 mm (3.3 x 2.1 x 3.9 in)
Weight: "-0" models: 200 g (7.1 oz)
