Midea MCD-140(48)N8R-2 Cassette Air Conditioner
The appliances stand out for their detailed design as they have a low profile for better adaptation to low ceilings, it is also worth highlighting their compact design.
The compact cassettes have a control that favors the control of the indoor unit, they have a 360º air flow in order to better distribute the air throughout the space.
These appliances achieve high energy efficiency and high performance values, the outdoor units have a robust aesthetic and high performance, highlighting their noise reduction.
Capacity
Nominal refrigerator (min./max.) 14.07 kW
Nominal heating capacity (min./max.) 16.12 kW
Nominal cooling (min./max.) 4,650 (800-5,900) W
Nominal heating (min./max.) 4,580 (900-5,500) W
Outdoor temperature for cooling min./max. ºC -15 ºC/50 ºC
Outdoor temperature for heating min./max. ºC -15 ºC/24 ºC
Energy efficiency
EER 3.03 COP 3.5 SEER 6.1 A++ SCOP 4 A+
Indoor unit MCD-48NX
Air flow (bj/me/al) 1600/1750/1900 m³/h
Sound pressure (bj/me/al) 48/50.5/52.5 dB(A)
Sound power level 66 dB(A)
Width/height/depth 830/287/830 mm
Weight 29.3 kg
Power supply with communication
Power wiring with communication
Panel model T-MBQ4-04A1
Panel dimensions WidthxHeightxDepth 950x55x950 mm

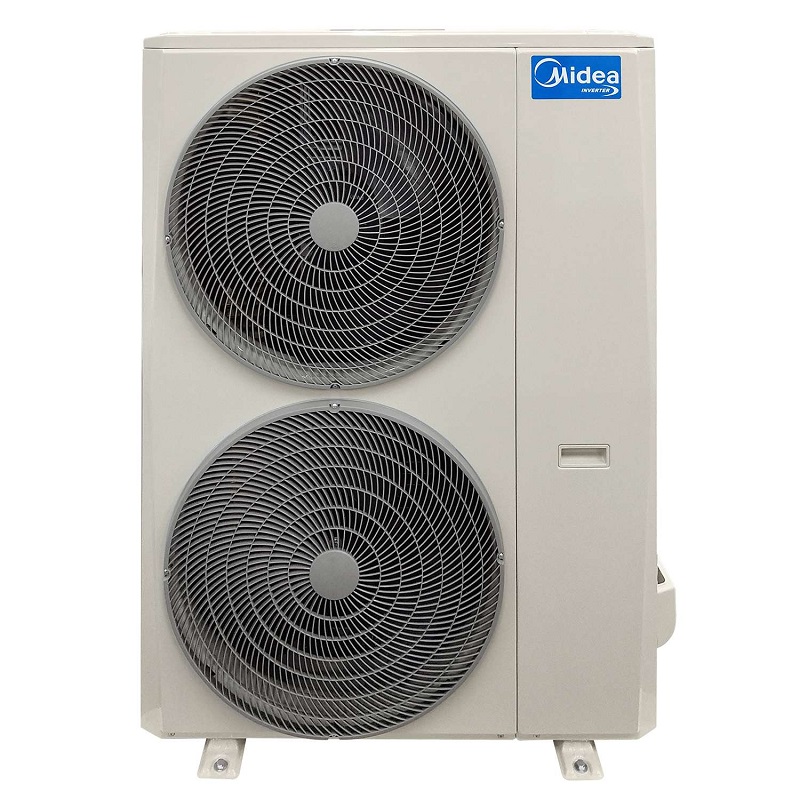

Outdoor unit MO-48N8
Compressor Type Rotary
Air Flow 7500 m³/h
Sound Pressure 63.5 dB(A)
Sound Power Level 74 dB(A)
Width/Height/Depth 952/1333/415 mm
Weight 103.7 kg
Power V/f/Hz 380-415/3/50
Power Wiring (4+T)x2.5 mm²
Shielded Communication Wiring 4x1 mm²
Refrigerant
Refrigerant Type R-32
Factory/Additional Charge 2.9/0.024 kg
Liquid/Gas Pipe Diameter in 3/8”5/8”
Max. Total/Vertical Pipe Length 75/30 m
