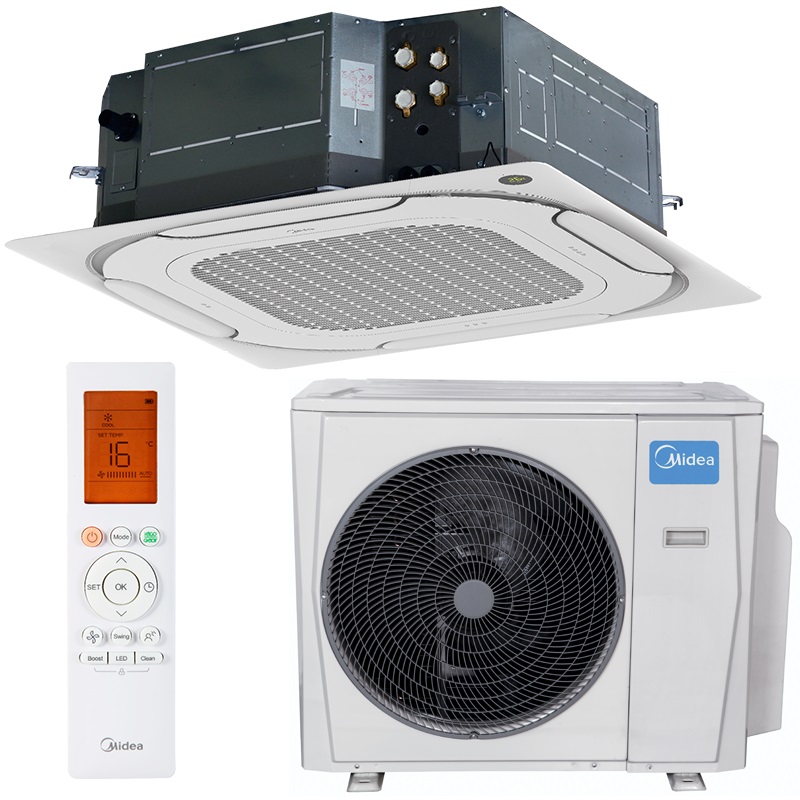

Midea MCD-105(36)N8R-1 Cassette Air Conditioner
The devices stand out for their detailed design as they have a low profile for better adaptation to low ceilings, it is also worth highlighting their compact design.

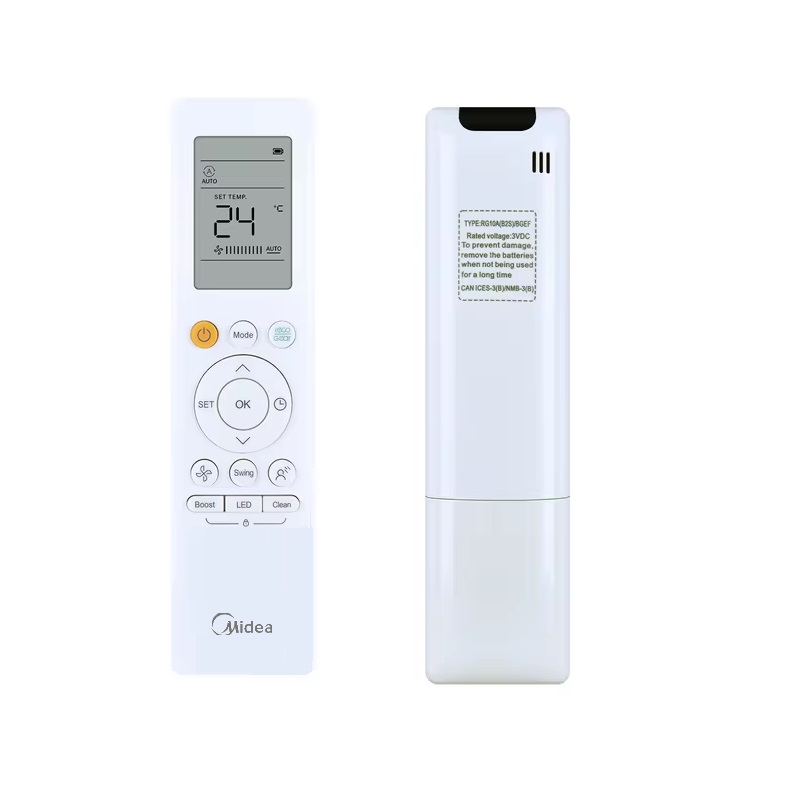

The compact cassettes have a control that favors the control of the indoor unit, they have a 360º air flow in order to better distribute the air throughout the space.
These devices achieve high energy efficiency and high performance values, the outdoor units have a robust aesthetic and high performance, highlighting their noise reduction.
Outdoor temperature for cooling min./max. ºC -15ºC/50ºC
Outdoor temperature for heating min./max. ºC -15ºC/24ºC
Refrigerant Type R-32
Factory/Additional Charge kg 2.4/0.024
Liquid/Gas Pipe Diameter in 3/8”5/8”
Maximum Lenght. total pipe/vertical m 75/30
Midea MCD-105(36)N8R-1
360° airflow
Easy maintenance
High technology level
Inverter technology
Energy label (cool) A++
Energy label (heat) A+++

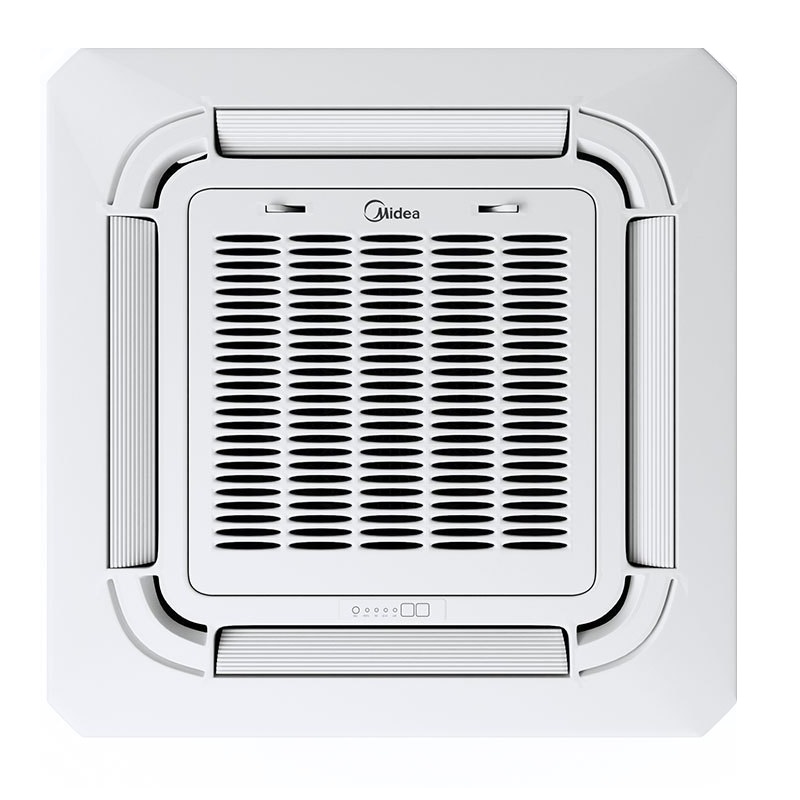

Indoor unit
Air flow (low/medium/high) m³/h 1300/1530/1700
Sound pressure (low/medium/high) dB(A) 46/49/51
Sound power level dB(A) 64
Power supply with communication
Power wiring with communication
Width/height/depth mm 830/245/830
Weight 27.5 kg

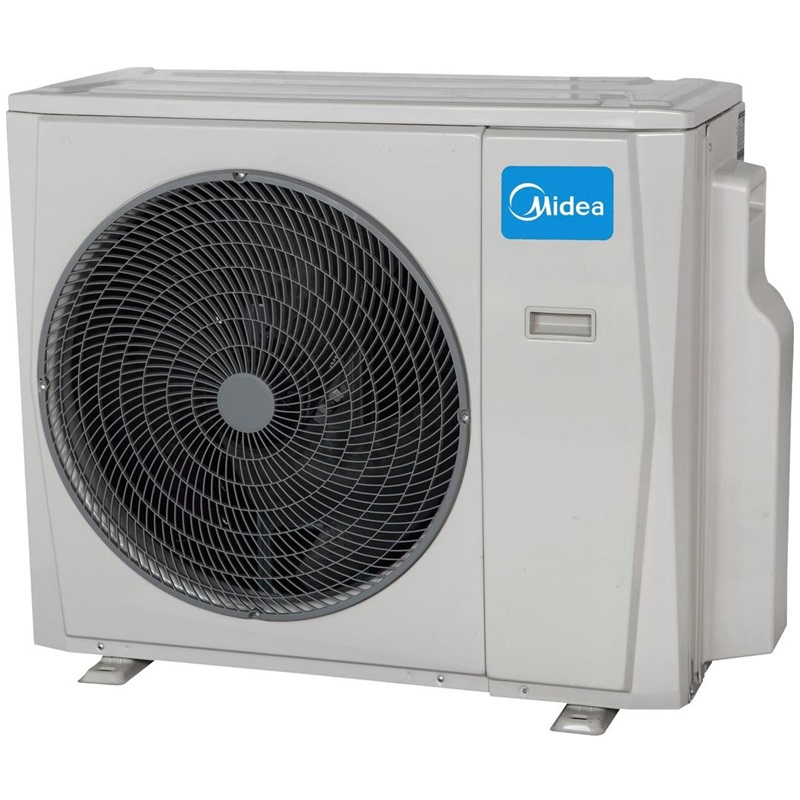

Outdoor unit
Compressor type Rotary
Air flow m³/h 4000
Sound pressure dB(A) 63
Sound power level dB(A) 70
Power V/f/Hz 380-415/3/50
Power wiring mm² (4+T)x2.5
Screened communication wiring mm² 4x1
Refrigerant R32
Width/height/depth mm 946/810/410
Weight 66.9 kg
