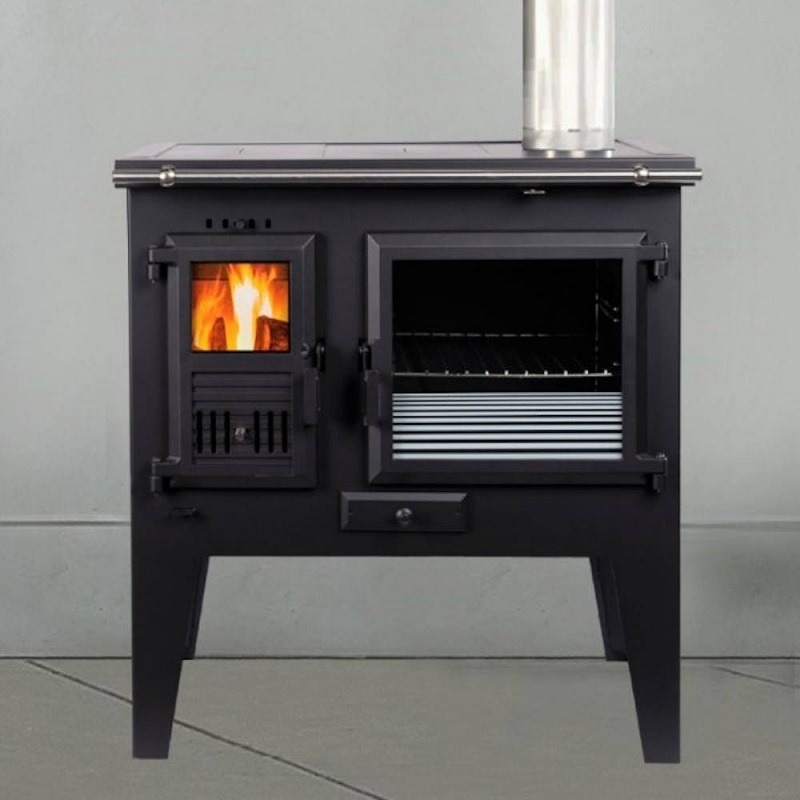

Metlor wood stove, ME700
The ME700 is a wood stove, the internal and external structure is made of 2 mm special steel sheet, the oven is made of 1.5 mm carbon steel and the top is made of 6 mm thick carbon steel, the Doors are made of cast aluminum and with 5 mm thickness. thick high temperature glass heat treated up to 700ºC.
The painting is carried out with high temperature paint, all the parts inherent to the device are in steel, smoke outlet on the right or left side (optional), possibility of top and oven in stainless steel (optional). ), includes an iron rod front guard.
Rated power 8.9 kW
Yield 81%
CO(%) (13%O2) 0.12
Gas temperature 179ºC
Particles 68, 113, 22 mg/m3
Maximum length. of firewood 400 mm
Smoke outlet Ø 150 mm
Dimensions (HxWxD) 825x830x535 mm
Oven dimensions (HxWxD) 280x370x470 mm
Oven dimensions (HxWxD) 300x200x470 mm
Weight 128 kg
