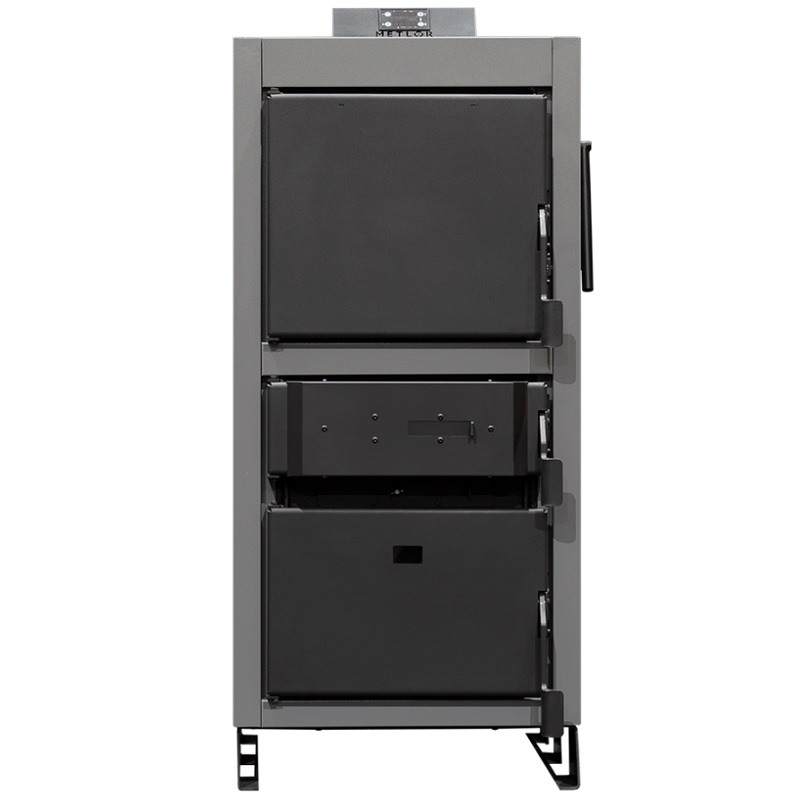

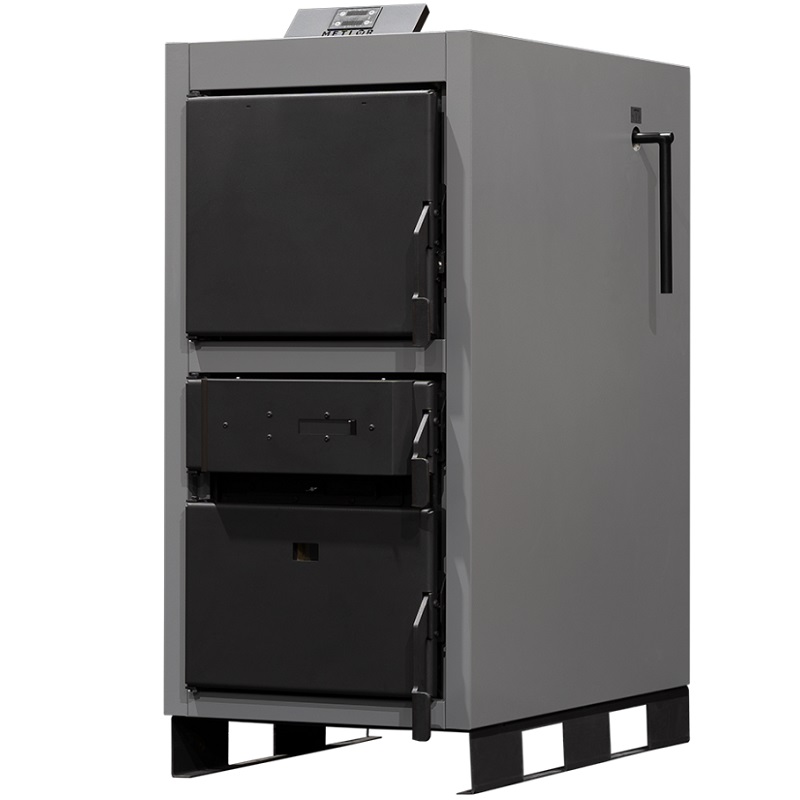

Metlor PM 40 Wood Boiler

Metlor PM 40 Wood Boiler

The PM 40 is a reverse flame wood boiler suitable for central heating and domestic water, large and high chamber for fuel loading, optimizing the gasification process, double-walled dry fuel loading chamber, less condensation, higher gasification rate and easier surface cleaning.

Automatic smoke diversion system activated when the loading door is opened, automatic deactivation when there is no fuel, smoke sensor, high efficiency thanks to the tubular water heating surface with smoke exchanger, integrated safety coil to protect against overheating.

Elegant electronic control panel with well-organized function buttons and large LCD display, room thermostat connection. Primary and secondary air regulation, status and fault indicators, energy saving and safety functions thanks to an advanced performance electronic card.

Nominal power: 40.18 kW
Income: 93.07%
Power delivered to water: 40.18 kW
Boiler water capacity: 140 liters
Maximum water temperature: 90ºC
Gas temperature: 129ºC
NOx, Particles: 188, 7, 8mg/m3
CO(%) (13% O2) 0.014
Maximum length of firewood: 500 mm
Smoke outlet: Ø 150 mm
Weight: 450 kg
Dimensions: (HxWxD) 1387 x 663 x 1255 mm
