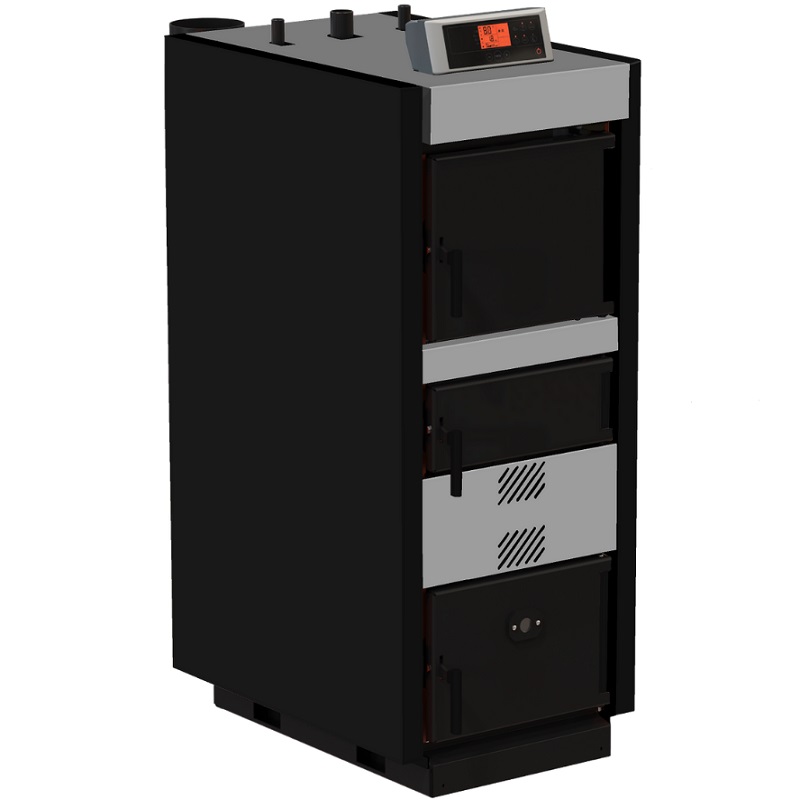

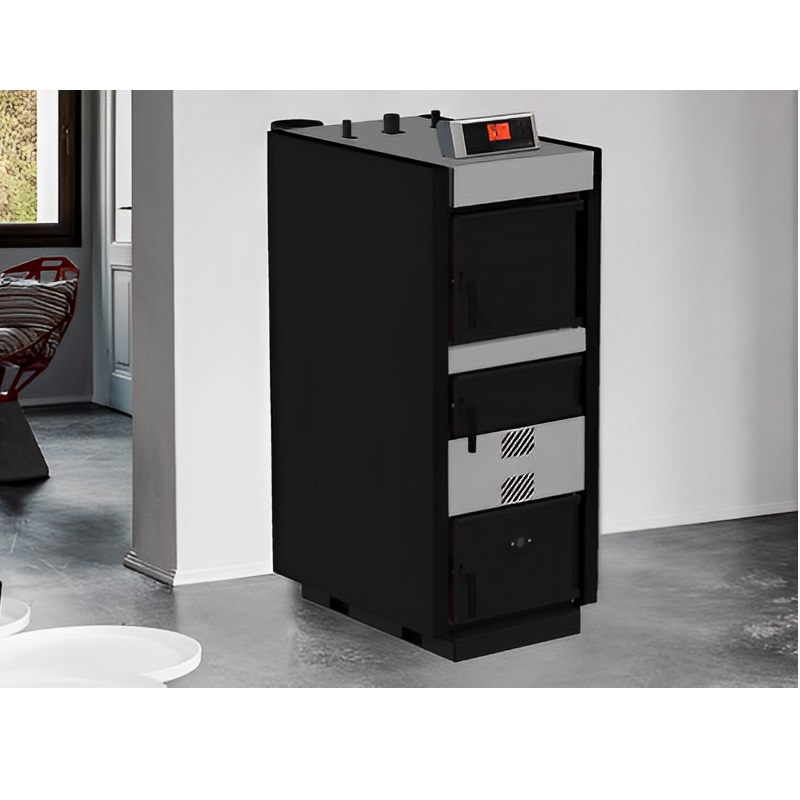

Metlor CL40 Pyro Evolution Wood Boiler

Metlor CL40 Pyro Evolution Wood Boiler

The CL40 Pyro Evolution boiler is a reverse flame wood boiler suitable for central heating and domestic water,
Large and high fuel loading chamber, optimizing the gasification process double-walled dry fuel loading chamber, less condensation, higher gasification rate and easier surface cleaning,
Automatic smoke diversion system activated when the loading door is opened,
Automatic deactivation when there is no fuel, smoke sensor,

High efficiency thanks to the tubular water heating surface with smoke exchanger,
Integrated safety coil, for overheating protection,
Elegant electronic control panel with well-arranged function buttons and large LCD display,
Status and operating fault indicators, energy saving and safety functions thanks to an advanced performance electronic card.

Nominal power: 40 kW
Efficiency: 90.6%
Power delivered to water: 40 kW
Boiler water capacity: 124 liters
Maximum water temperature: 90 ºC
Gas temperature: 130ºC
NOx, VOC, Particles: 190, 25, 24mg/m3
CO(%) (13% O2) 0.016
Maximum length of firewood: 500 mm
Smoke outlet: Ø 160 mm
Weight: 580 kg
Dimensions (HxWxD): 1545 x 595 x 1175 mm
