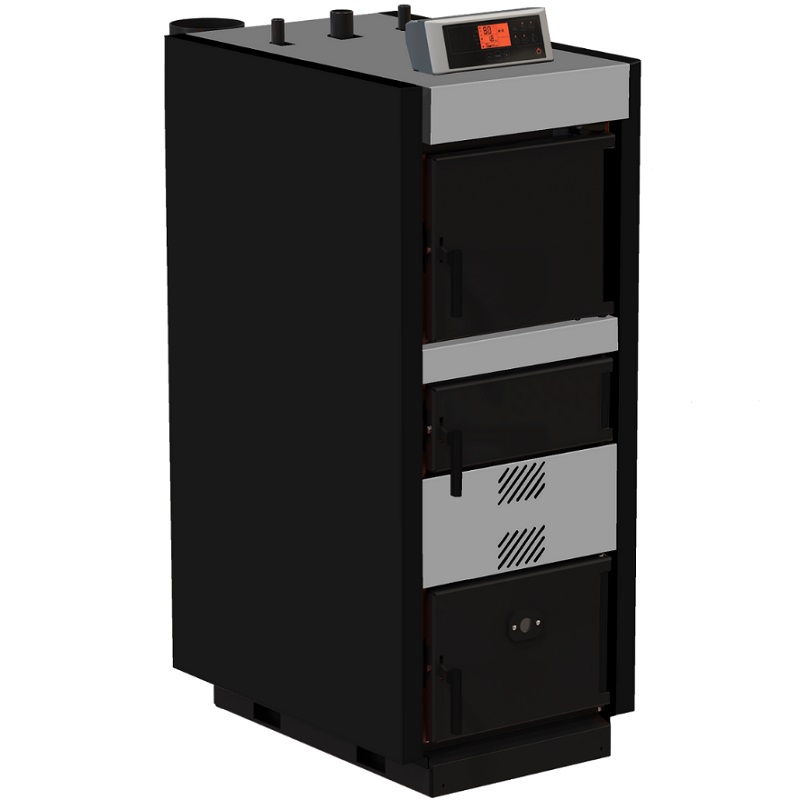

Metlor CL25 Pyro Evolution Wood Boiler

Metlor CL25 Pyro Evolution Wood Boiler

The CL25 Pyro Evolution boiler is a reverse flame wood boiler suitable for central heating and domestic water,
Large and high chamber for fuel loading, optimizing the gasification process double-walled dry fuel loading chamber, less condensation, higher gasification rate and easier cleaning of the surface,
Automatic smoke diversion system activated when the loading door is opened,
Automatic deactivation when there is no fuel, smoke sensor,

High efficiency thanks to the tubular water heating surface with smoke exchanger,
Integrated safety coil, for protection against overheating,
Elegant electronic control panel with well-arranged function buttons and large LCD display,
Status and operating fault indicators, energy saving and safety functions thanks to an electronic card with advanced performance.

Room thermostat connection
Primary and secondary air regulation
Nominal power: 25 kW
Efficiency: 90.9%
Power delivered to water: 25 kW
Boiler volume: 87 litres
Maximum water temperature: 90ºC
Gas temperature: 131ºC
CO(%) (13%O2) 0.012
NOx, VOC, particles: 189, 17, 28 mg/m3
Maximum length of firewood: 500 mm
Smoke outlet: Ø 160 mm
Weight: 465 kg
Dimensions (HxWxD) 1425 x 595 x 1175 mm
