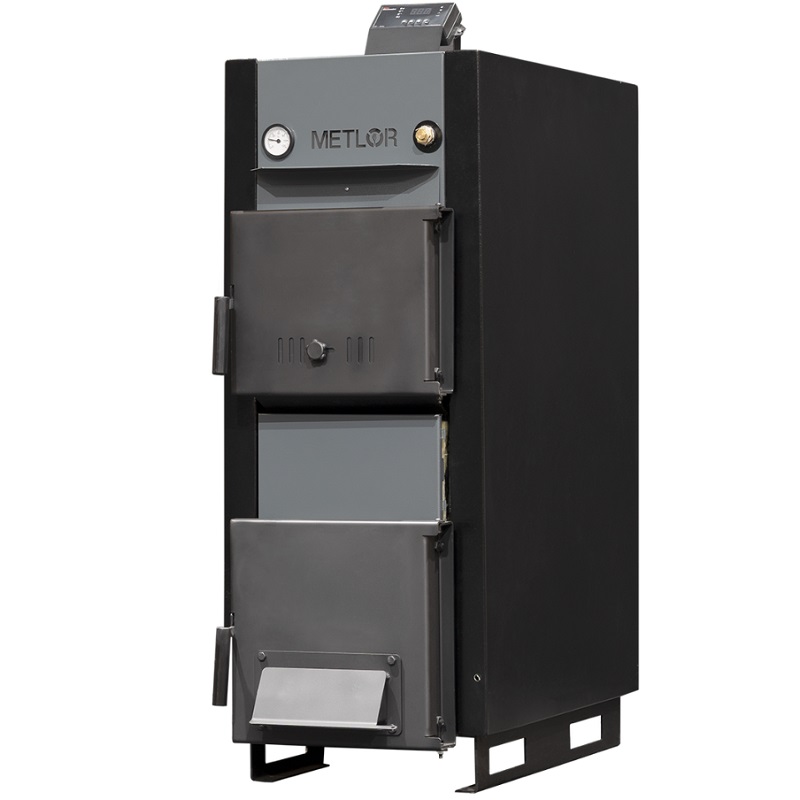

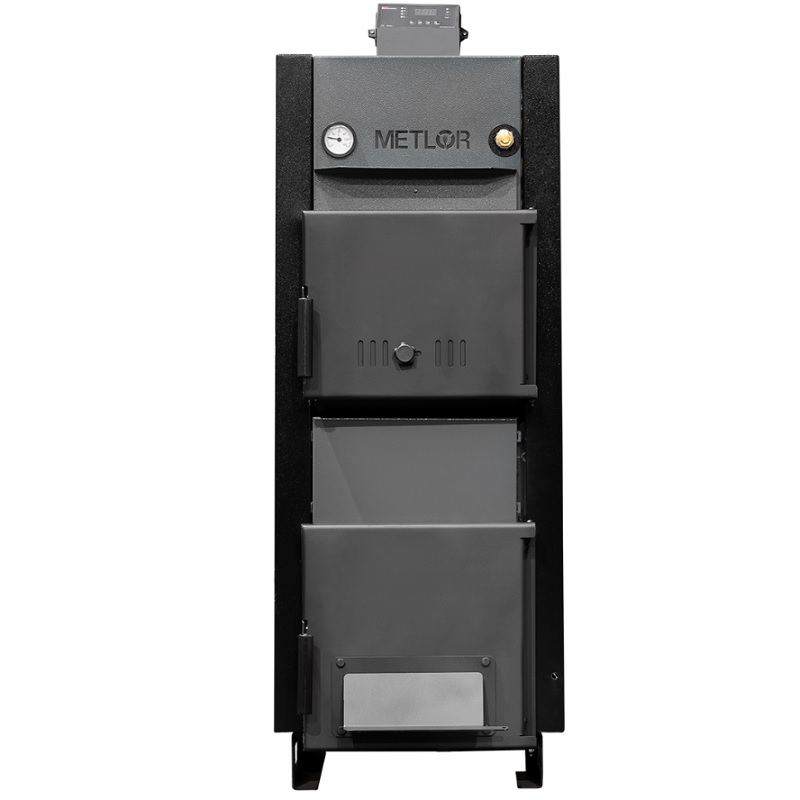

Metlor CL ECO 50 wood boiler

Metlor CL ECO 50 wood boiler

The CL ECO 50 wood boiler is suitable for central heating and domestic water, large and high chamber for fuel loading, optimizing the gasification process, double-walled dry fuel loading chamber, less condensation, higher gasification and easier surface cleaning rate

Automatic smoke diversion system activated when the loading door is opened, automatic deactivation in case of lack of fuel, smoke sensor, high efficiency thanks to the tubular water heating surface with smoke exchanger, integrated safety coil to protect against overheating.

Elegant electronic control panel with well-arranged function buttons and large LCD display, room thermostat connection. Primary and secondary air regulation, status and operating fault indicators, energy saving and safety functions thanks to an electronic card with advanced performance.

Nominal power 50.23 kW
Efficiency 87.2 %
Power delivered to water 50.23 kW
Boiler volume 120 liters
Maximum water temperature 90 ºC
Gas temperature 204ºC
NOx, Particles 173, 25, 53 mg/m3
CO(%) (13% O2) 0.051
Maximum length of firewood 500 mm
Smoke outlet Ø 180 mm
Weight 330 kg
Dimensions (HxWxD) 1200 x 610 x 1025 mm
