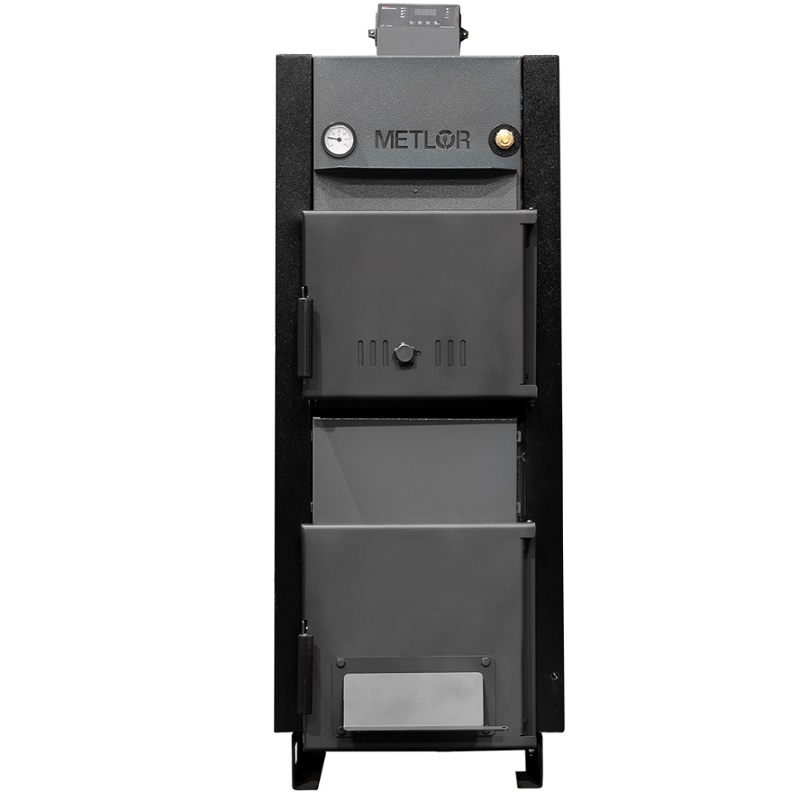

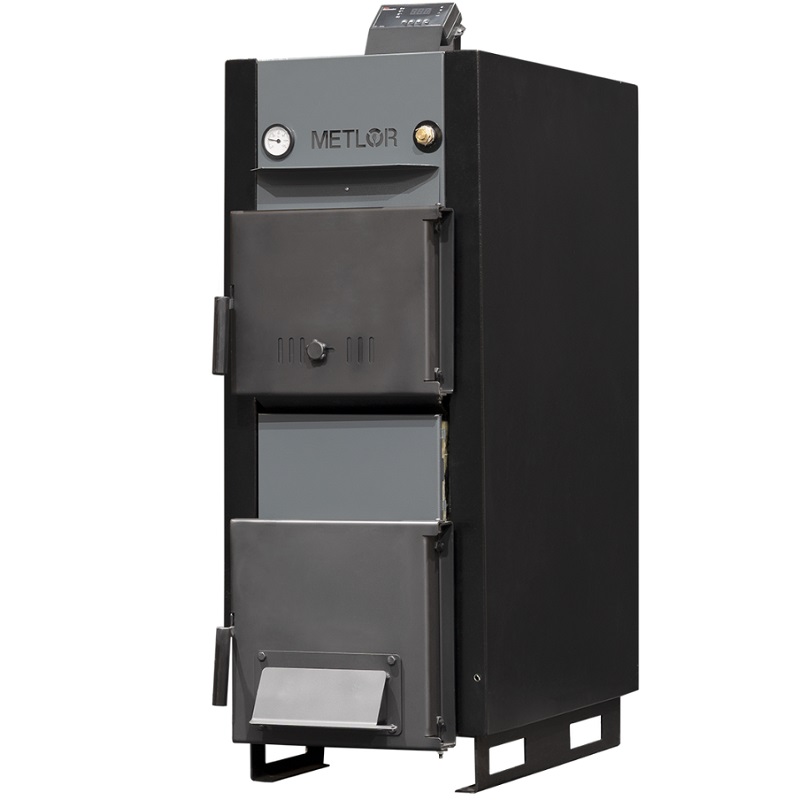

Metlor CL ECO 35 wood boiler

Metlor CL ECO 35 wood boiler

The CL ECO 35 wood boiler is suitable for central heating and domestic water, large and high chamber for fuel loading, optimizing the gasification process, double-walled dry fuel loading chamber, less condensation, higher gasification and easier surface cleaning rate

Automatic smoke diversion system activated when the loading door is opened, automatic deactivation in case of lack of fuel, smoke sensor, high efficiency thanks to the tubular water heating surface with smoke exchanger, integrated safety coil to protect against overheating.

Elegant electronic control panel with well-arranged function buttons and large LCD display, room thermostat connection. Primary and secondary air regulation, status and operating fault indicators, energy saving and safety functions thanks to an electronic card with advanced performance.

Nominal Power: 35.25 kW
Yield 85.4%
Power delivered to water 35.25 kW
Boiler Volume: 96 liters
Maximum water temperature: 90ºC
Gas Temperature: 193ºC
NOx, VOC, Particles: 152, 22, 47mg/m3
CO(%) (13% O2) 0.038
Max length. of Firewood: 500 mm
Smoke Outlet: Ø 160 mm
Weight: 287 kg
Dimensions: (HxWxD) 1200 x 560 x 960mm
