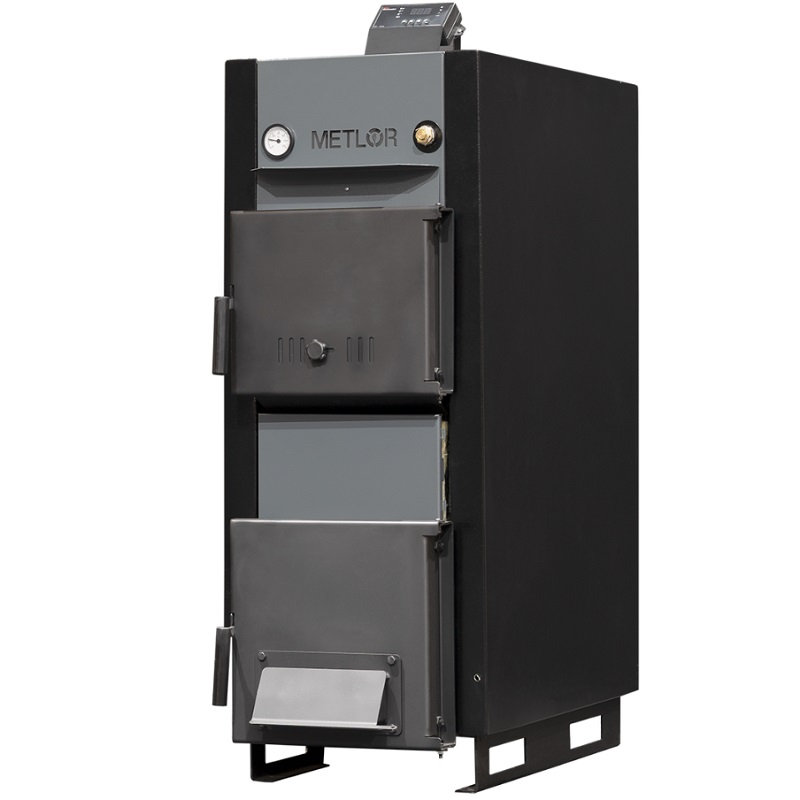

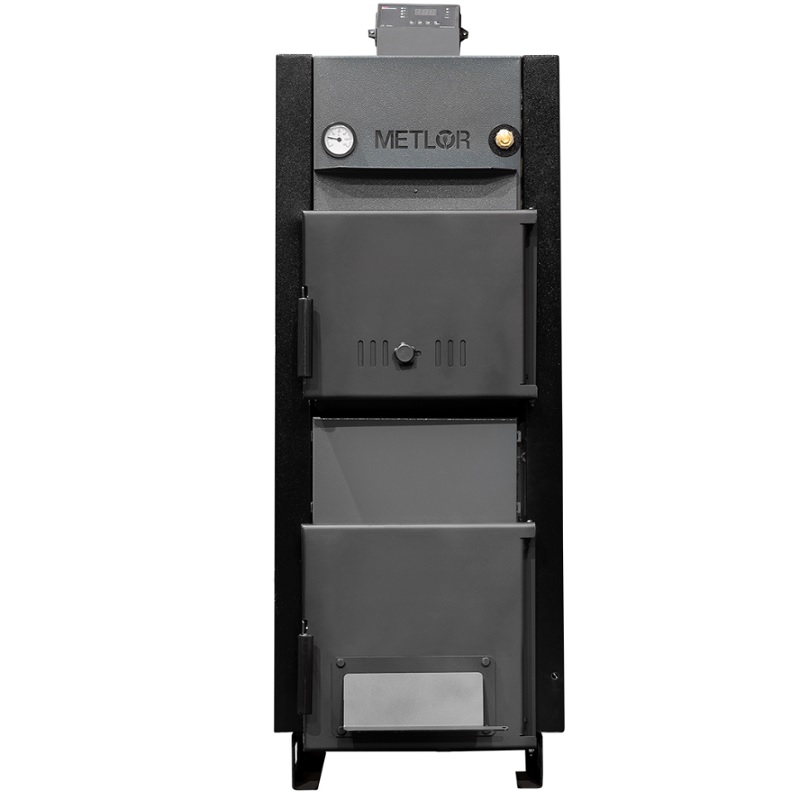

Metlor CL ECO 25 wood boiler

Metlor CL ECO 25 wood boiler

The CL ECO 25 wood boiler is suitable for central heating and domestic water, large and high chamber for fuel loading, optimizing the gasification process, double-walled dry fuel loading chamber, less condensation, higher gasification and easier surface cleaning rate

Automatic smoke diversion system activated when the loading door is opened, automatic deactivation in case of lack of fuel, smoke sensor, high efficiency thanks to the tubular water heating surface with smoke exchanger, integrated safety coil to protect against overheating.

Elegant electronic control panel with well-arranged function buttons and large LCD display, room thermostat connection. Primary and secondary air regulation. Status and operating fault indicators, energy-saving and safety functions thanks to an electronic card with advanced performance.

Nominal power 25.04 kW
Efficiency 85.4%
Power delivered to water 25.04 kW
Boiler volume 80L
Maximum water temperature 90ºC
Gas temperature 190ºC
NOx, VOC, Particles 153, 22, 47mg/m3
CO(%) (13%O2) 0.038
Maximum length of firewood 500 mm
Smoke outlet Ø 160mm
Weight 244 kg
Dimensions (HxWxD) 1200 x 460 x 960 mm
