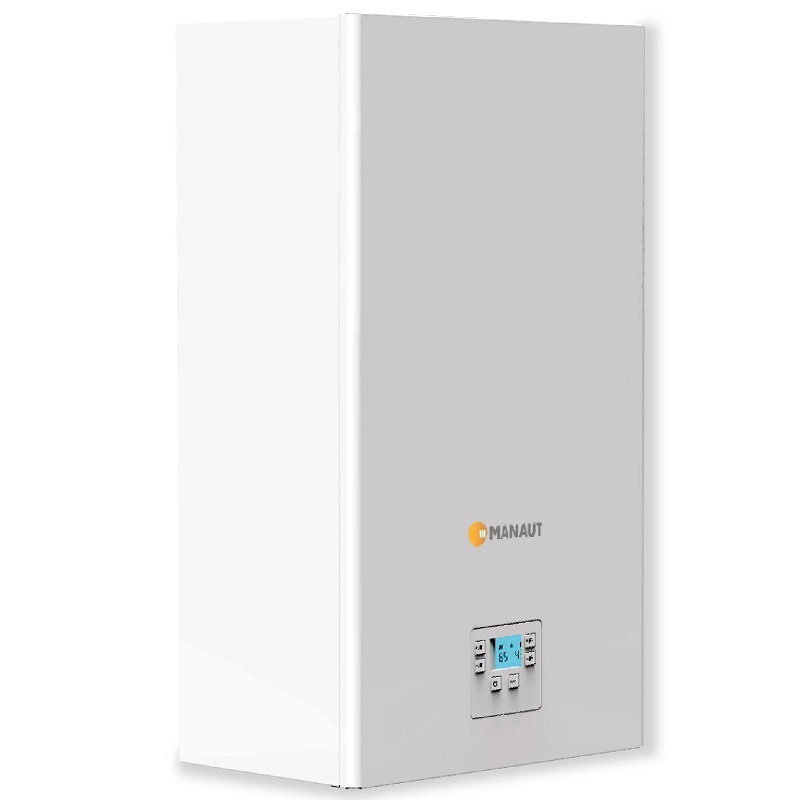

Manaut Myto Connect-H 25 S B/N Boiler
New Manaut range of wall-mounted condensing boilers, H2 Ready (20% Hydrogen), Modulation 1:10, with thermoregulation. Optimal performance thanks to Adaptive technology and the primary stainless steel condensing exchanger with "Round Flow" function and the intuitive digital control panel with display, Myto Connect H is available in 25, 30 and 35 kW capacities

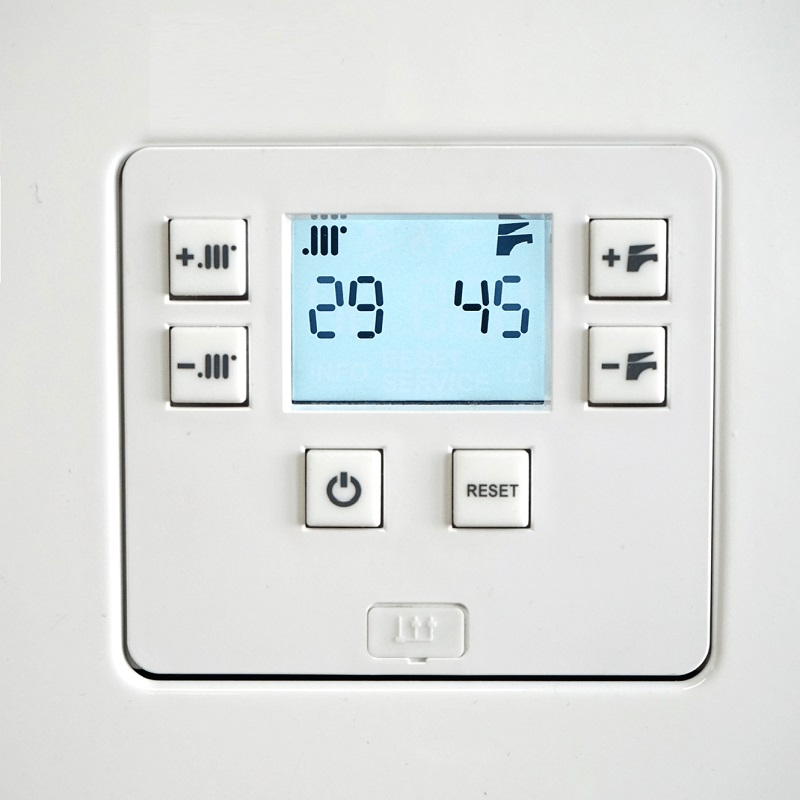

Control panel
Summer/winter/off selector
Heating temperature control
Domestic water temperature control
Domestic water and heating temperature display on the display
Fault diagnosis and indication of the lock status
Indication of the months remaining until the annual maintenance date
Energy efficiency class/DHW load profile: A/XL
Maximum thermal capacity: 25.00 kW
Maximum thermal capacity in heating: 21.00 kW
NOx class: 6
Expansion vessel: 8 litres
Maximum operating pressure: 3 bar
Domestic flow rate ∆T 25°C: 15.2 l/min
Minimum water flow rate: 2.0 l/min
Dimensions: (W x H x D): 706x400x245 mm
Net weight: 27.80 kg
