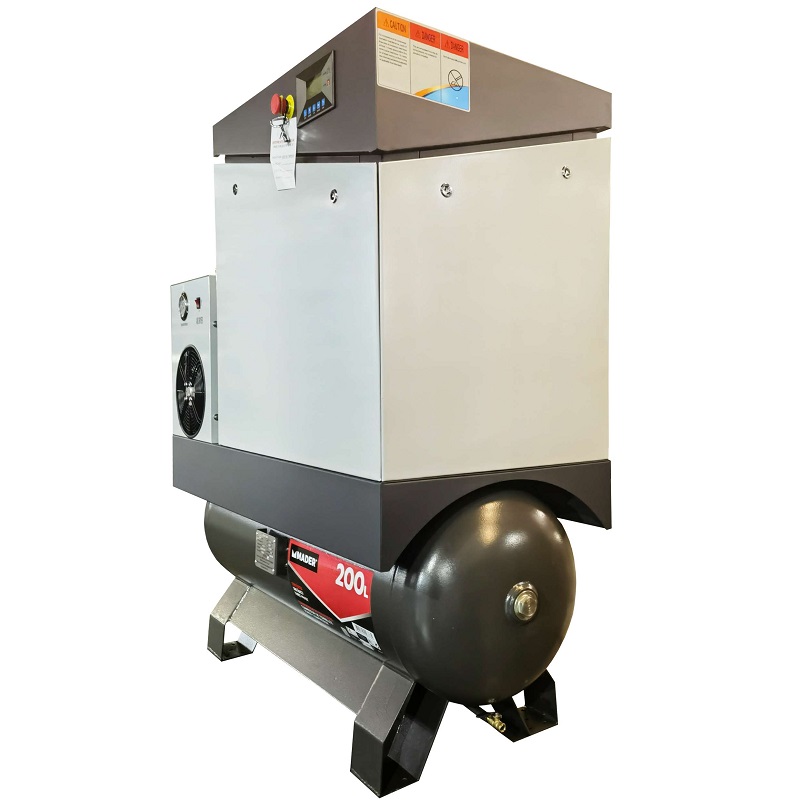

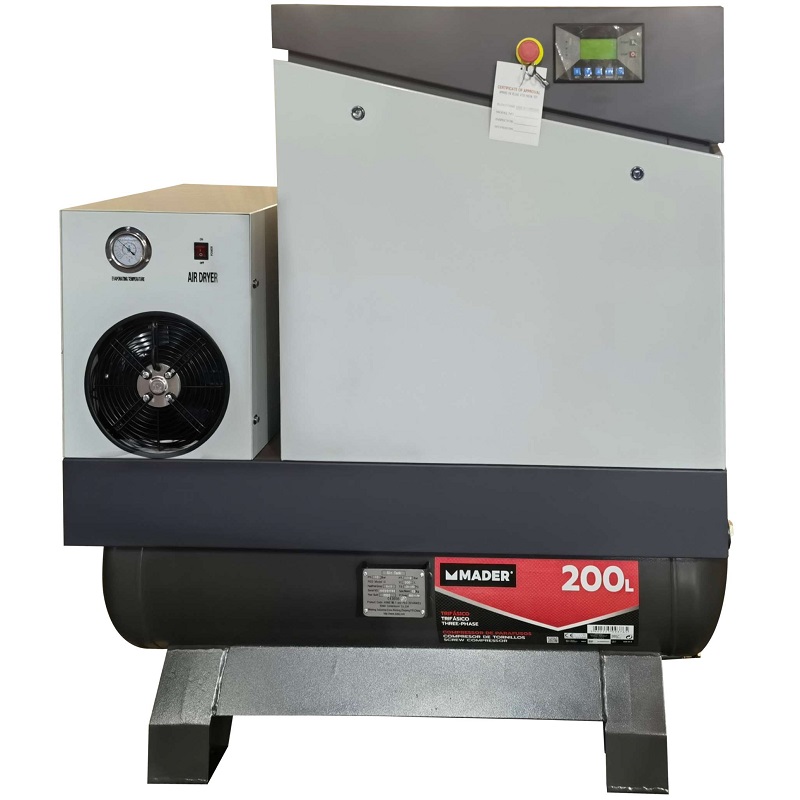

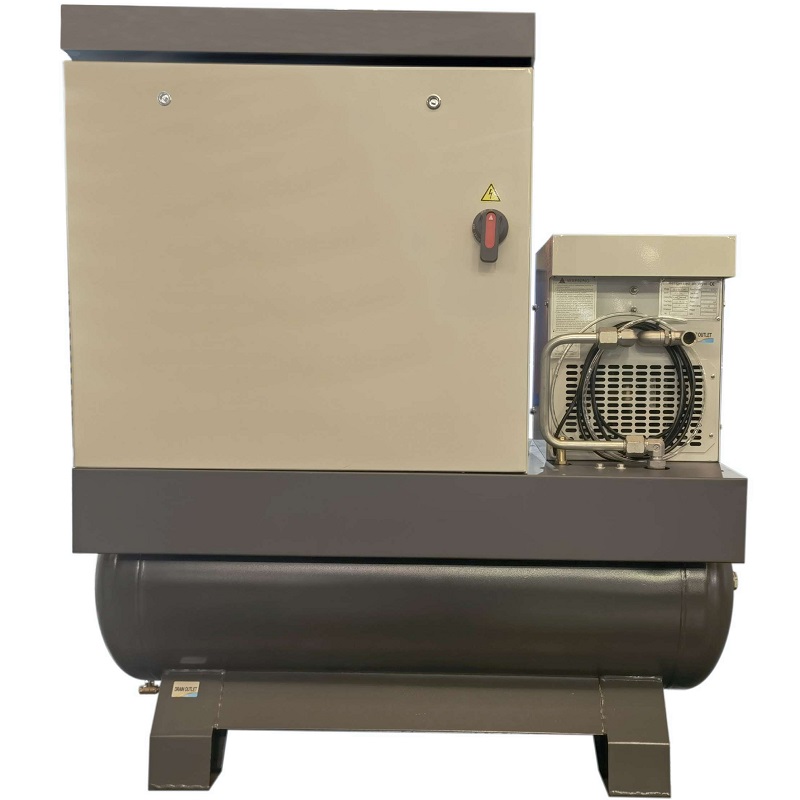

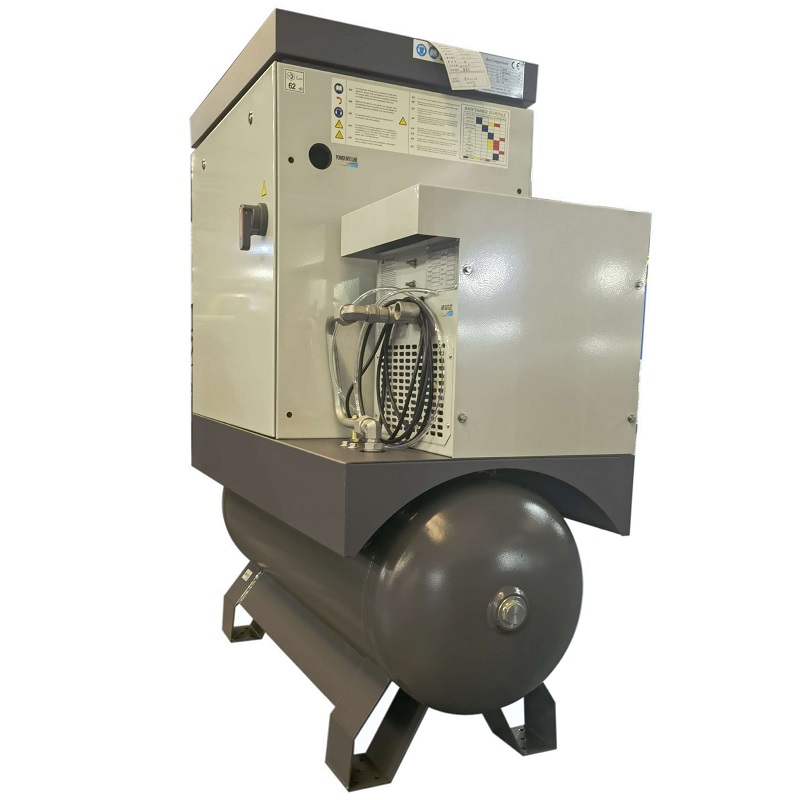

Mader screw air compressor, 200 L, 10 HP
These compressors are particularly recommended for automotive painting stations, as they require absolutely clean and dry compressed air, at high flow rates and in permanent operation, as they can operate 24/7, practically without interruption.
The screw air compressor with integrated dryer Mader Series 10 hp 200 liters 400V is composed of robust and efficient equipment, the fixed speed allows Mader compressors to operate continuously, in addition, they have efficient and ecological refrigeration and easy maintenance.
Engine: 3-phase
2936 rpm
Power: 7.5 kW - 10 hp
Voltage: 400 V ~ 50 Hz
Air cooling: Yes
Info: with oil cooler
Tank: 200 liters
Air displacement, exhaust pressure
Air capacity: (A) 1.20 m³/min -- 0.70 MPa
1.10 m³/min -- 0.80 MPa
0.95 m³/min -- 1.00 MPa
0.80 m³/min -- 1.25 MPa
Pressure: 7Bar (min.)
10 bar (max.)
Support: 4
Noise: 62 dB
Packaging: Wooden box
Packaging
Height: 144 cm
Width: 73 cm
Length: 159 cm
Gross weight: 370 kg
Net weight: 350 kg
