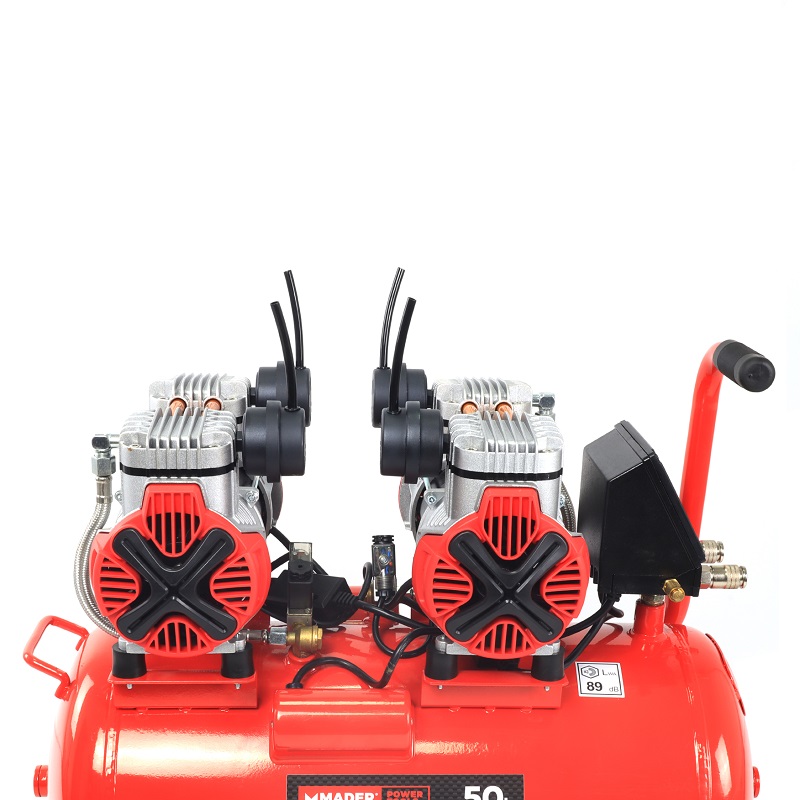

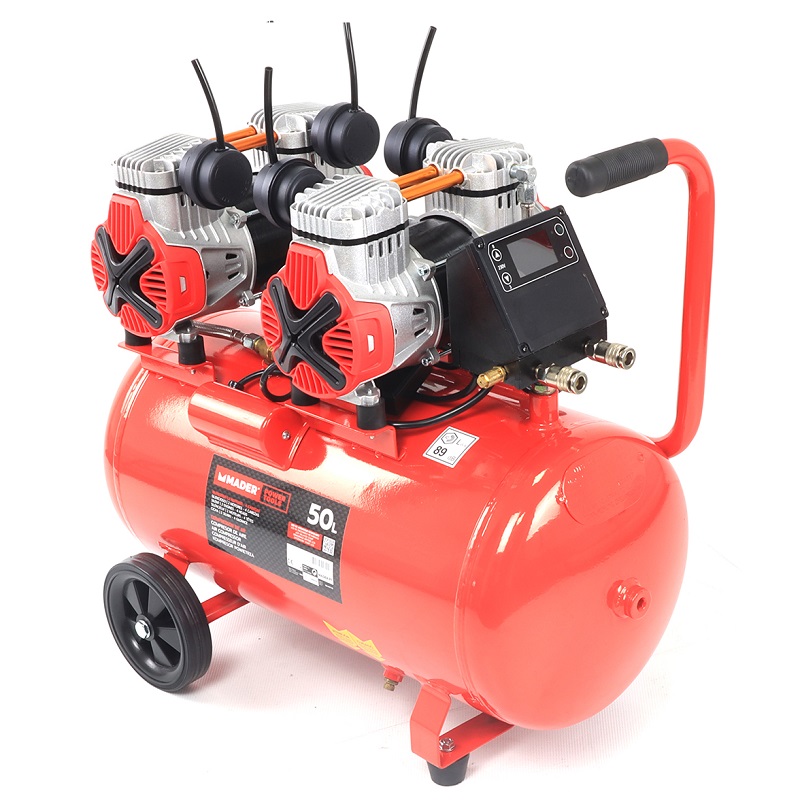

Mader air compressor, monobloc, 50L, 4HP, 4 heads, 2 motors, LCD
Regular cleaning of the air filters is necessary
You must work connected to electrical installations with a minimum power of 30 kVA.
If the power is not sufficient when starting the compressor, there is a risk (high probability) of burning out the 2nd motor (because the installation does not have enough power to start both motors simultaneously!!)
You must also not use extension cords with these dual-motor compressors!
If it is necessary to use an extension cord, it must have wires with a minimum thickness of 4 mm and the wire must be completely taut/unwound.

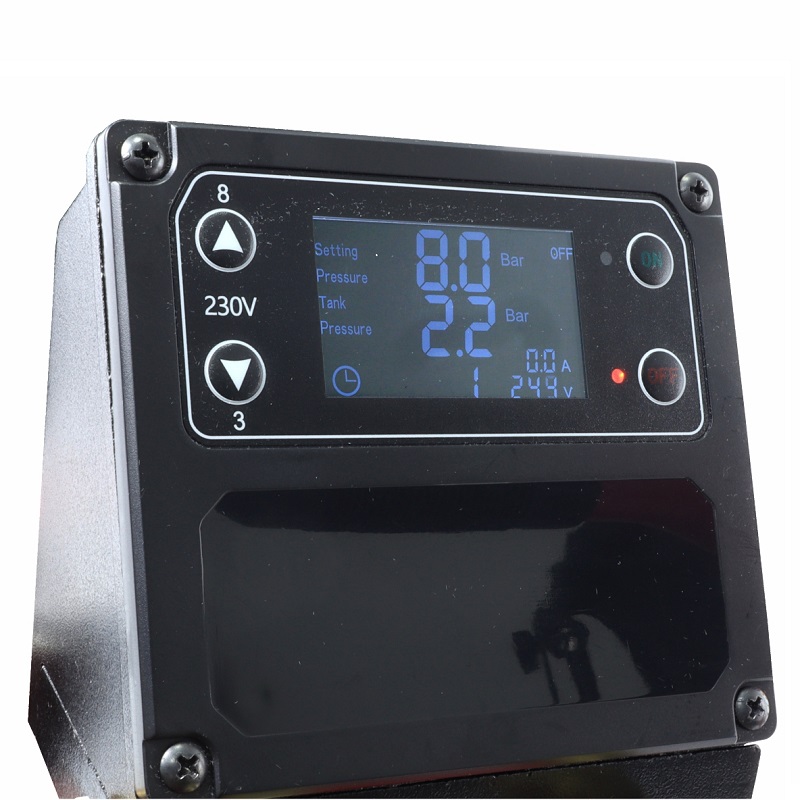

Electronic controller with LCD display
Maintenance free (oils)
Display:
Maximum pressure
Current pressure
Input voltage
Working time
Motor: Single phase
Power: 3kW - 4CV
RPM: 2800
Voltage: 230 V ~ 50 Hz
Tank: 50 L
Air capacity: 528 L/min
Pressure: 8 bar - 116 PSI

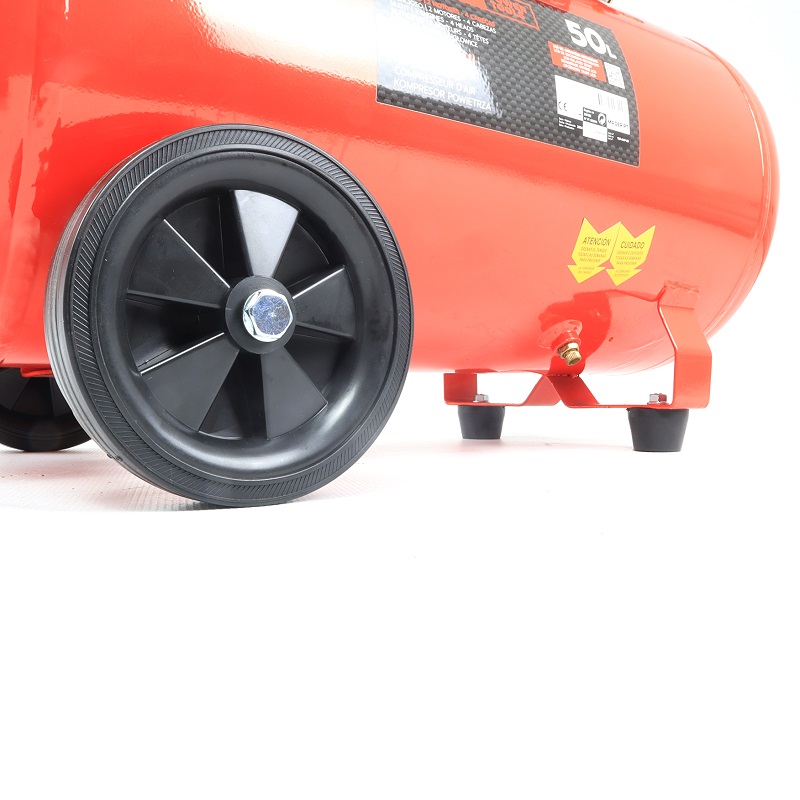

Wheel: 2 + 2 supports
Noise: 87 dB
Packaging
Gross weight: 1 kg
Net weight: 0.91 kg
