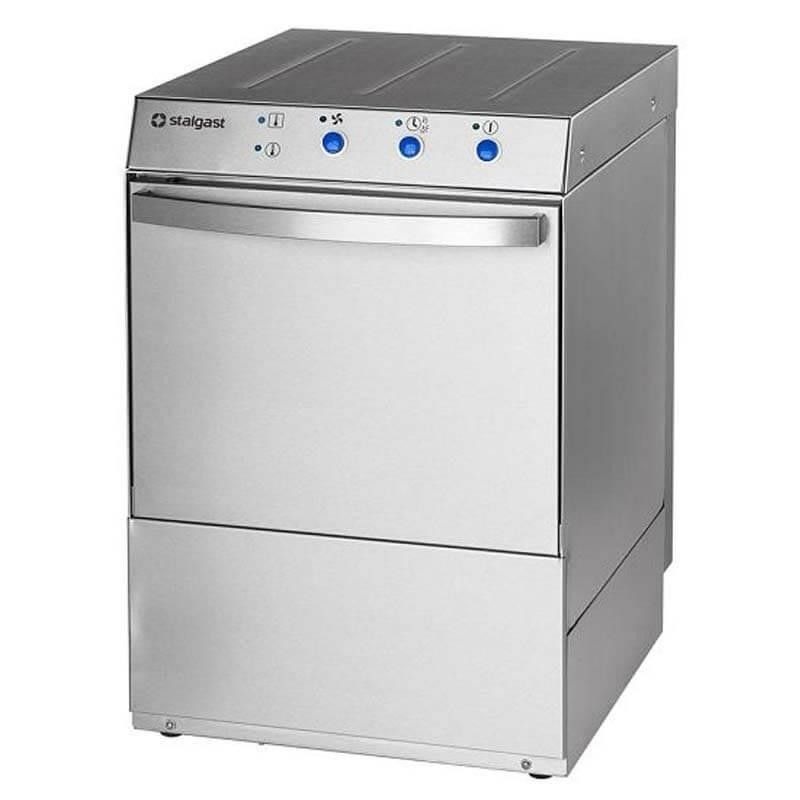

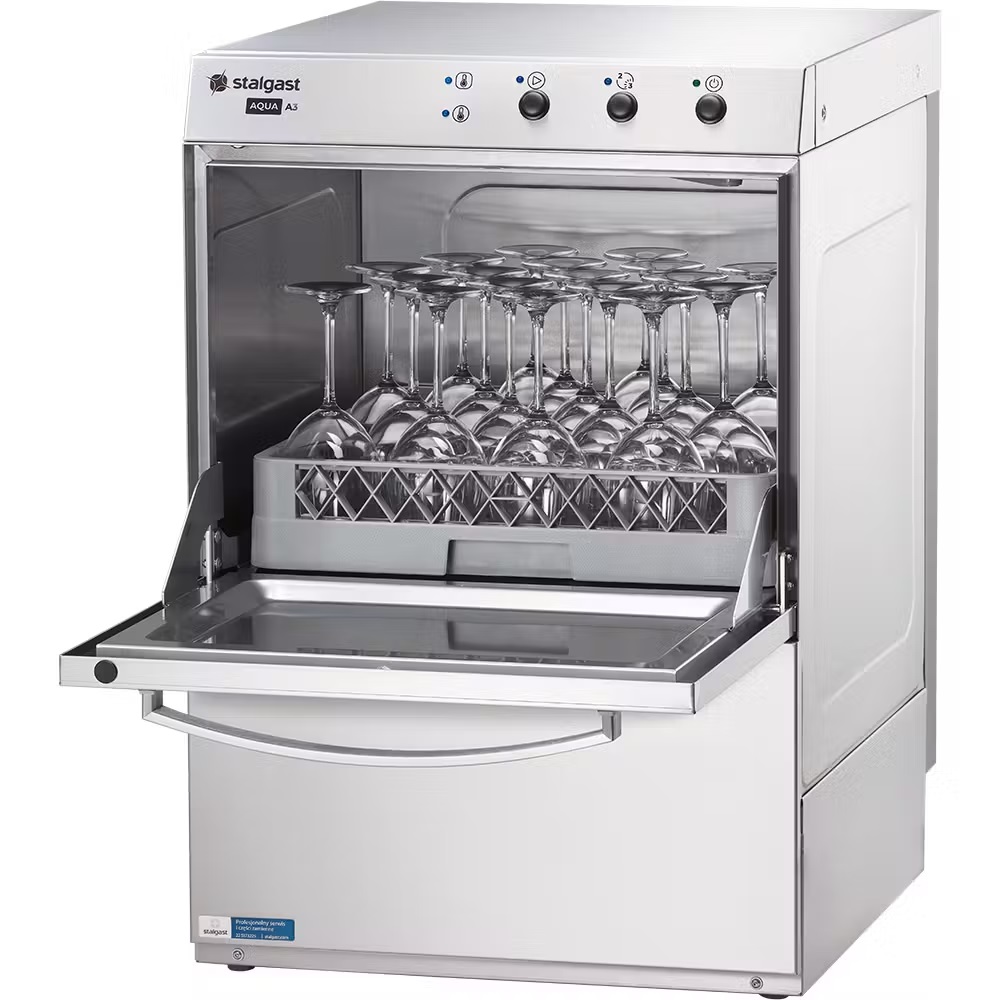

Stalgast AQUA A3 Industrial Glasswasher
Glasswasher with high washing performance.

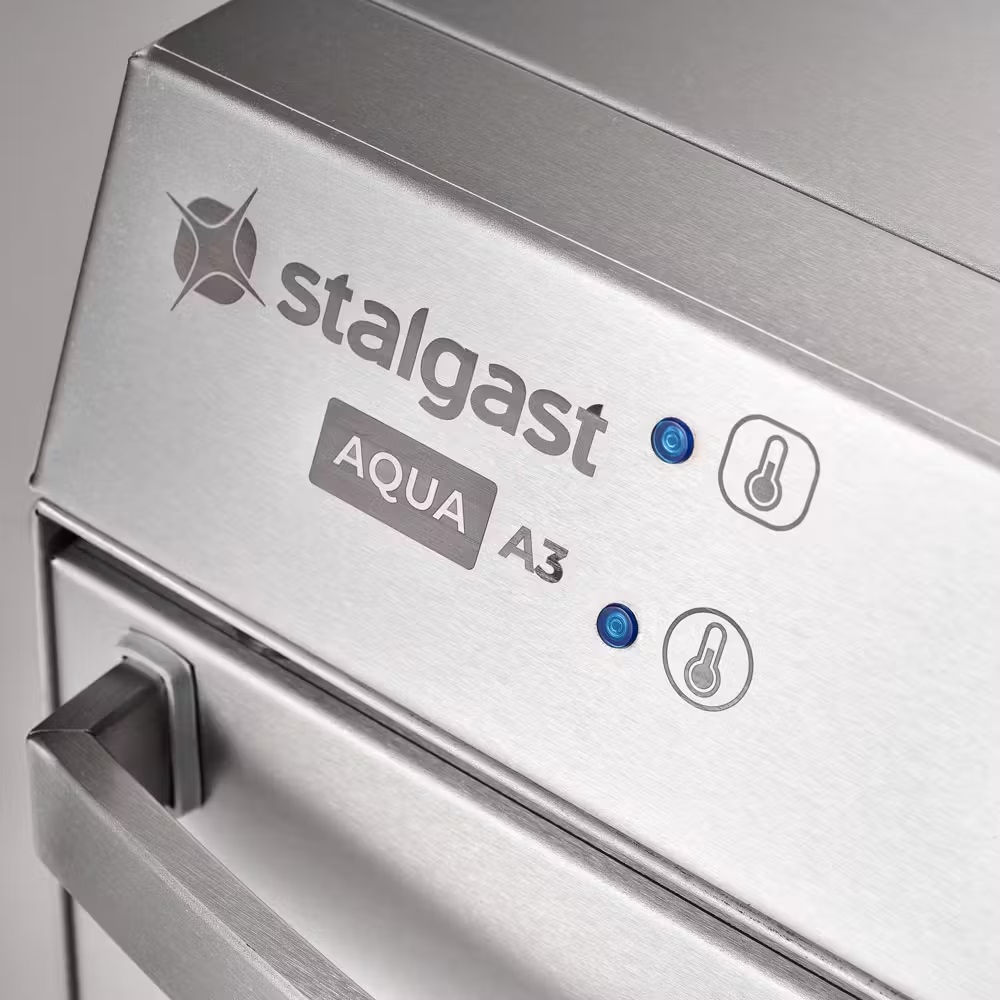

Electromechanical control panel with bright LEDs, very easy to use and operate.
It features two wash cycles of 120 and 180 seconds to optimize productivity and profitability.

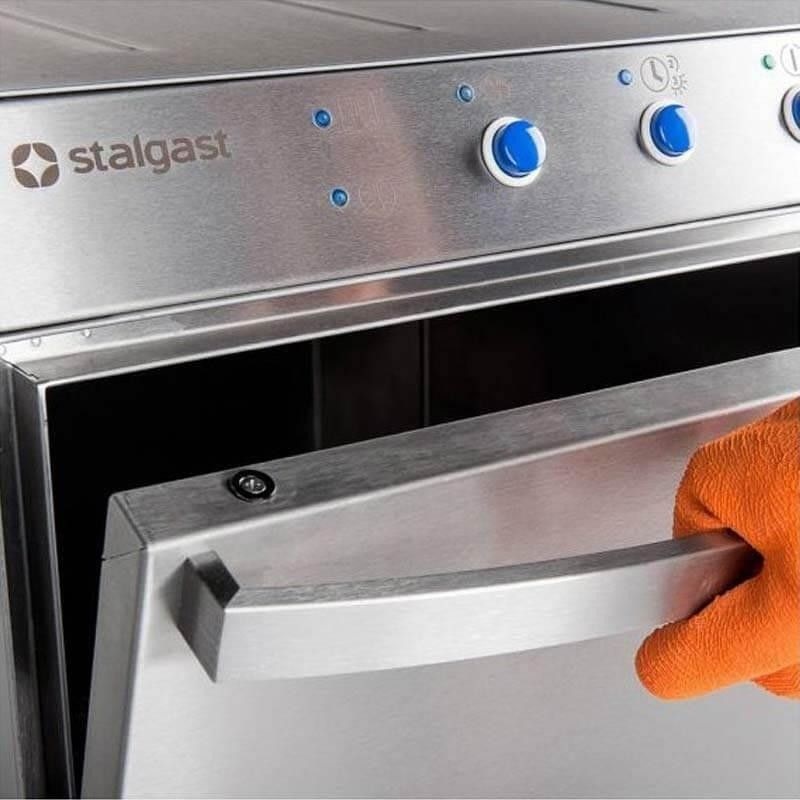

Robust integrated door handle, designed to last.
Stainless steel structure.

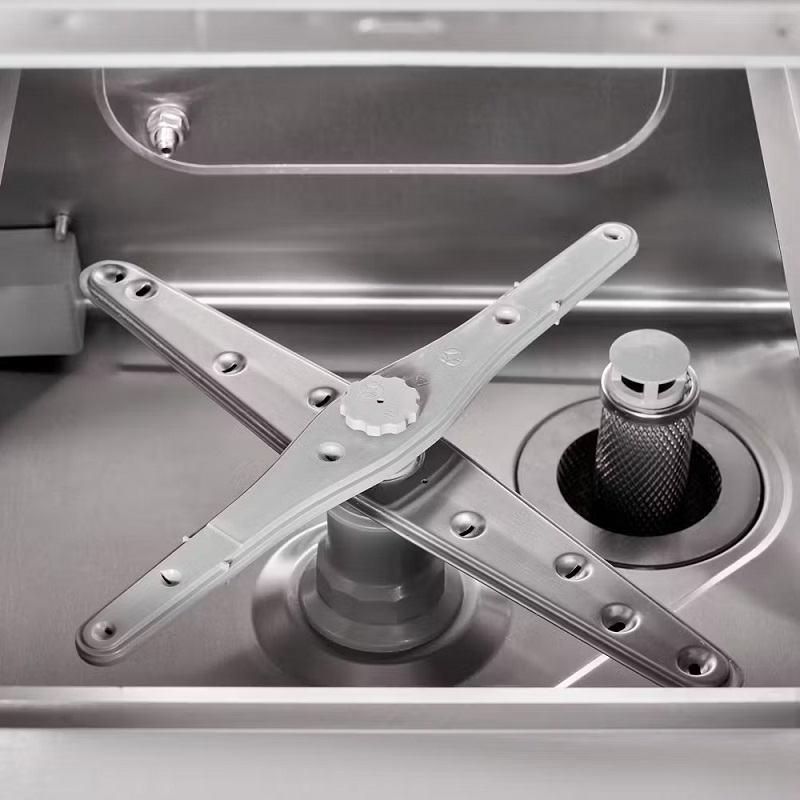

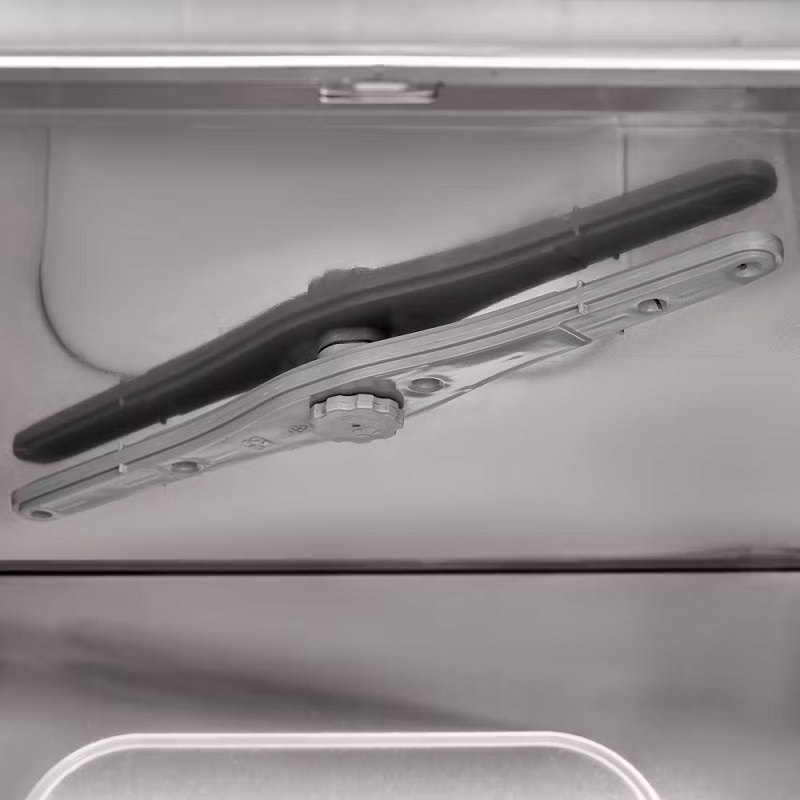

Upper and lower wash arms made of stainless steel and upper and lower rinse arms made of anti-chemical material.
Wash chamber height suitable for washing dishes up to 30 cm high.
Incorporates an automatic rinse aid and detergent dispenser.
Structure entirely made of stainless steel.
Easy access to the electrical panel for maintenance.
Includes a safety thermostat and a non-return valve.
Electromechanical programmer with two wash cycles of 120 and 180 seconds.
It includes a safety microphone when the door is opened.
Wash temperature regulated at 60º/65ºC and rinse at 82º/90ºC.
Electrical connection: 230 V/50 Hz.
Output: 1 x 40x40 glass basket + cutlery cup + loading tube + drain tube.
The installation of a water softener is mandatory if the mains water hardness exceeds 5-6 dh.
Usable height of 30 cm.
2 wash cycles of 120 and 180 seconds.
Wash cycles: 2 (120 and 180 seconds).
Basket output: 30-20 baskets/hour.
Usable wash height: 30 cm.
Total power: 220 V: 2.80 kWh. Single-phase.
Boiler heating element: 2.6 kW (230 V).
Cuba heating element: 1.6 kW.
Water connection: 3/4".
Required water supply pressure: 2-4 bar.
Tank capacity: 14 liters.
Tank capacity: 2.5 liters.
Water consumption per cycle: 2.4 liters.
Drain: Diameter 30 mm.
Rotating wash arms: 2.
Electrical connection: 230 V/ 50 Hz.
Dimensions: (L x W x H) 465 x 536 x 718 mm
Basket dimensions: 40 x 40 cm.
