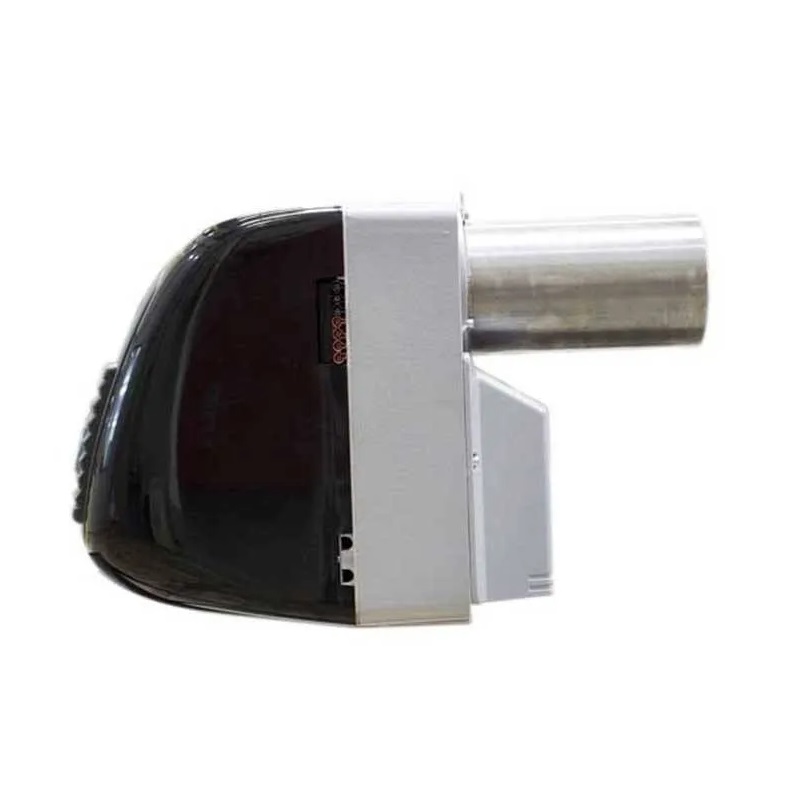

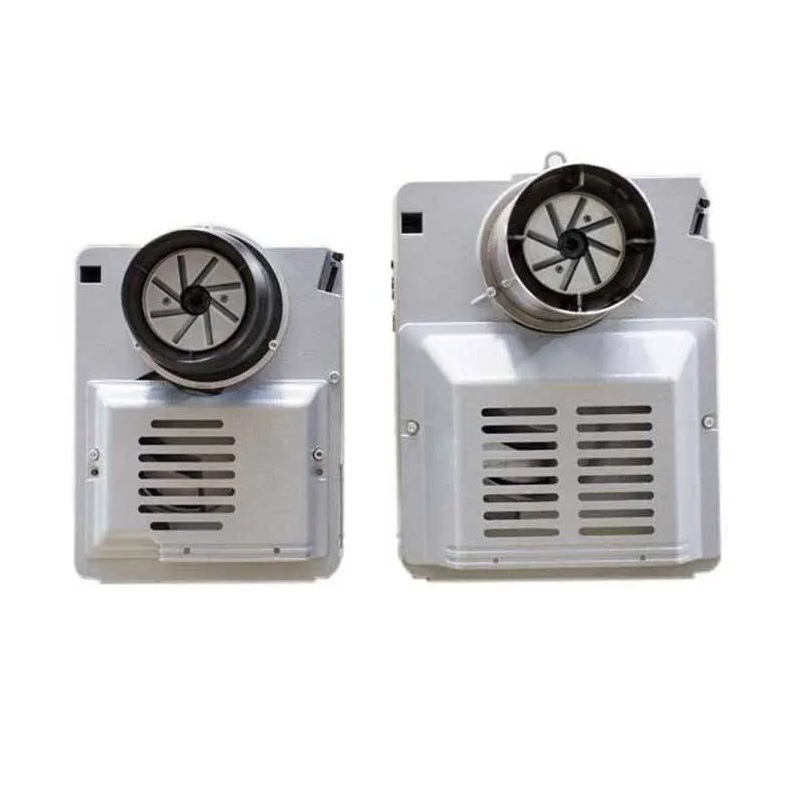

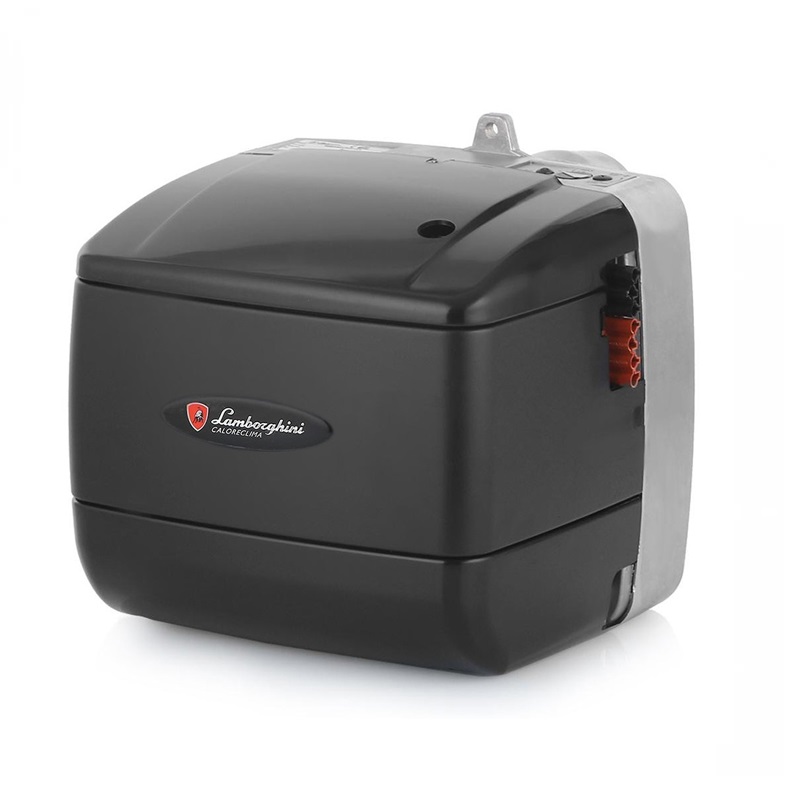

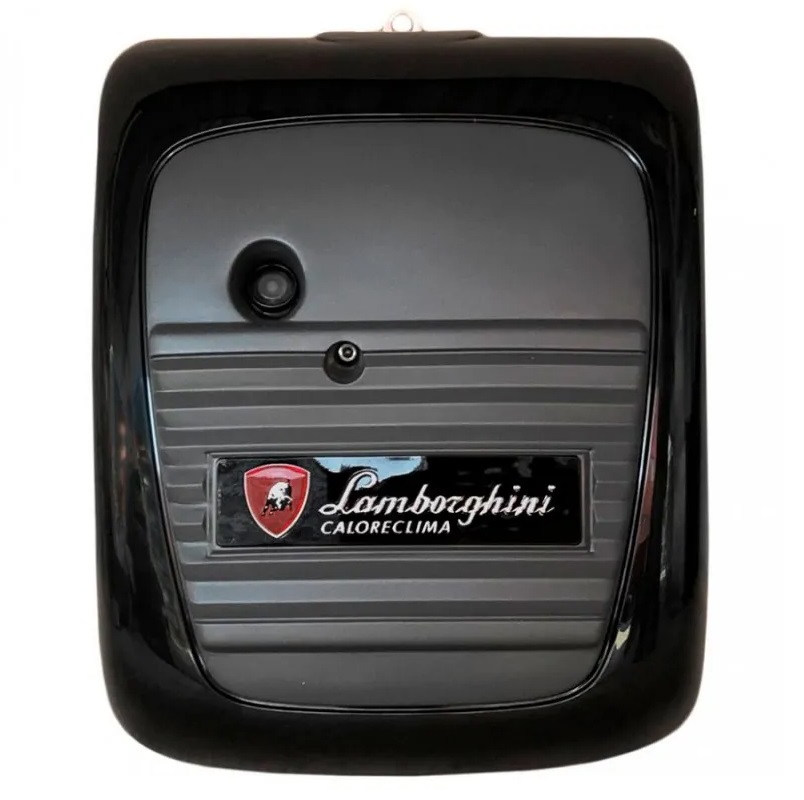

Lamborghini ECO-7R 52.2-86.6kW Burner
The ECO R series of Lamborghini Diesel burners, model 3R, is prepared to operate in medium pressure boilers, in addition to having a preheater that promotes combustion, the ECO R stands out for its low emissions level.
On the safety side, its combustion head is adjustable as well as the air or fluid supply, the air shutter has a gravity closure when the burner is stopped, it has a stable ventilation system and optimal combustion thanks to a uniform distribution of air.
In addition, the Lamborghini burner is made up of a soundproof protective cover, it is very versatile and has compact dimensions, easy installation and maintenance with a design that offers features that facilitate all adjustment and installation operations on the burner by simply removing the head behind for maintenance operations, without the need to disassemble.
Oil burner, 2 oil hoses 1000 mm, nozzle
7-pole connector
Technical data:
Oil flow rate: 4.4 - 7.3 kg/h
Thermal power: 52.2 - 86.6 kW
Motor: 100W
Oil preheating: 110 W
Weight: 12.0 kg
Dimensions: 290 x 310 x 440 mm
