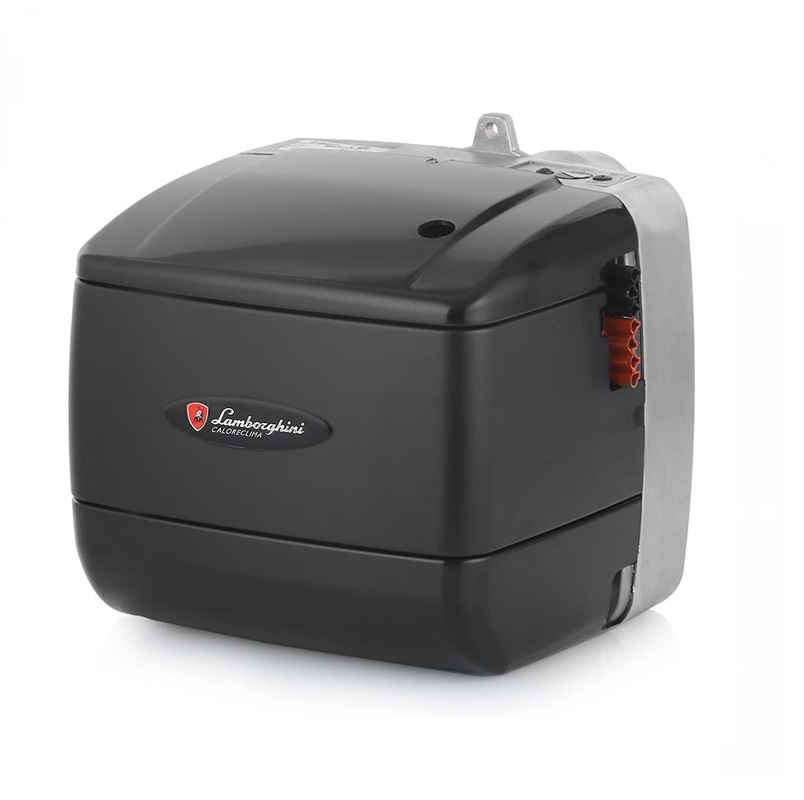

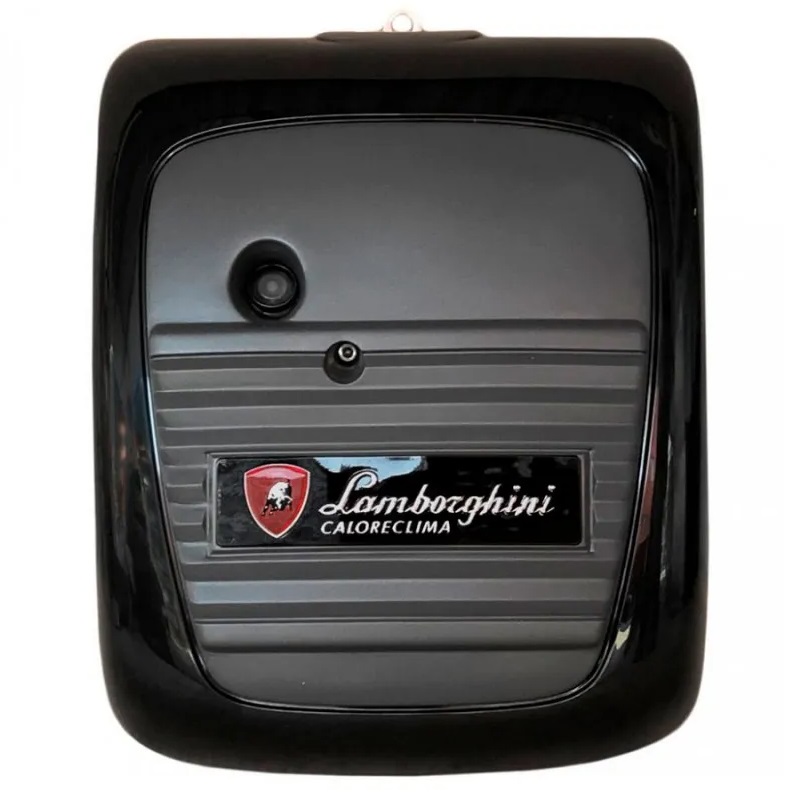

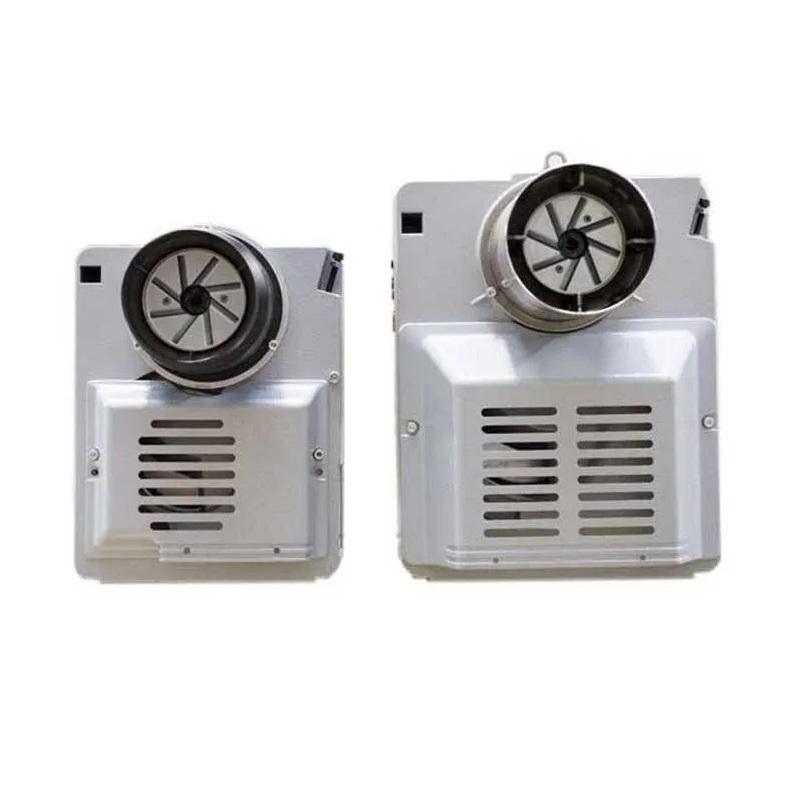

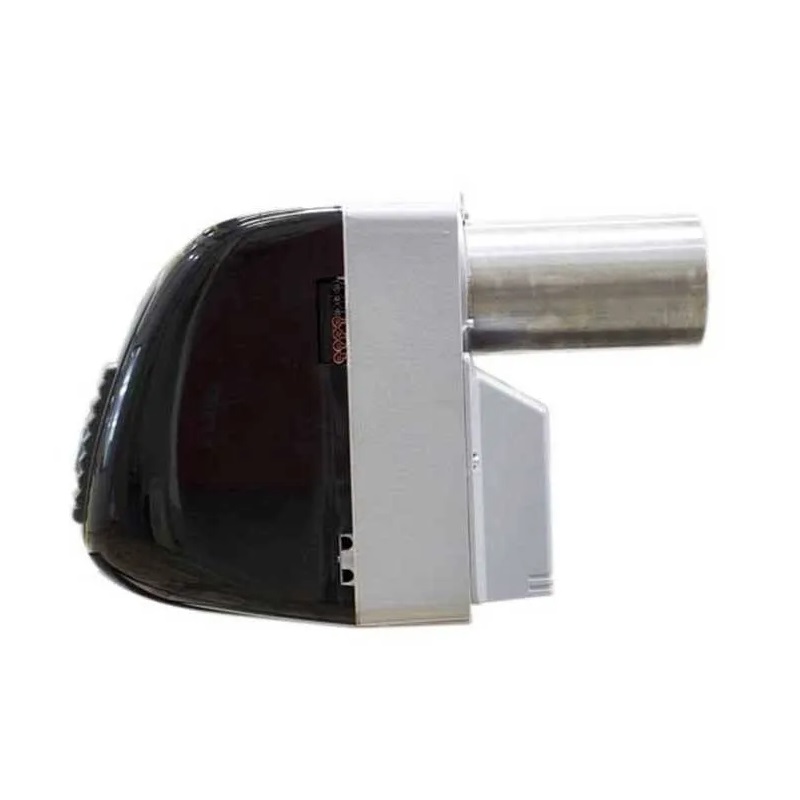

Lamborghini ECO-3R 14.2-35, 6 kW burner
The ECO R series of Lamborghini Diesel burners, model 3R, with a thermal power of 14.2 kW, is prepared to operate in medium pressure boilers, in addition to having a preheater that promotes combustion, the ECO R stands out for its low emissions level.
On the safety side, its combustion head is adjustable as well as the air or fluid supply, the air shutter has a gravity closure when the burner is stopped. It has a stable ventilation system and optimal combustion thanks to a uniform distribution of air.
In addition, the Lamborghini burner is made up of a soundproof protective cover, it is very versatile and has compact dimensions, easy installation and maintenance with a design that offers features that facilitate all adjustment and installation operations on the burner by simply removing the head. behind for maintenance operations, without the need to disassemble.
Model: ECO 3R
Range from 12 to 45 kW.
Flow rate Kg/h: 1.2÷3
Motor 230 V ~ 50 Hz: 100 W mon.
Thermal Power: kW 14.2÷35.6 / kcal/h 12,200÷30,600
ECO Series - ONE STAGE. With external regulation of the combustion head.
Preheater: Yes
Power in Kw Burners: 35 kw
Height of the piece: 21.5 cm
Width of the piece: 25 cm
Length of the piece: 32 cm
Weight of the piece: 11.5 kg
