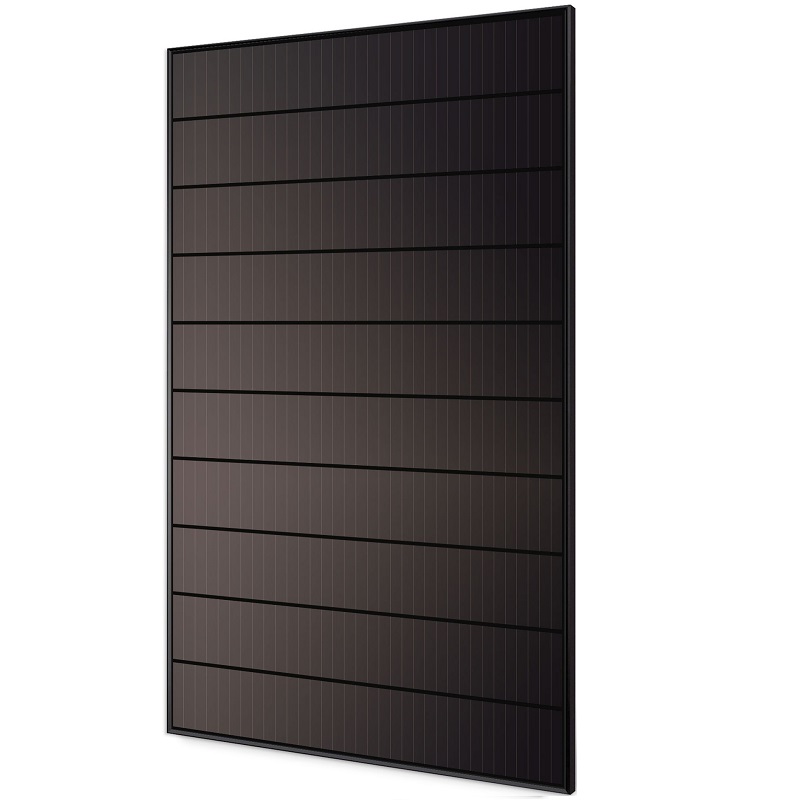

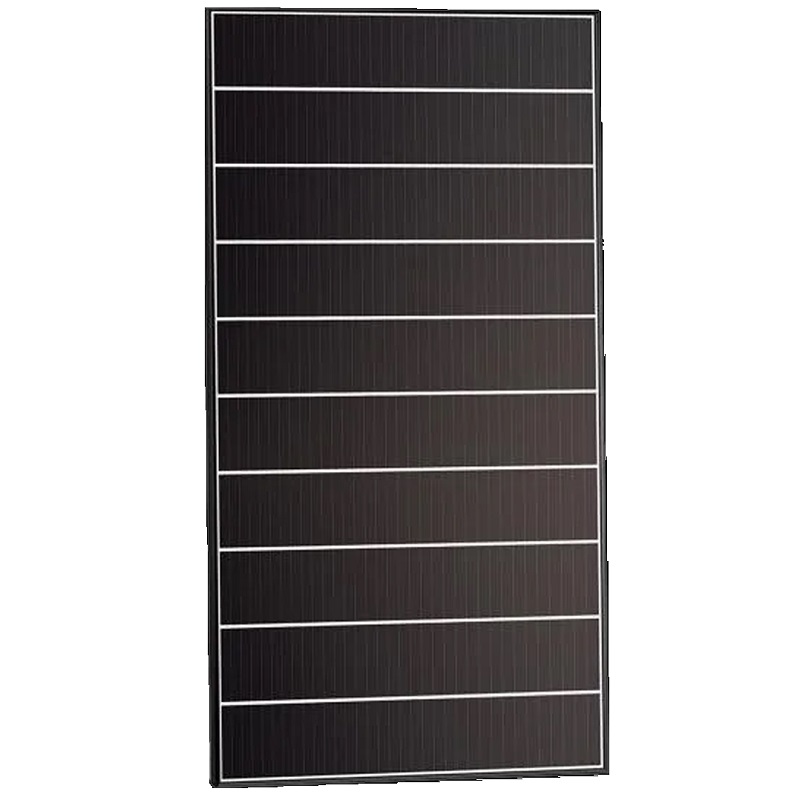

Hyundai HG 440W Black PERC Solar Panel
This solar panel maximizes sunlight as both LID (Light Degradation Index) and PID (Potential Degradation Index) are eliminated to ensure better real performance during its lifetime, it has great resistance thanks to the tempered glass and reinforced frame, which resist extreme weather conditions such as snow and wind, several tests such as ammonia and salt fog have also been passed.
Model VG 400W
Electrical Characteristics
Nominal Power (W) 400
Open Circuit Voltage (V) 46.4
Short Circuit Current (A) 10.97
Voltage at Pmax (V) 38.6
Current at Pmax (A) 10.36
Module Efficiency (%) 20.4
Cell Type
PERC Monocrystalline Silicon Tiles
Maximum System Voltage (V) 1,500
Temperature Coefficient Pma (%/°C) -0.34
Temperature Coefficient of VOC (%/°C) -0.27
Temperature Coefficient Isc (%/°C) 0.04
Solar Cells
340 Cells, PERC Monocrystalline (166 × 166mm)
Output Cables
Length 1,500mm, 1×4 mm²
Connection box
Rated current: 20A, IP67, TUV and UL
Front glass: White tempered safety glass, 3.2 mm
Encapsulation: EVA (ethylene vinyl acetate)
Frame Anodized aluminum
Connector
Manufacturer: MC4-Evo2
Dimensions 1,719 × 1,140 × 35 mm (L × W × H)
Weight 22 kg
