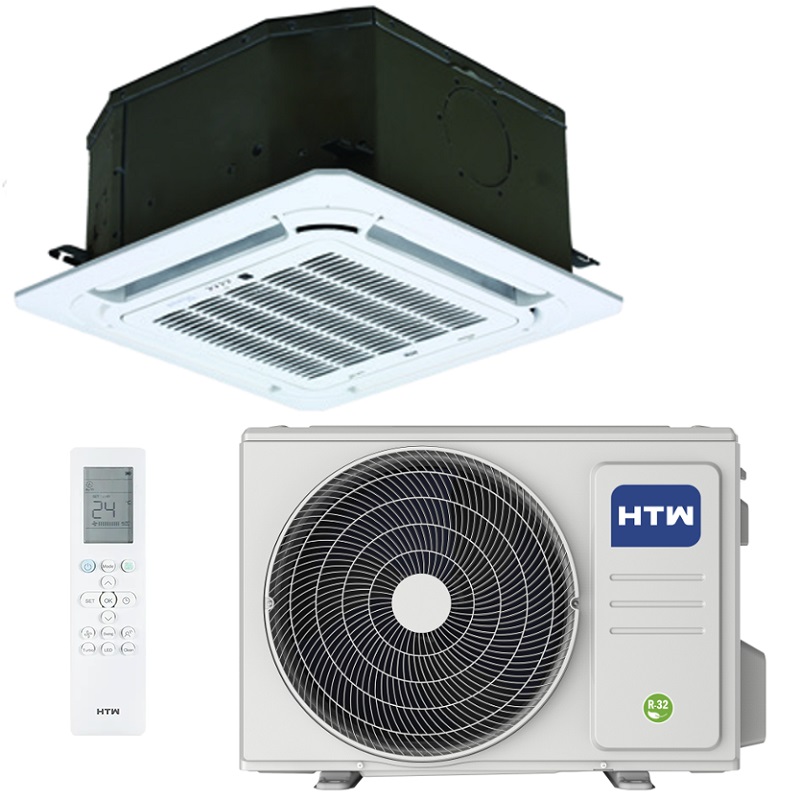

HTW C9T3-105ADM2R32W 10.5 kW Cassette Air Conditioner
HTW's Admira cassette series has been specially designed for commercial use. Its 360° air distribution and sleek, attractive design provide pleasant thermal comfort and seamless integration into any modular rooftop, making it ideal for retail, office, hotel, and other commercial premises.
Brand: HTW 90X90
Recommended Living Room Size: Approx. 96 m²
Power Supply: 380-415 V (3-phase ~ 50 Hz)
Cooling Capacity: 12,000 Frig/h
Cooling Capacity: 48,000 (12,000~53,000) (Btu/h)
Energy Class (Cooling): A++
SEER: 6.1
Heating Capacity (Btu/h): 55,000 (14,000 - 62,000)
Energy Class (Heating): A+
Gas Type: R32
Refrigeration Hose (Liquid - Gas) Inches: 3/8"-5/8"
Warranty: 3-year full warranty and 5-year compressor warranty
Net Cassette Dimensions (WxHxD): 830x205x830 mm
Gross cassette dimensions (W x H x D): 910x290x910 mm

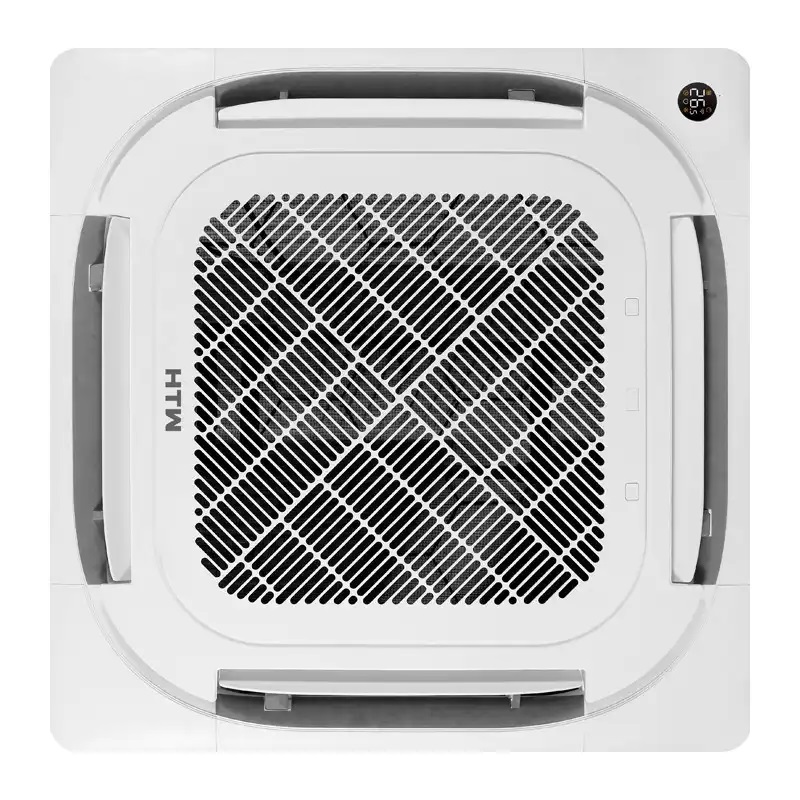

Net panel dimensions (W x H x D): 950x55x950 mm
Gross panel dimensions (W x H x D): 1035x90x1035 mm
Net/gross weight (cassette): 28.6 kg

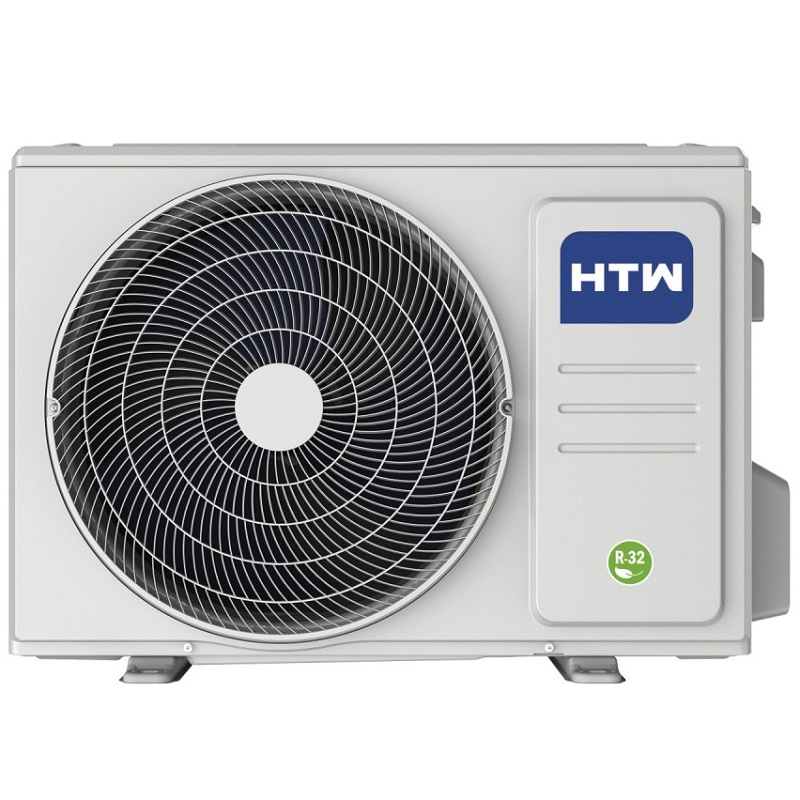

Outdoor unit weight
Net dimensions (W x H x D): 946x810x410 mm
Gross dimensions (W x H x D): 1090x885x500 mm
Net weight: 55.7 kg
