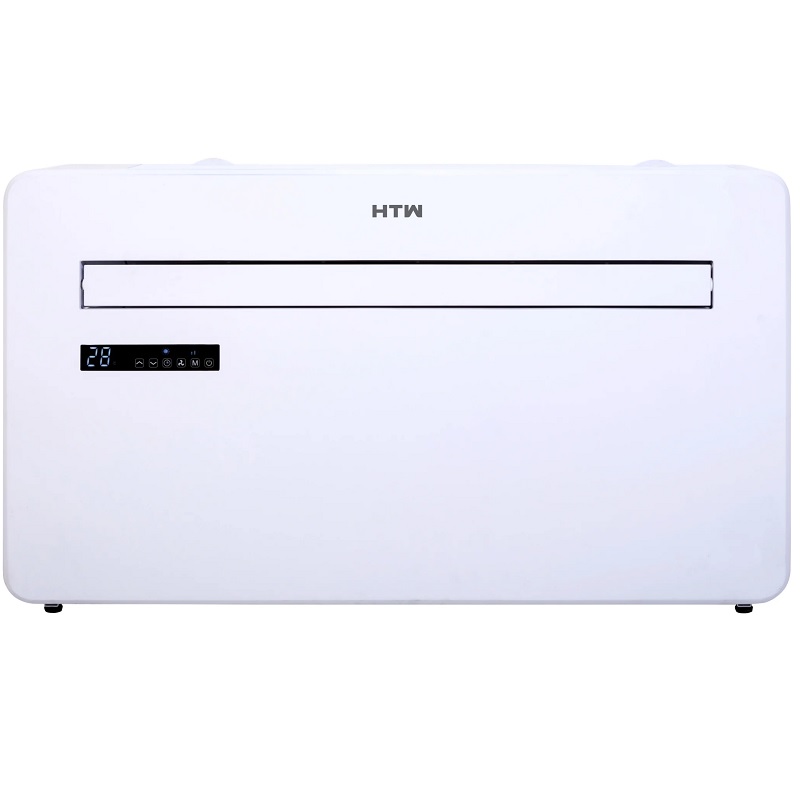

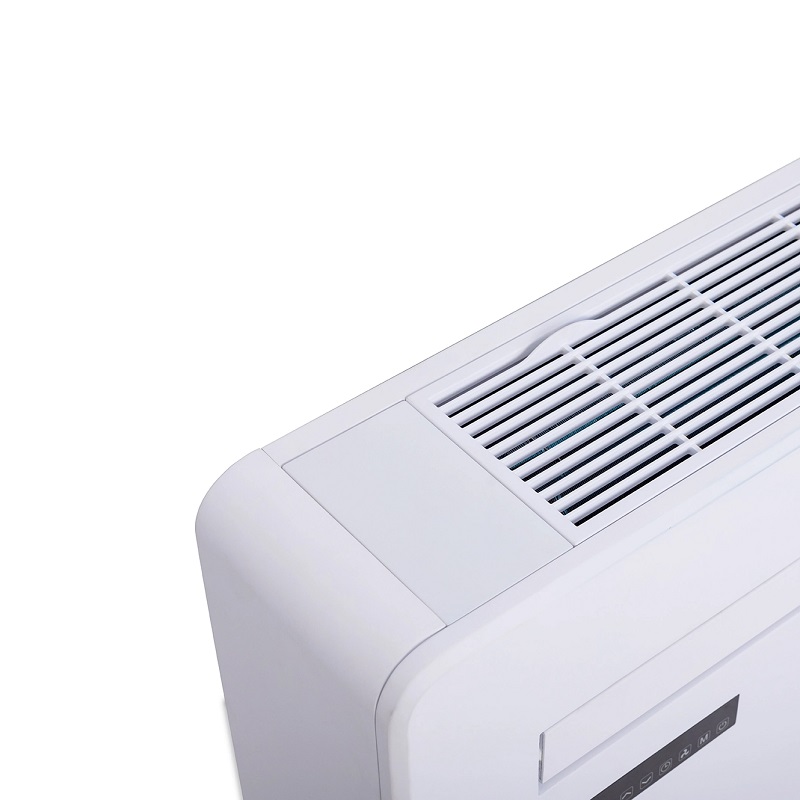

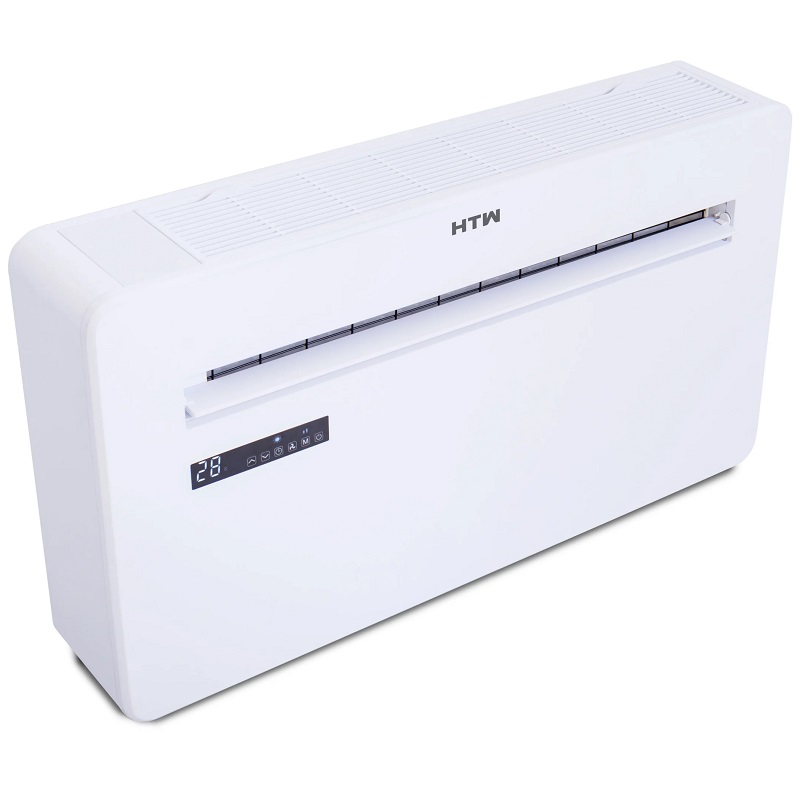

HTW-AAM35DA air conditioning without external unit Monoblock UNIG

HTW-AAM35DA air conditioning without external unit Monoblock UNIG

Maximum comfort in minimum space
UNIG Monoblock air conditioning is the most efficient solution for air conditioning when there is no outdoor space to place split units, or simply for aesthetic reasons.

No outdoor unit.
4 in 1 system, heat-cold-ventilation-dehumidification in the same machine.
DC inverter, by running the compressor continuously, energy savings of up to 50% are achieved compared to conventional equipment.

Low noise level: the fan speed can be adjusted, obtaining a sound of only 39 dB(A).
More environmentally friendly gas, R290.
Elegant and dynamic design.

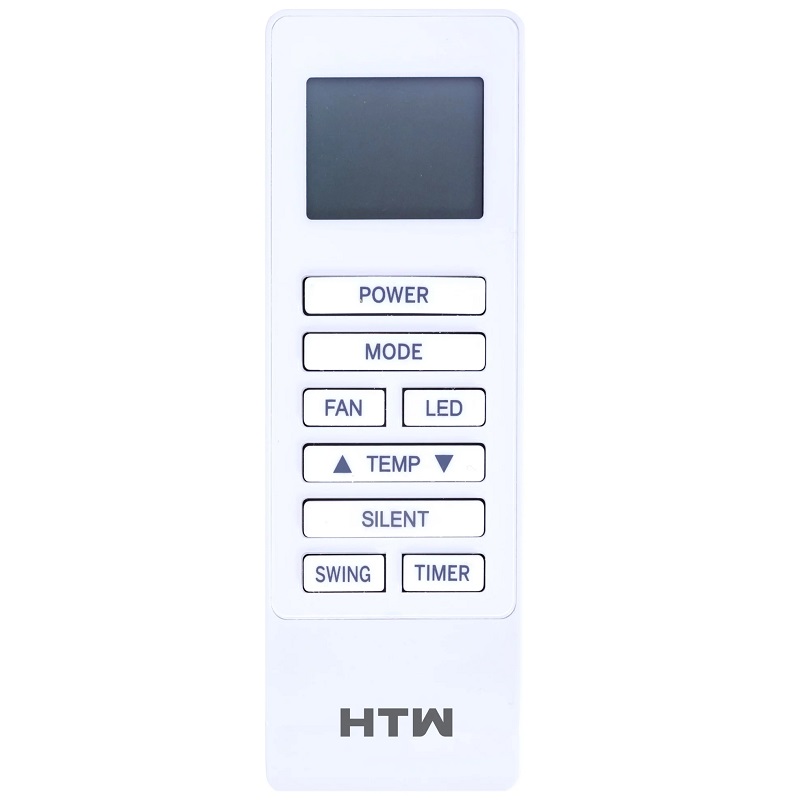

24 Hour Timer: Can be set to turn the device on or off automatically over a 24 hour period.

Capacity 3.5kW
Refrigerator/hr 3,010, 11,900 Btu/hr
Minimum 1000W
Maximum 4100W
Rated power 1350 W
Rated current A 6 EER – 2.6
Energy classification Cold A
Heating power kW 2.93
2,520 Kcal/hour
10,000 Btu/hr
Minimum 800W
Maximum 4100W
Rated power 815 W
Rated current A 4 COP – 3.6
Energy rating Heat A+

Features
Indoor unit
Sound power 60 dB(A)
Sound pressure - Refrig. Max. speed 47 dB(A)
Sound pressure - Silent mode 39 dB(A)
Air flow 520 m3/h
Dehumidification capacity 1.4 L
Estimated air conditioning area 25 ~ 30 m2
Refrigerant type R290
Load 290 gr

Dimensions
indoor unit
Net dimensions (W×H×D) 1000x205x585 mm
Gross dimensions (W×H×D) 1120x335x665 mm
Net weight 43.5 kg
Gross weight 49.5 kg
