Extraction units Soler&Palau OZEO ST 2 RE

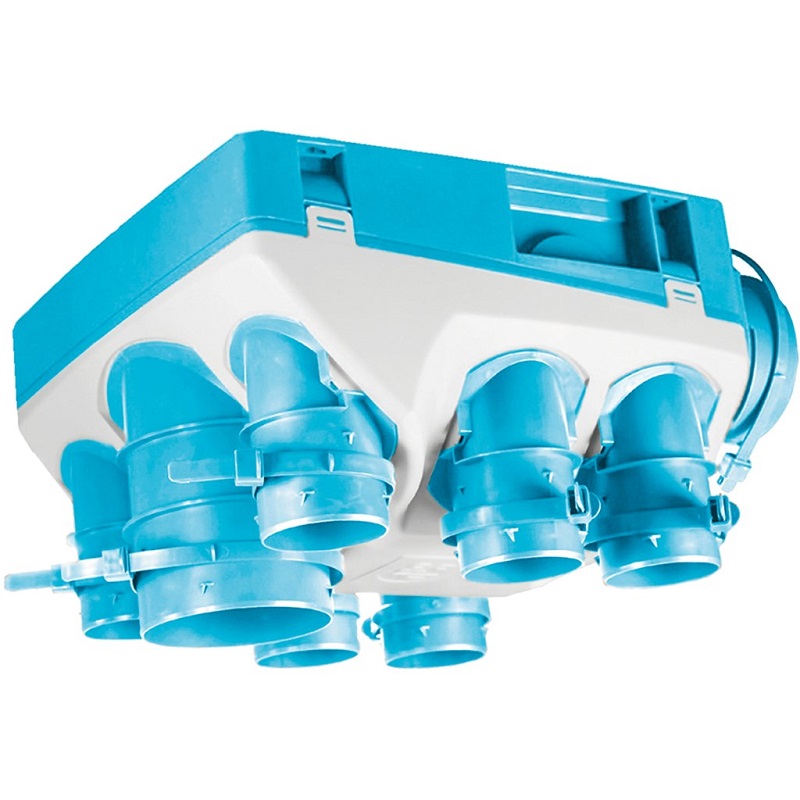

The small centrifugal fan OZEO-H ST2 is designed for centralized ventilation in single-family homes, sanitary rooms, offices, small commercial premises, etc., the fan housing is made of plastic, the housing has 6 inlets with a diameter of 80 mm, one inlet with a diameter of 125 mm and one outlet with a diameter of 125 mm, four inlets are equipped with plugs, the inlets and the outlet can be rotated 90°.
Motor characteristics
Temperature 20°C
Density 1.2 kg/m³
Frequency 50 Hz
Construction
Discharge mouth diameter 160 mm
Voltage 1-230V-50Hz
Maximum absorbed 0.2 A
Protection index IP2X
Class B motor
Operating point
Fan speed (rpm) 1450
Temperate climate CEE (kWh/(m2.year)) -12.7
Cold climate CEE (kWh/(m2.year)) -29.1
Hot climate CEE (kWh/(m2.year)) -3.3
Drive type 1 speed
Maximum flow rate (m3/h) 269
Electrical power absorbed at maximum flow rate (W) 27.3
Sound power level (LWA) 47
Reference flow rate (m3/s) 0.053
Reference pressure difference (Pa) 126
Specific input power (W/m3/h) 0.143
Adjustment factor 1
Control type Manual
Maximum external leakage index for UVU and UVB (%) 7
Annual electricity consumption temperate climate (kWh/a) 179
Weight 4.36 kg
The small centrifugal fan OZEO-H ST2 is designed for centralized ventilation in single-family homes, sanitary rooms, offices, small commercial premises, etc., the fan housing is made of plastic, the housing has 6 inlets with a diameter of 80 mm, one inlet with a diameter of 125 mm and one outlet with a diameter of 125 mm, four inlets are equipped with plugs, the inlets and the outlet can be rotated 90°.
Motor characteristics
Temperature 20°C
Density 1.2 kg/m³
Frequency 50 Hz
Construction
Discharge mouth diameter 160 mm
Voltage 1-230V-50Hz
Maximum absorbed 0.2 A
Protection index IP2X
Class B motor
Operating point
Fan speed (rpm) 1450
Temperate climate CEE (kWh/(m2.year)) -12.7
Cold climate CEE (kWh/(m2.year)) -29.1
Hot climate CEE (kWh/(m2.year)) -3.3
Drive type 1 speed
Maximum flow rate (m3/h) 269
Electrical power absorbed at maximum flow rate (W) 27.3
Sound power level (LWA) 47
Reference flow rate (m3/s) 0.053
Reference pressure difference (Pa) 126
Specific input power (W/m3/h) 0.143
Adjustment factor 1
Control type Manual
Maximum external leakage index for UVU and UVB (%) 7
Annual electricity consumption temperate climate (kWh/a) 179
Weight 4.36 kg
