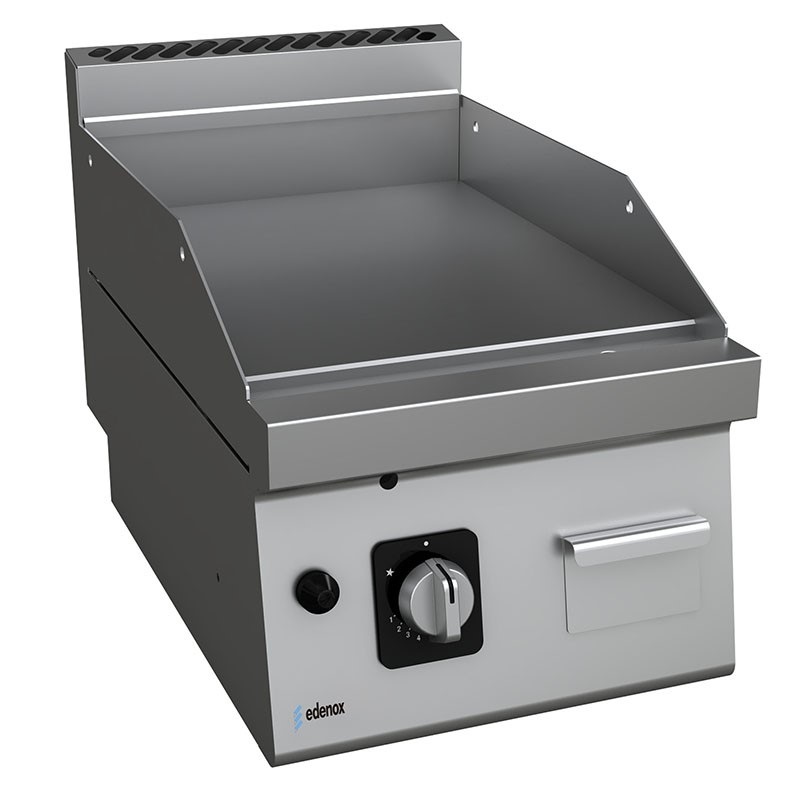

Gas griddles Edenox SPLG-40 E
Made entirely of stainless steel
400 and 600 mm models with smooth, grooved or hard chrome-plated normal cooking surface.
The cooking plates are made of special steel, with high thermal transmission.
Side and rear protection against splashes, equipped with a removable fat collection tray, which facilitates cleaning, the gas models incorporate stainless steel tubular burners with stabilized flame and piezoelectric ignition, controlled by a minimum-maximum type valve, with thermocouple.
The gas models are supplied assembled with natural gas injectors, if the installation is not prepared for this gas, butane/propane gas (LPG) injectors are incorporated inside the package.
In the electric models, heating is produced by armored resistors with a thermostatic adjustment from 120 to 310 ºC.
Voltage of electric models: 230V (3) / 400V (3N) - 50/60 Hz
Heating type: Gas
Gas type: GN
Material type: Iron
Finishing iron: Smooth
Power LPG-GN: 7,500 KWI
Power GC1: 6,750 KWI
Flow City G110: 1,743 M3H
Flow G25.1: 0.860 KGH
Regulated: LPG G30/G31 28-30/37 mbar
Net height (mm) 445 mm
Net width (mm) 650 mm
Net length (mm) 400 mm
Gross/packed weight: 45 kg
Gross/packed height: 600 mm
Gross/packed width: 920 mm
Gross/packed length: 455 mm
