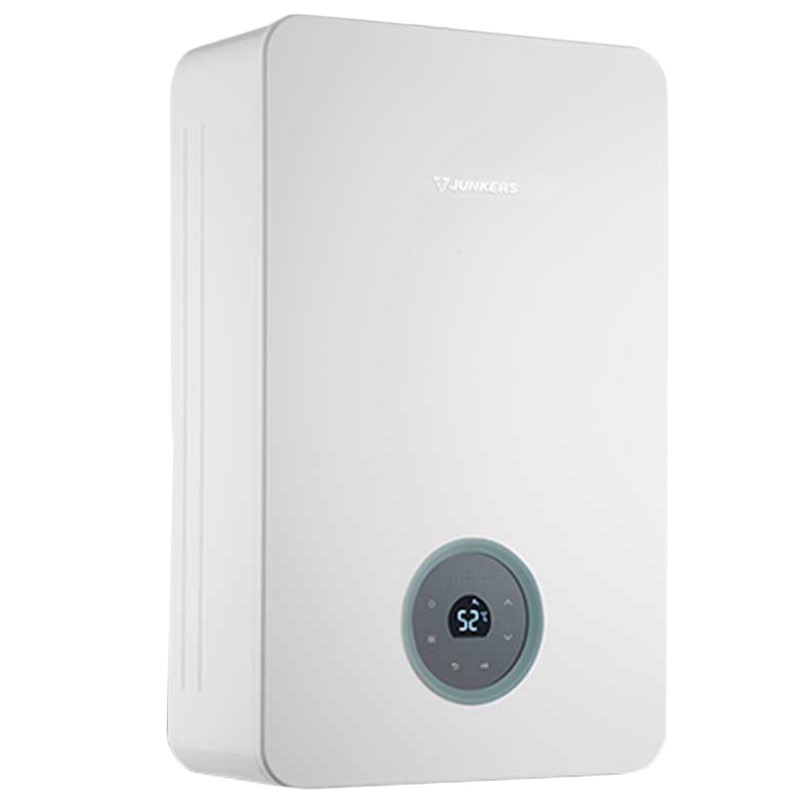

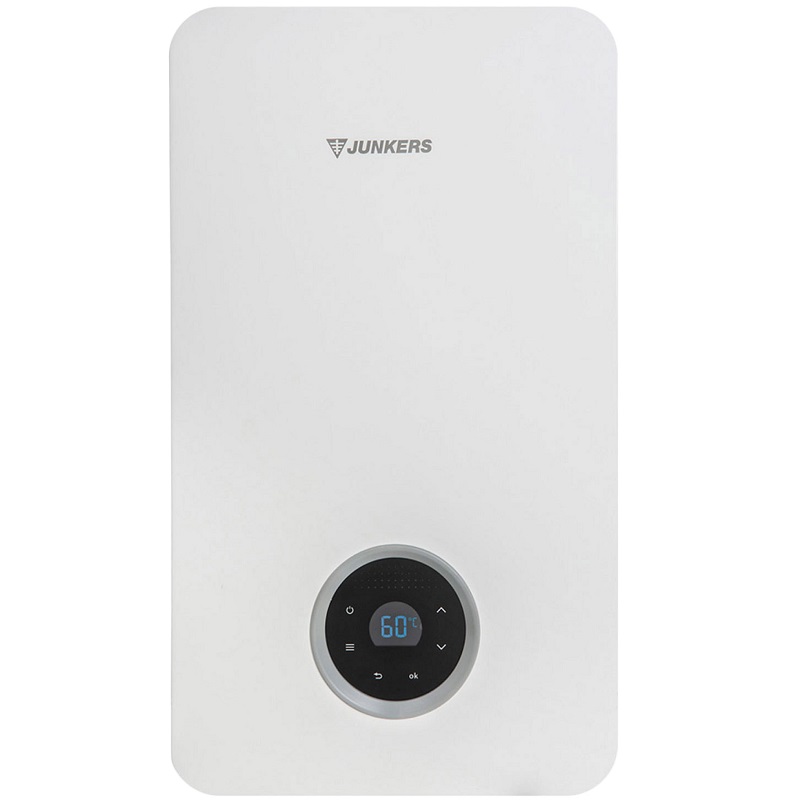

Gas butane water heater WTD12-4AME31

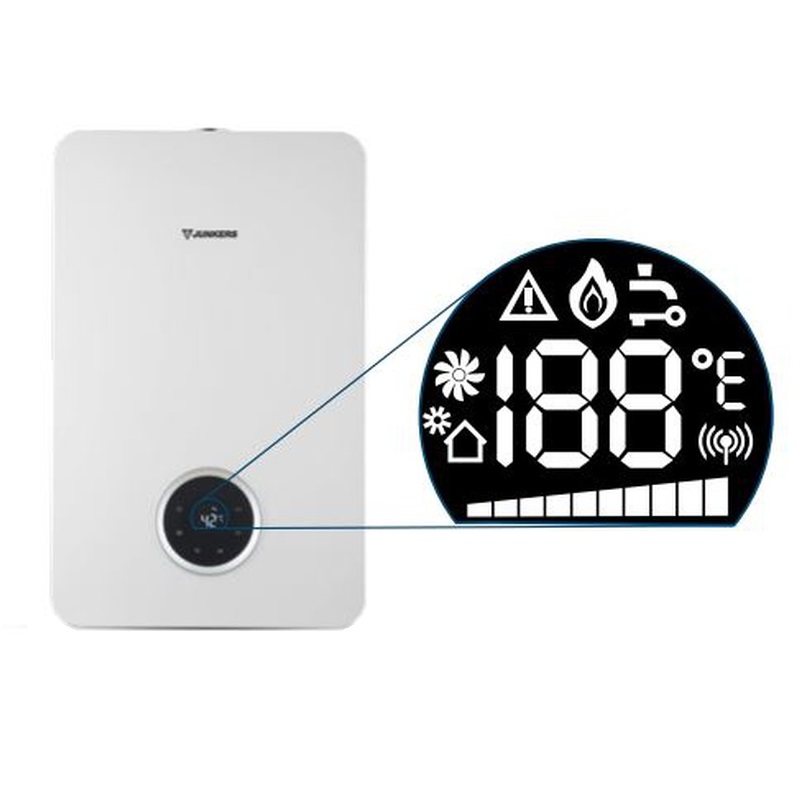

The compact design allows it to be installed in small spaces, and we appreciate its fine and elegant aesthetics, the Hydronext 5700 gas heater has a screen that allows you to control the temperature and all the heating warnings, the new Junkers heater maintains low NOx emissions, thanks to the new Rich-Lean technology incorporated in its burner.
At the same time, our platform offers the Hydronext 5700 model with natural gas, technological innovation Junkers and Bosch have joined forces to offer the most innovative heating appliances on the market, with the aim of covering all domestic hot water needs, thanks to its design, you can carry out the installation and commissioning without major difficulties, thermostatic temperature regulation for maximum savings from the moment you open the tap.
Model WTD12-3AME31
Capacity
Power range 4.1 - 20.7 Kw
Water flow rate 2.8 - 12 l/min
Minimum pressure 0.1 bar
Load profile M
Energy efficiency 7
Hot water production energy class A
Indoor sound power level 60 Db
Temperature rise
Max. water quantity 25 K
Max. domestic hot water quantity produced 12 l/m
Min. domestic hot water quantity produced 2.4 l/m

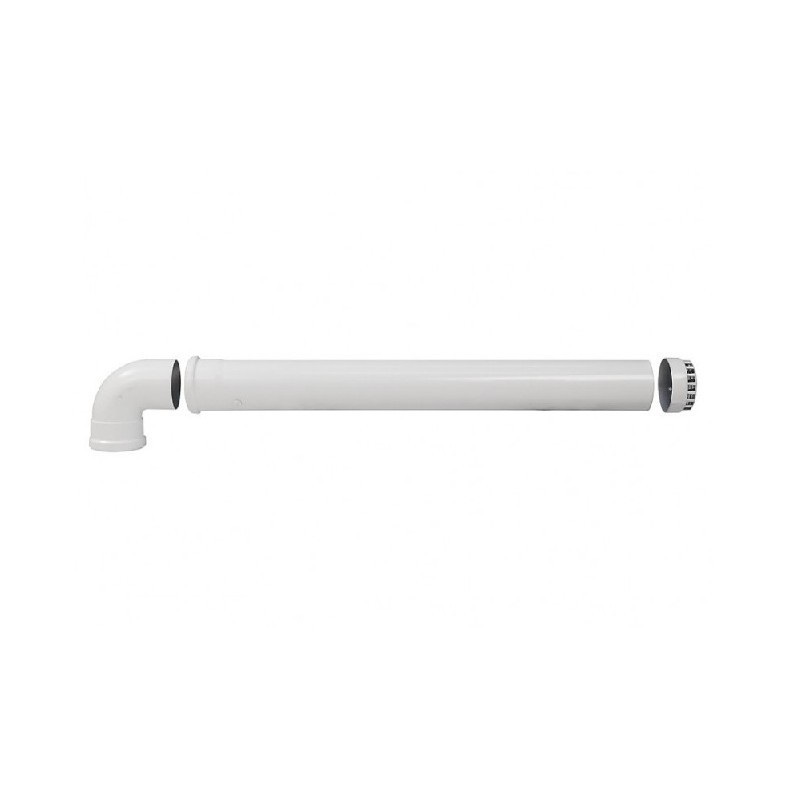

Flue outlet 110 mm
Gas connection G 1/2
Max. DHW nominal heating output 20.7 kW
Min. domestic hot water nominal heating capacity 4.1 Kw
Power consumption 39W
Gas type Butane gas 31
Dimensions (H x W x D) mm 575 x 335 x 180
Weight 12.4 kg
